Stampede 4X4 BL-2s 67154-4
On this page you will find the complete exploded diagram of the Traxxas Stampede 4X4 BL-2s 67154-4 All parts of the vehicle are clearly shown so you can easily see how the Stampede 4X4 BL-2s is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Stampede 4X4 BL-2s

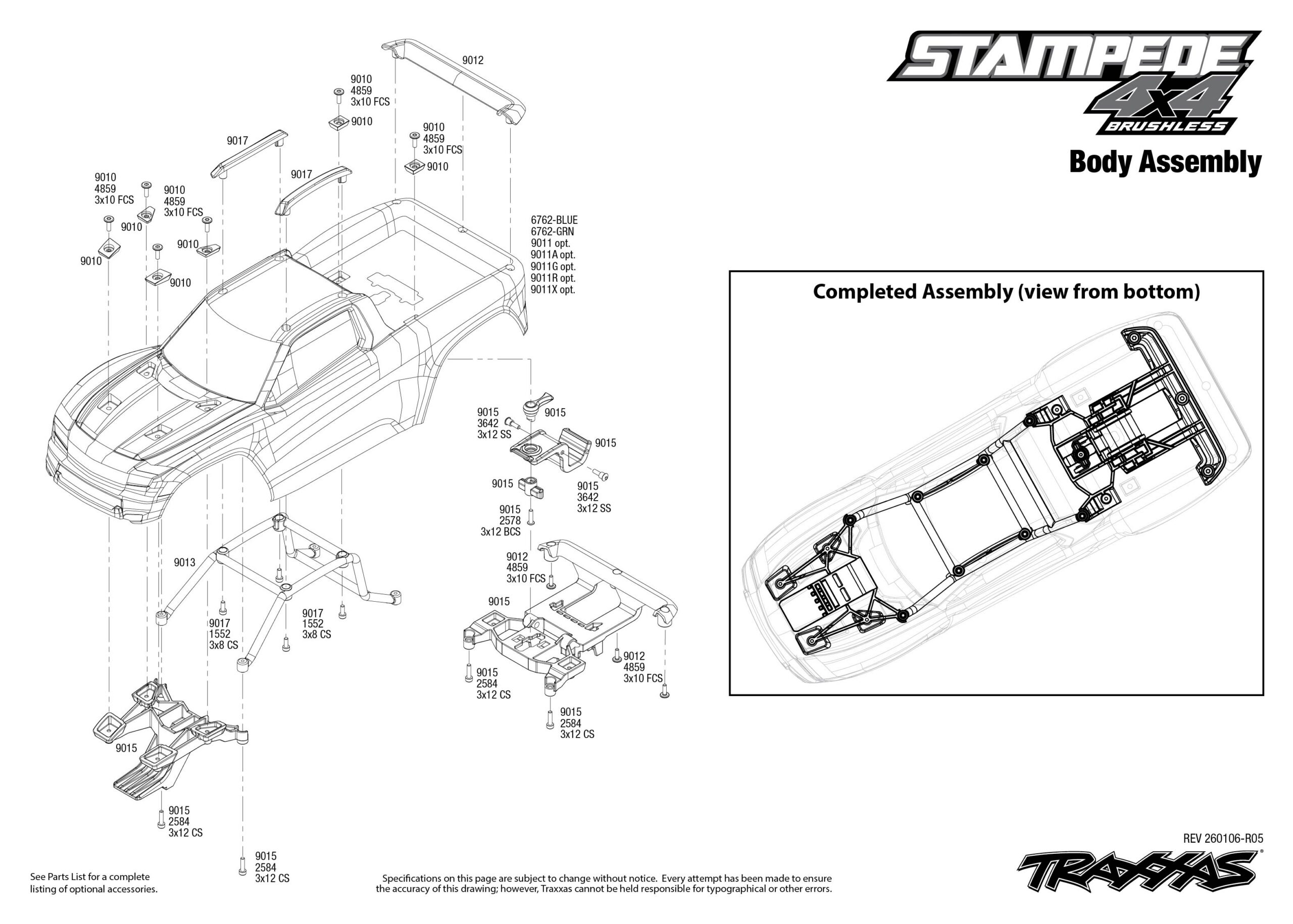

Stampede 4X4 BL-2s (67154-4) Body Assembly Exploded View
stampede-4×4-bl-2s-67154-4

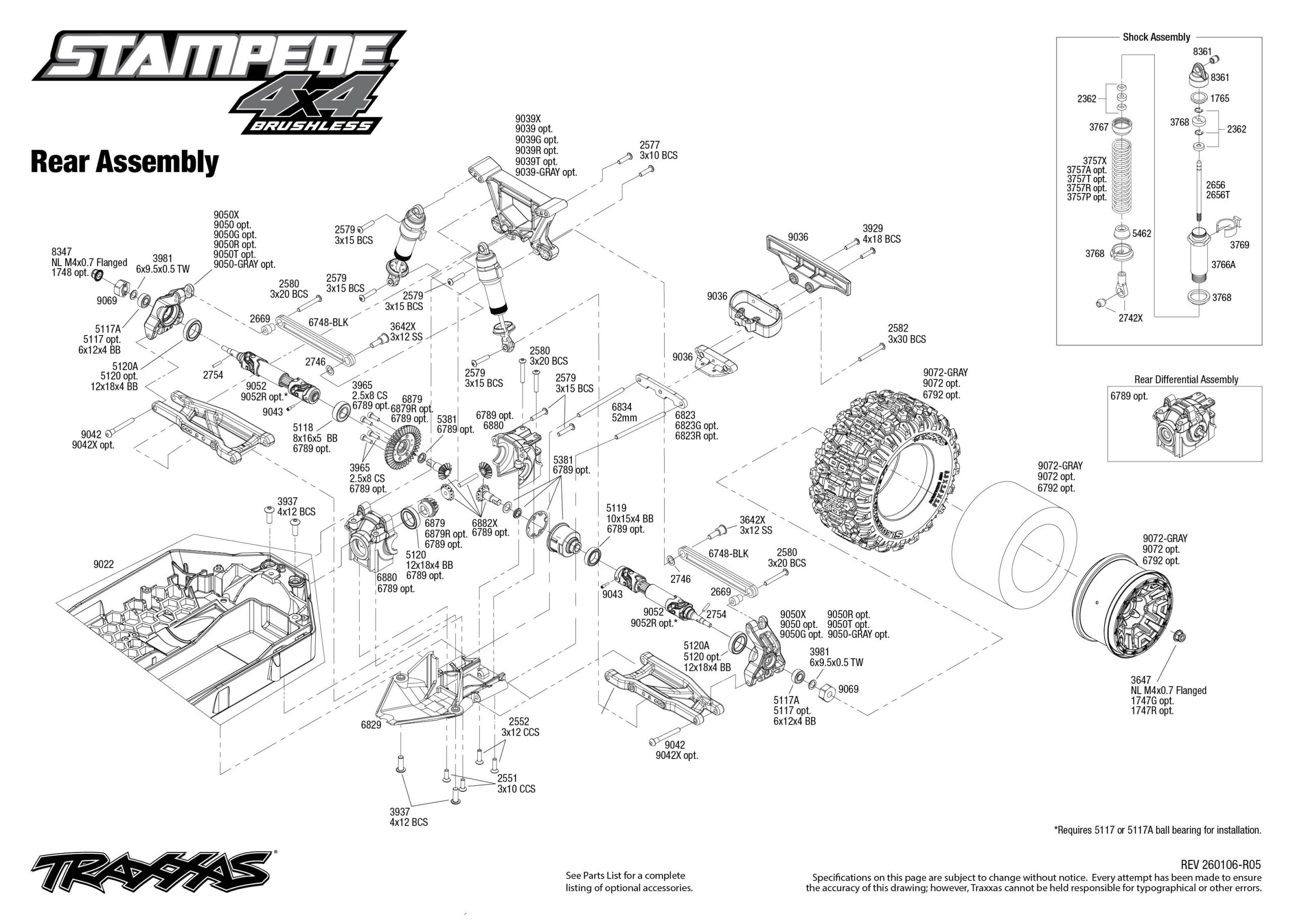

Stampede 4X4 Brushless (67154-4) Rear Assembly Exploded View
stampede-4×4-bl-2s-67154-4
Stampede 4X4 Brushless (67154-4) Driveshafts Assembly Exploded View
stampede-4×4-bl-2s-67154-4

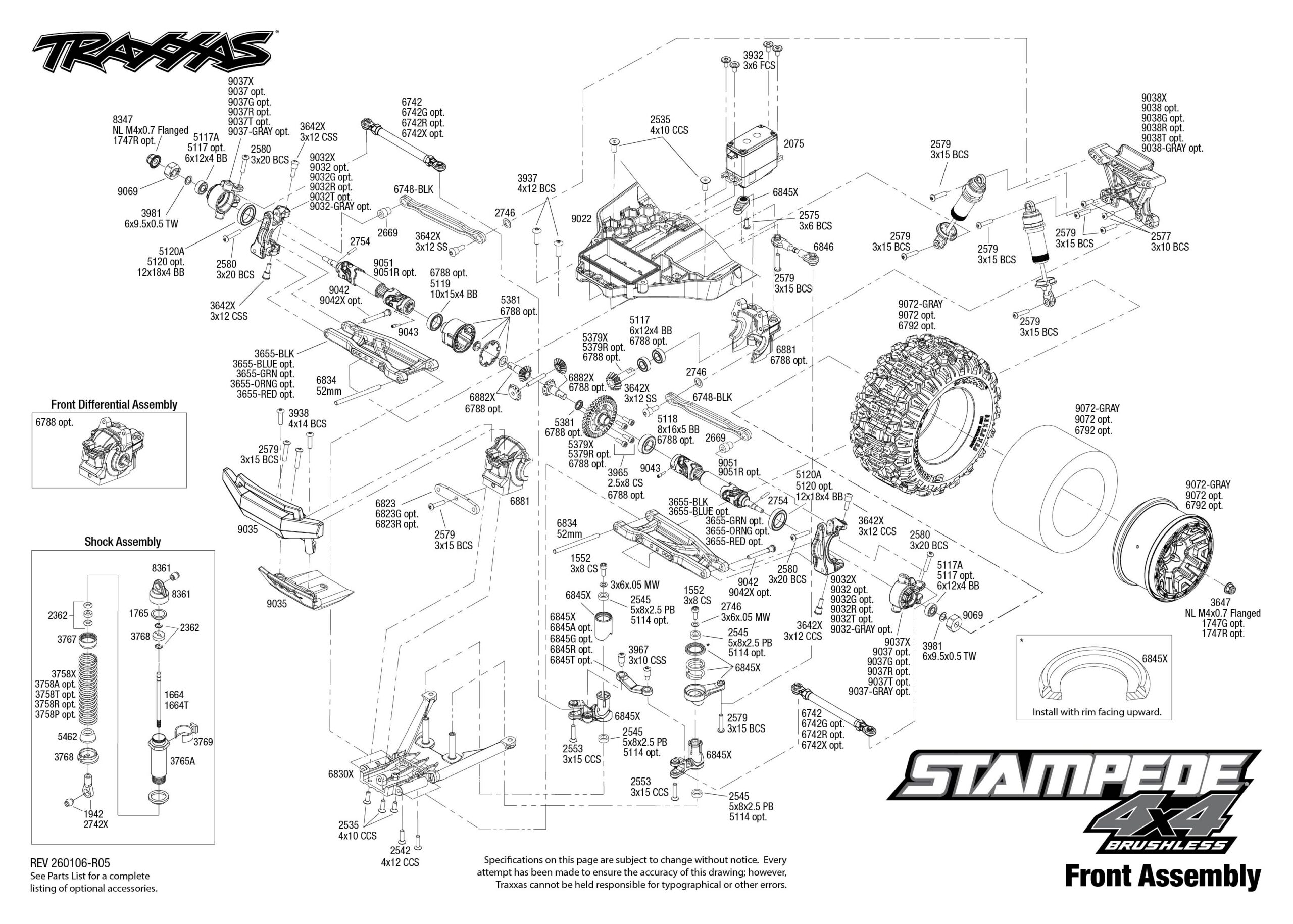

Stampede 4X4 Brushless (67154-4) Front Assembly Exploded View
stampede-4×4-bl-2s-67154-4

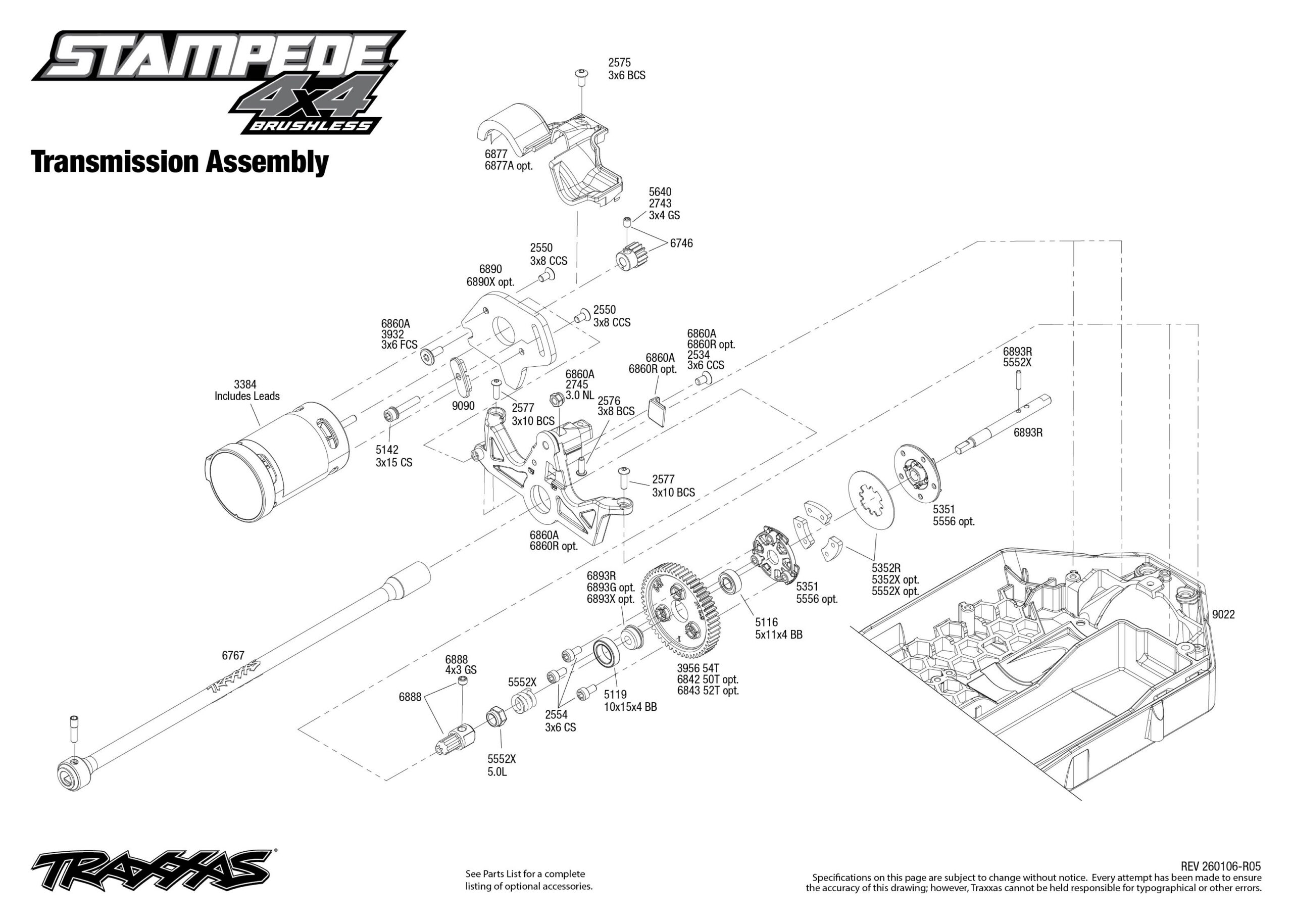

Stampede 4X4 Brushless (67154-4) Transmission Assembly Exploded View
stampede-4×4-bl-2s-67154-4

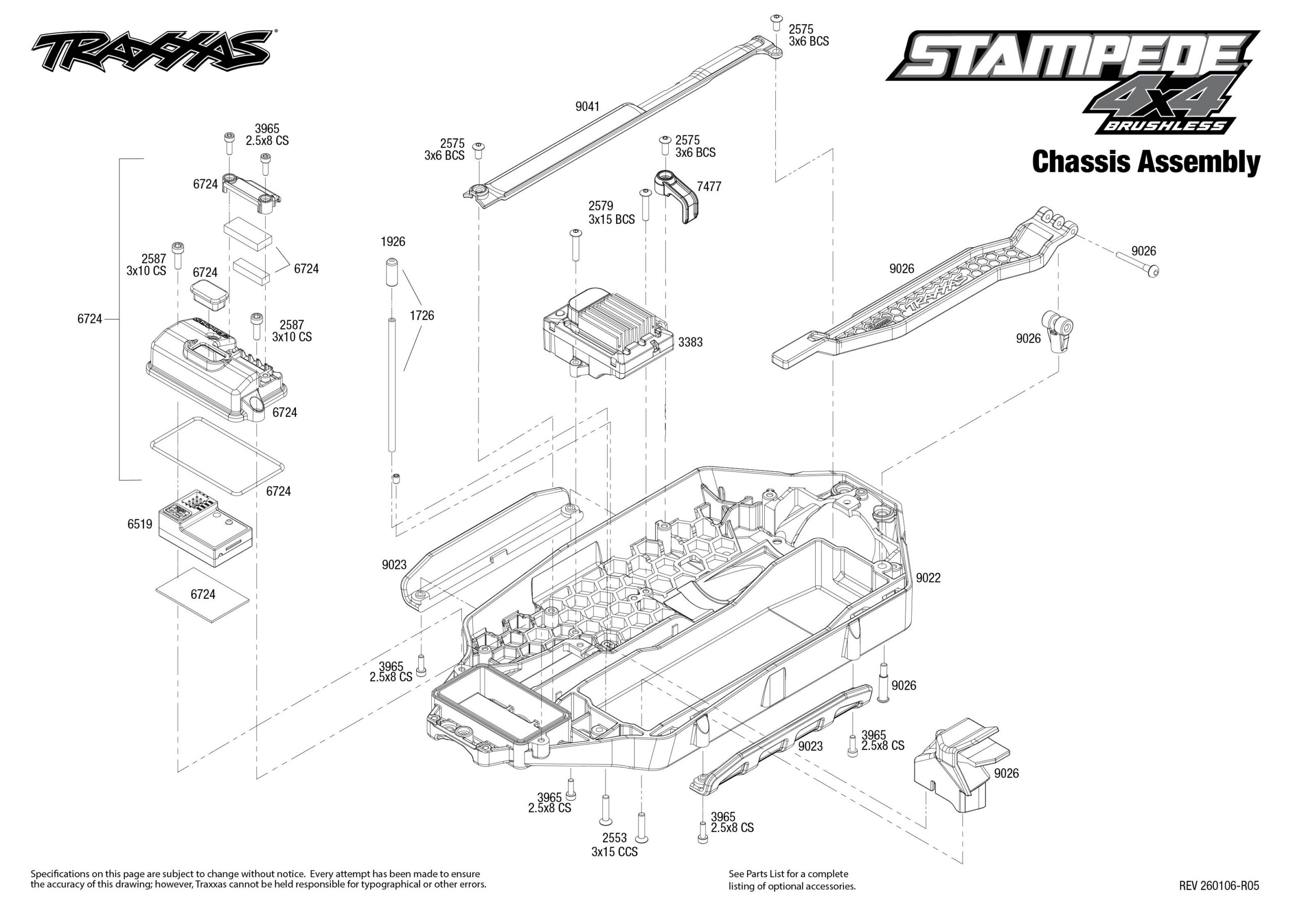

Stampede 4X4 Brushless (67154-4) Chassis Assembly Exploded View
stampede-4×4-bl-2s-67154-4
