Stampede 2WD BL-2s 36354-4
On this page you will find the complete exploded diagram of the Traxxas Stampede 2WD BL-2s 36354-4. All parts of the vehicle are clearly shown so you can easily see how the Stampede 2WD BL-2s is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Stampede 2WD BL-2s.

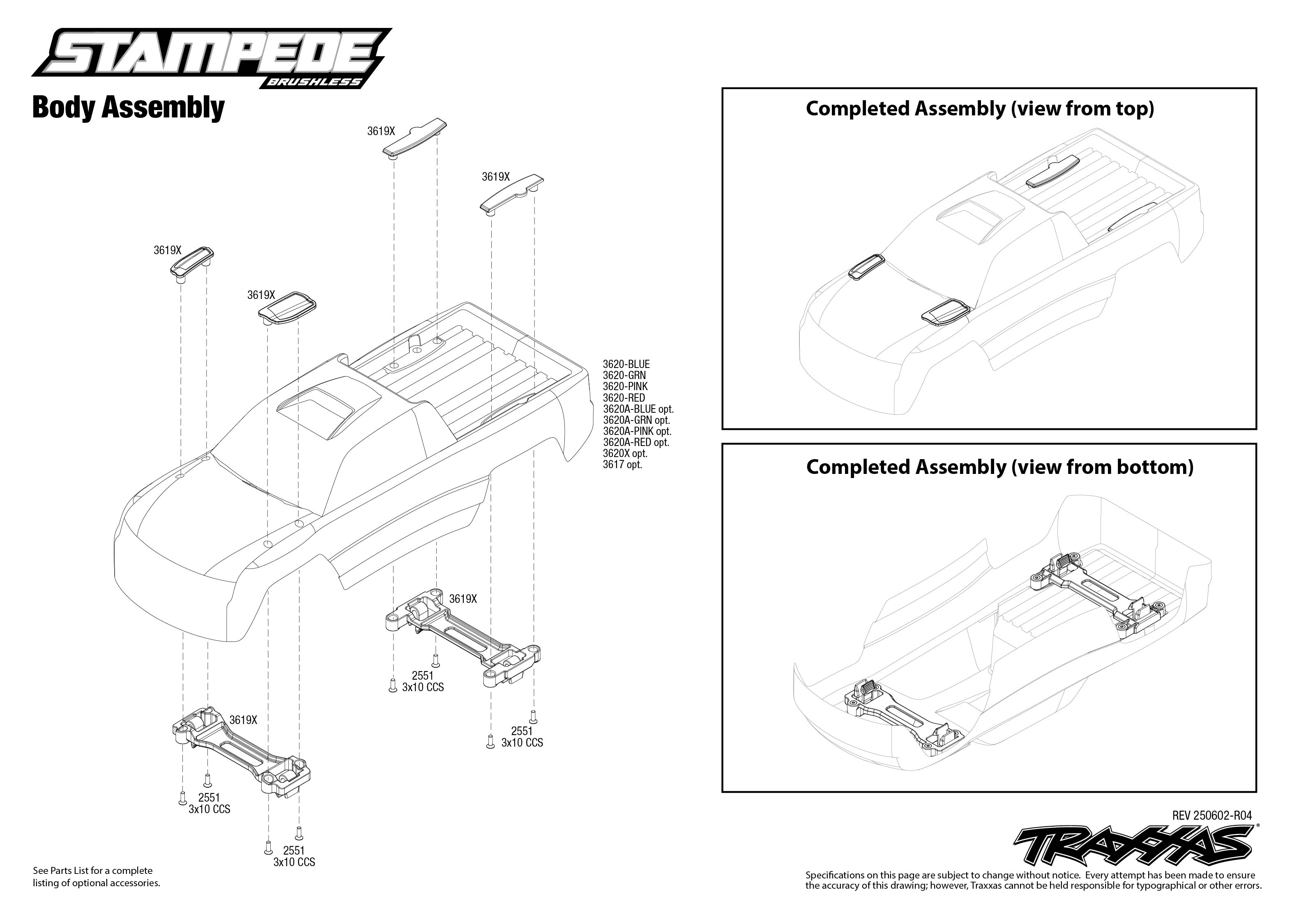

Stampede Brushless (36354-4) Body Assembly Exploded View
stampede-2wd-bl-2s-36354-4

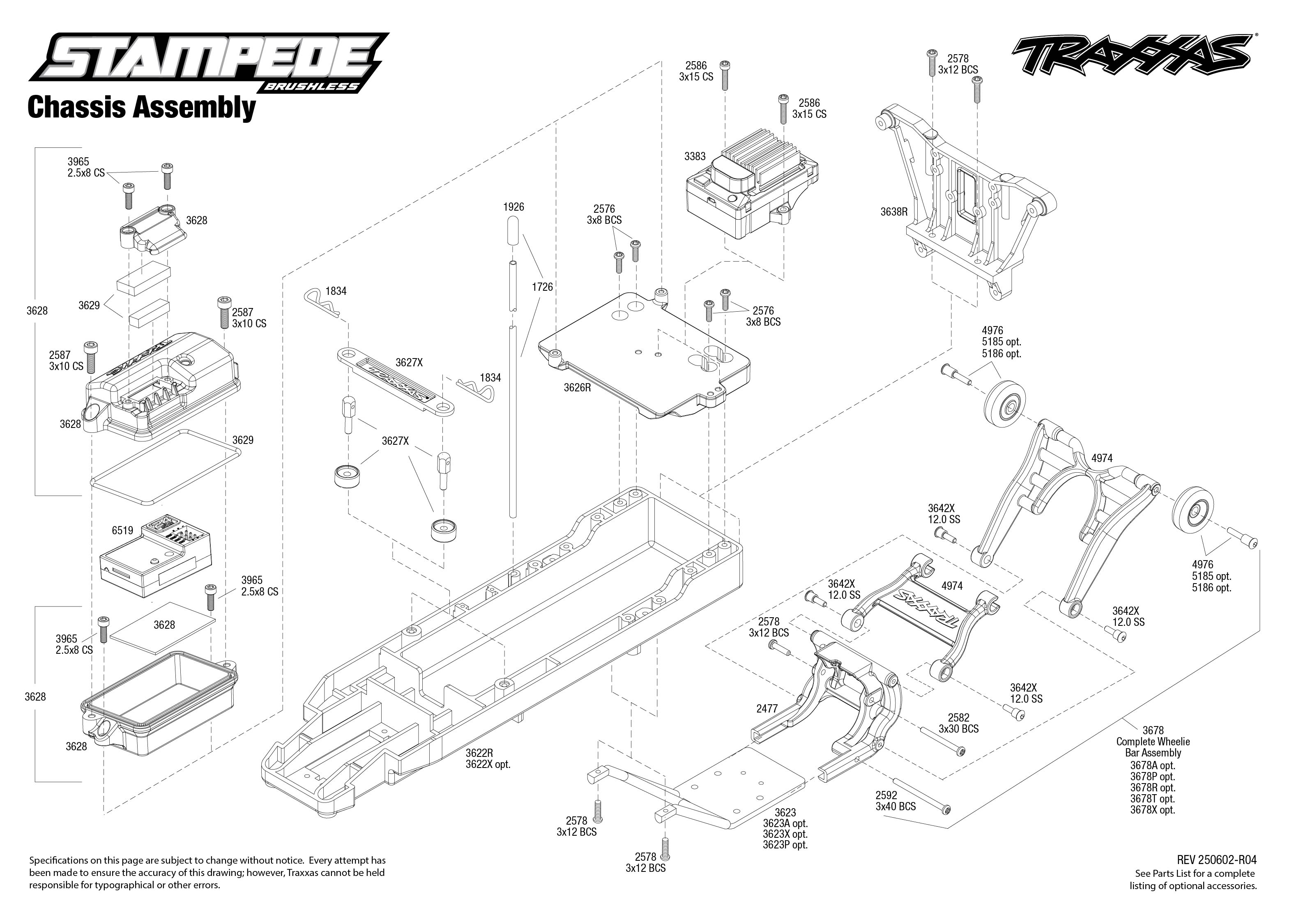

Stampede Brushless (36354-4) Chassis Assembly Exploded View
stampede-2wd-bl-2s-36354-4

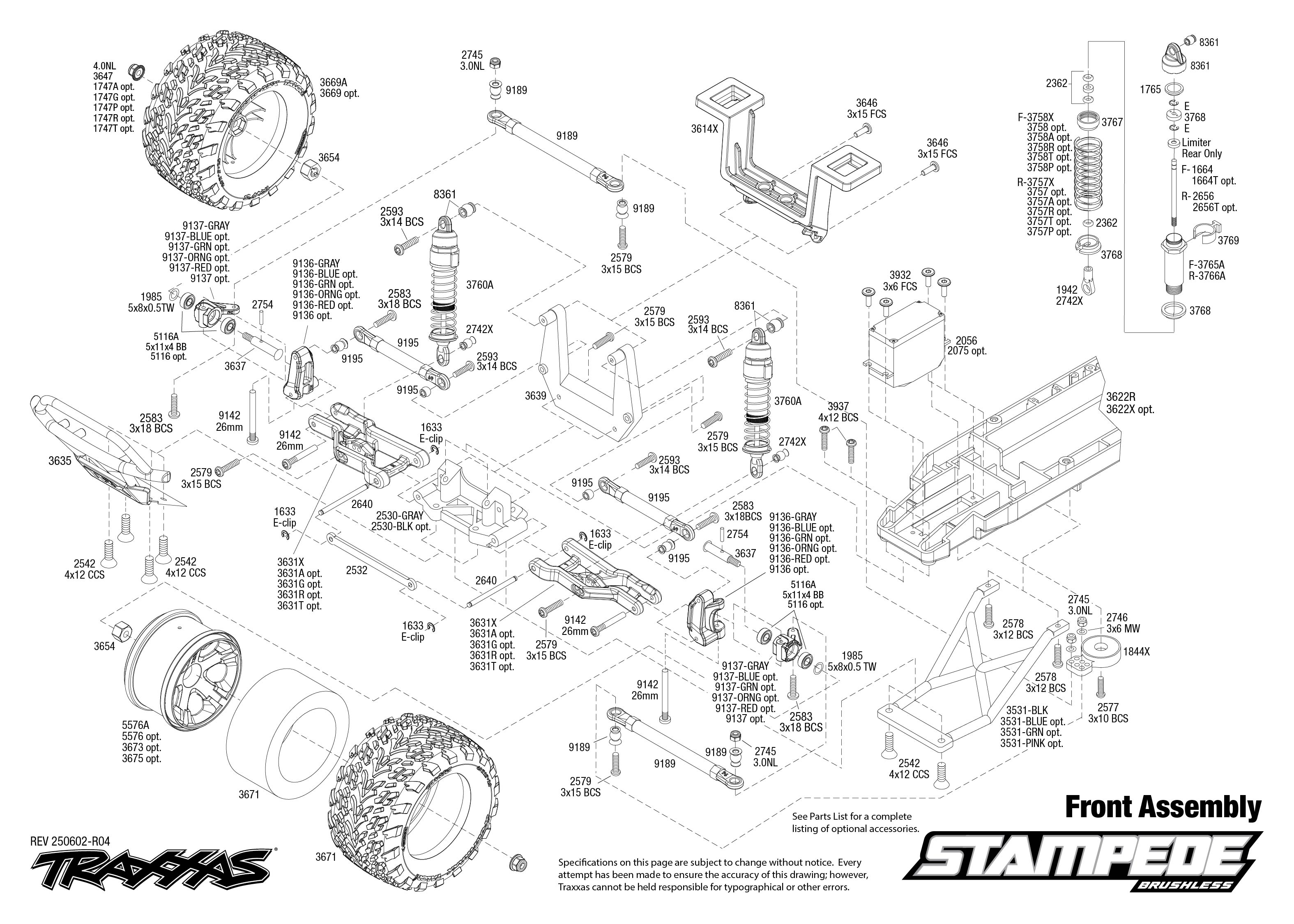

Stampede Brushless (36354-4) Front Assembly Exploded View
stampede-2wd-bl-2s-36354-4

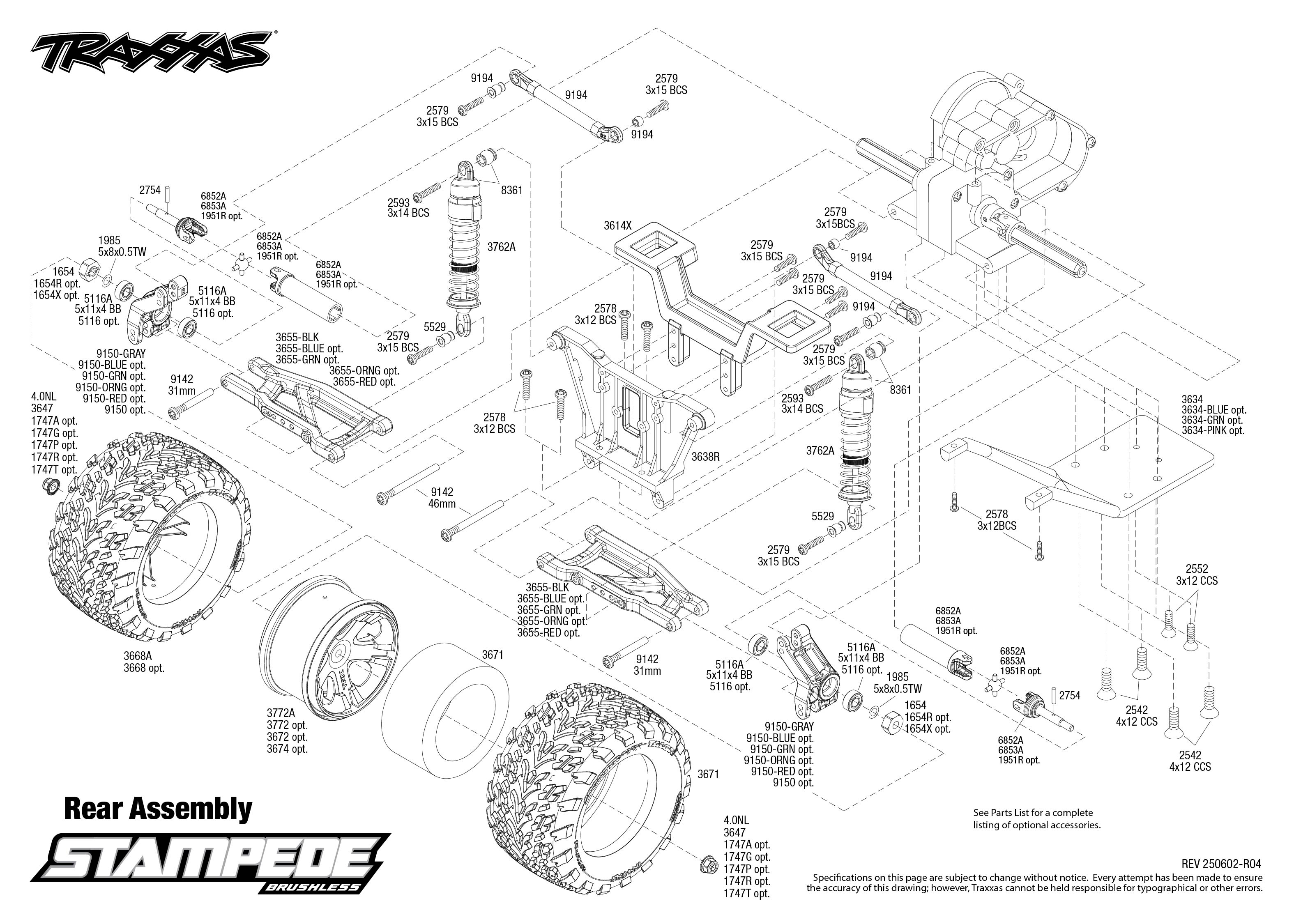

Stampede Brushless (36354-4) Rear Assembly Exploded View
stampede-2wd-bl-2s-36354-4

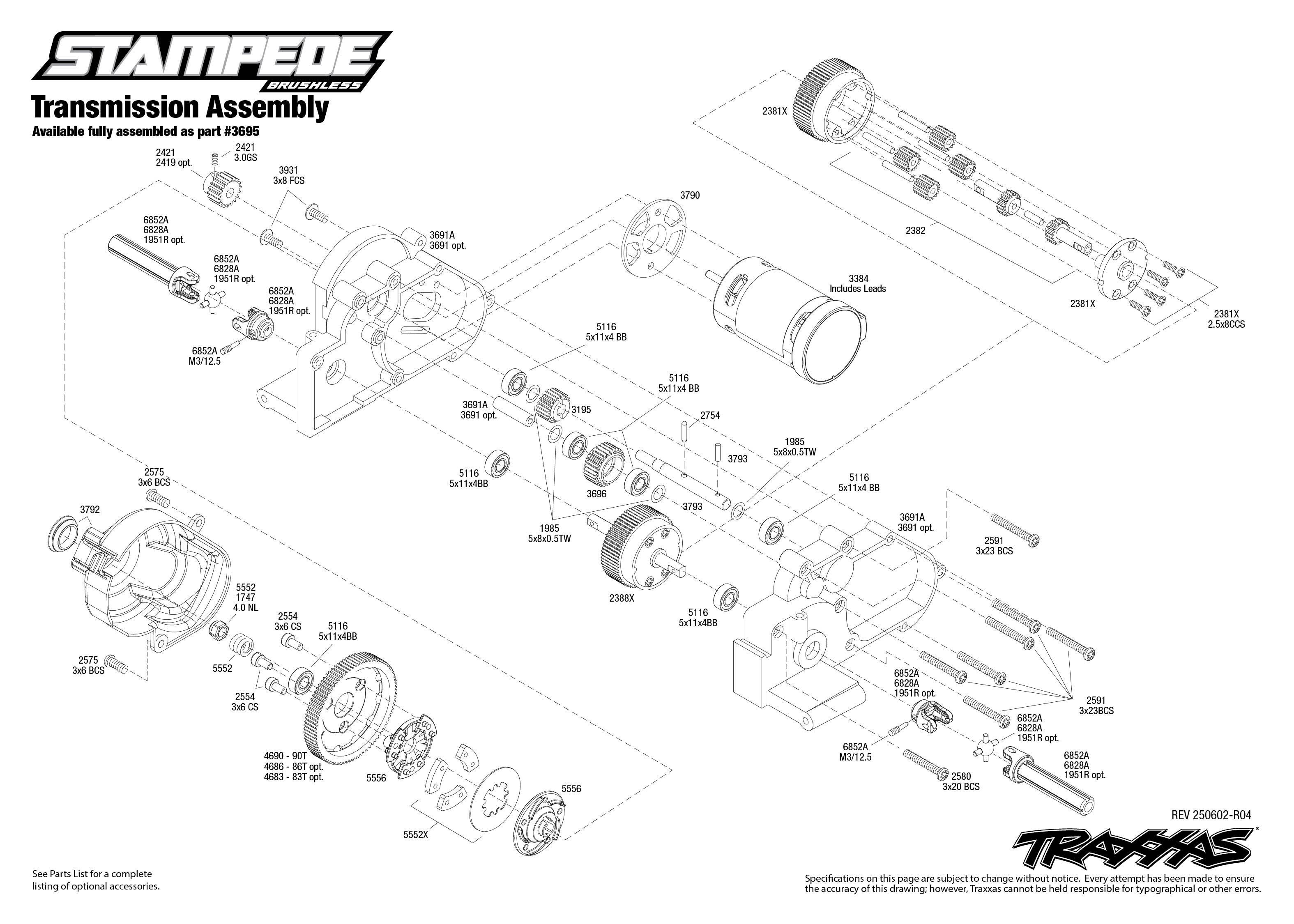

Stampede Brushless (36354-4) Transmission Assembly Exploded View
stampede-2wd-bl-2s-36354-4
