Slash XL-5 2WD 58034-1 oud
On this page you will find the complete exploded diagram of the Traxxas Slash XL-5 2WD 58034-1 All parts of the vehicle are clearly shown so you can easily see how the Slash XL-5 2WD 58034-1 is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Slash XL-5 2WD 58034-1

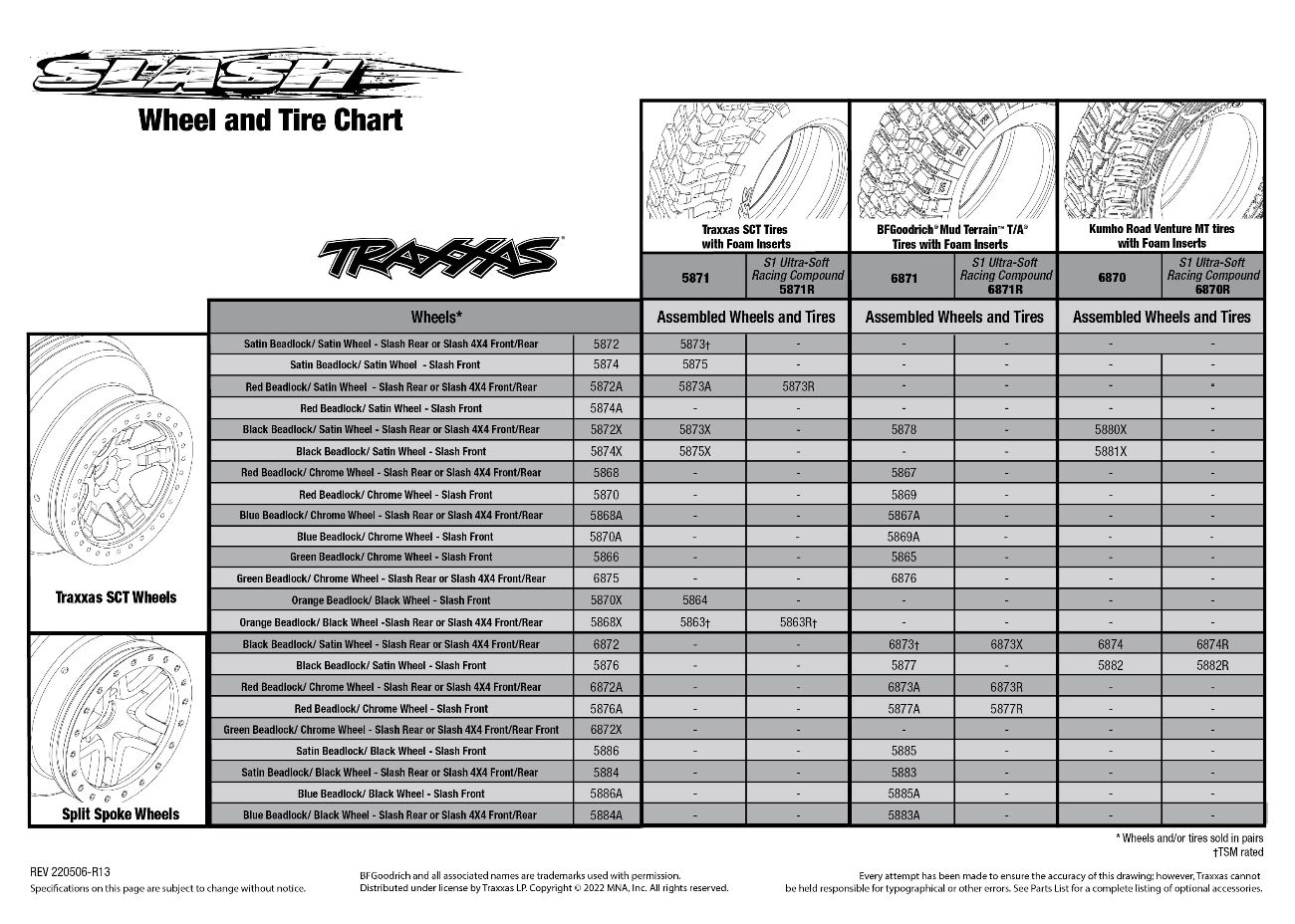

Slash (58034-1) Tire Chart
slash-xl-5-2wd-58034-1-oud

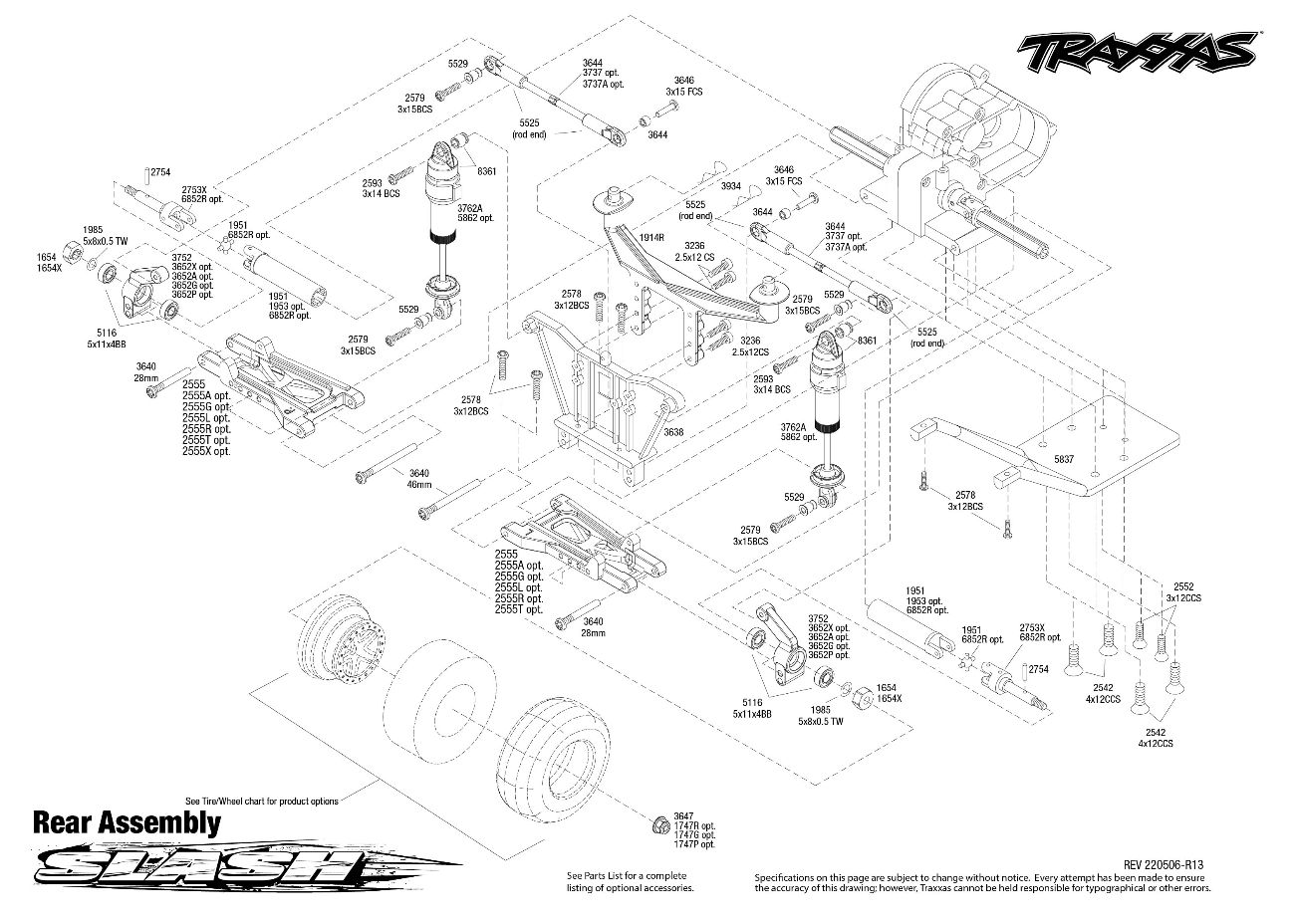

Slash (58034-1) Rear Assembly Exploded View
slash-xl-5-2wd-58034-1-oud

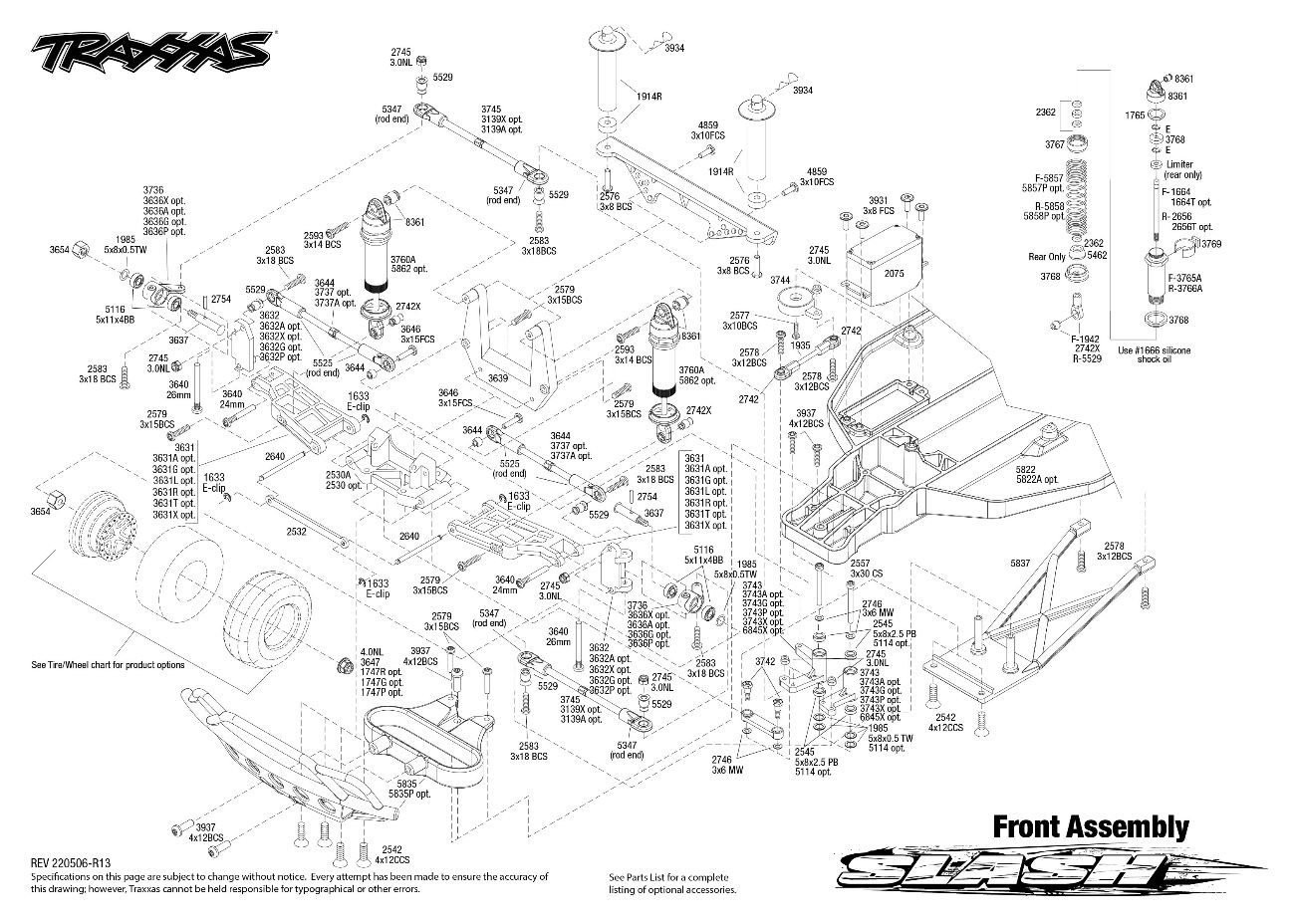

Slash (58034-1) Front Assembly Exploded View
slash-xl-5-2wd-58034-1-oud

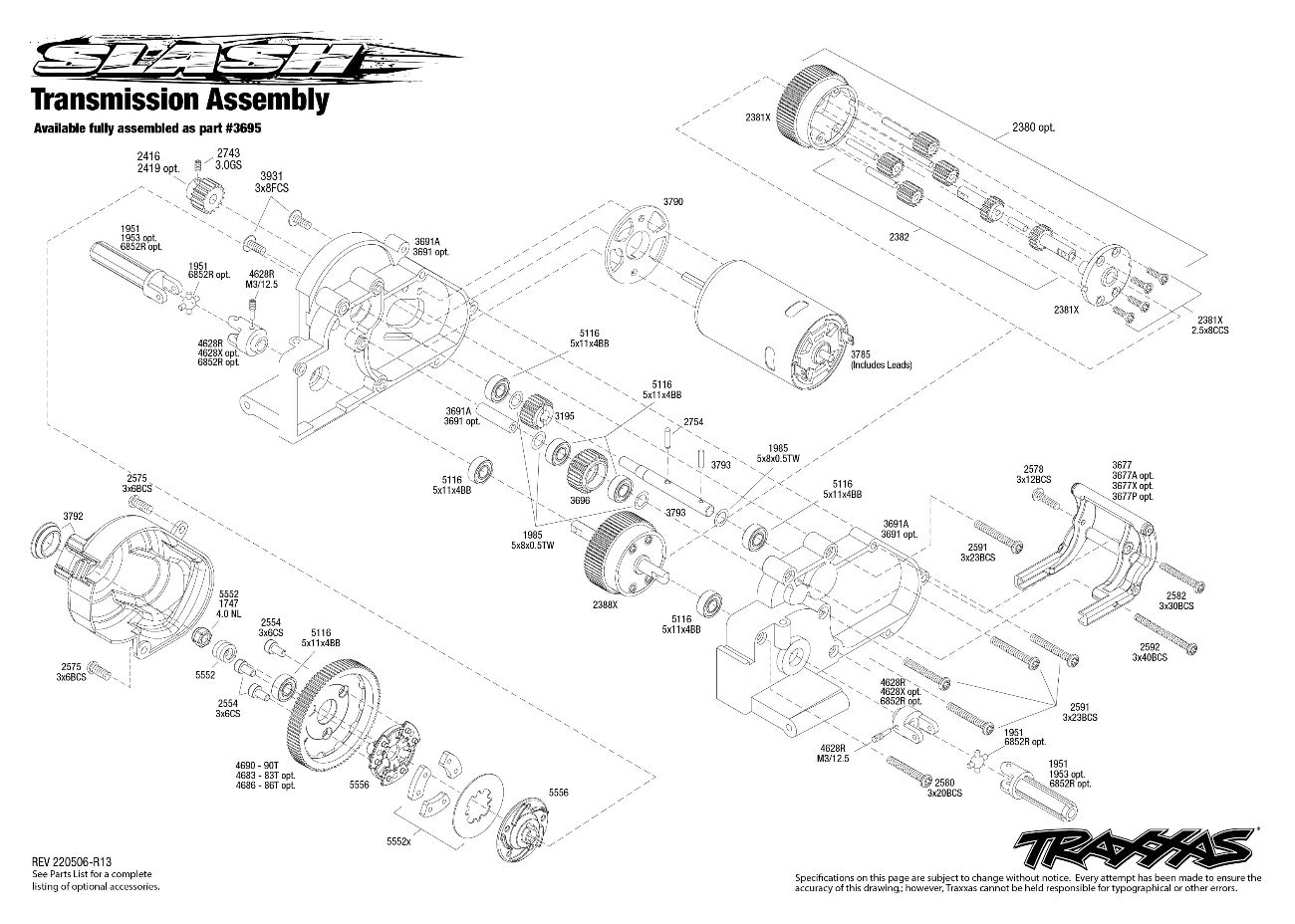

Slash (58034-1) Transmission Assembly Exploded View
slash-xl-5-2wd-58034-1-oud

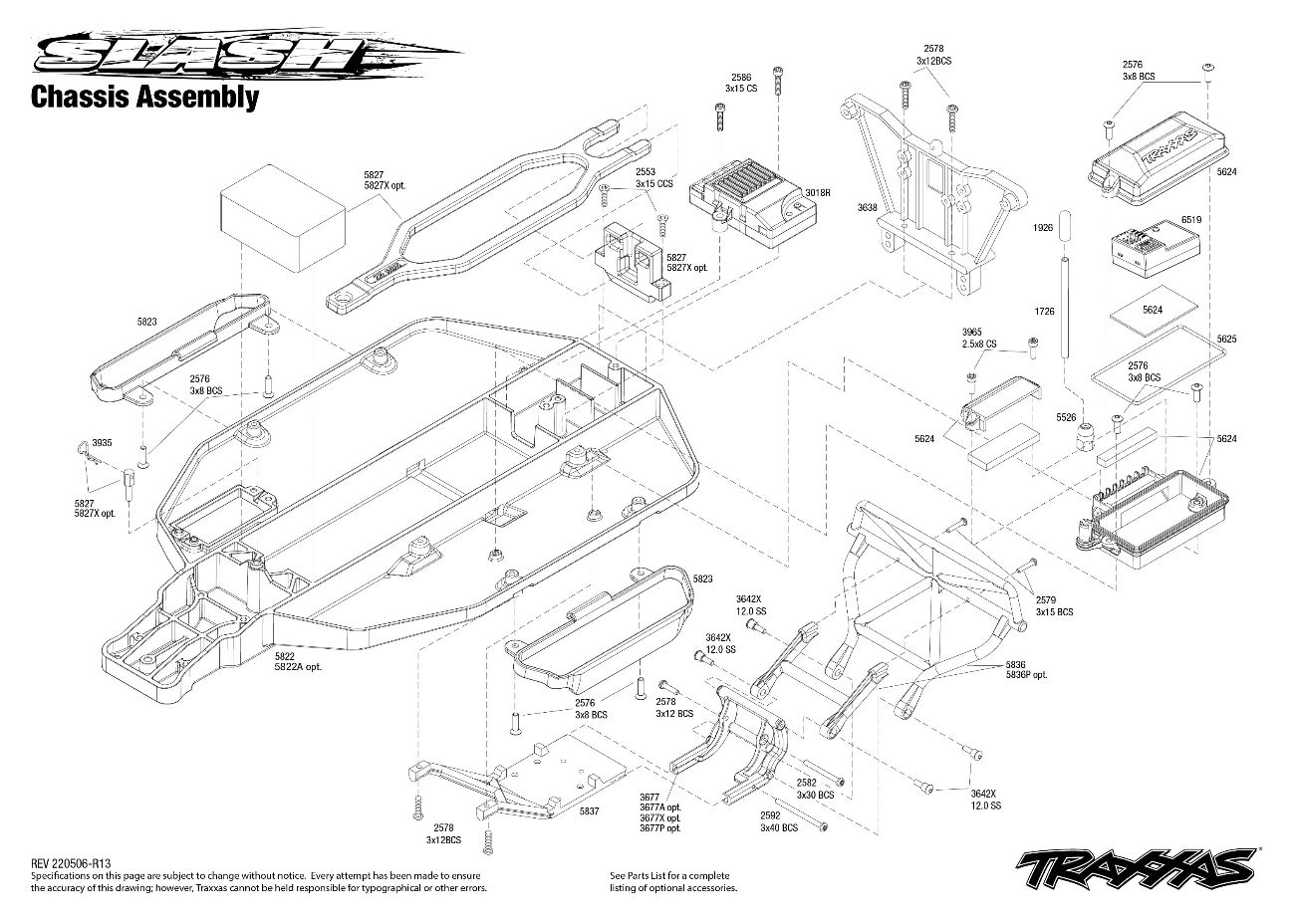

Slash (58034-1) Chassis Assembly Exploded View
slash-xl-5-2wd-58034-1-oud
