Slash 4X4 BL-2s 68154-4
On this page you will find the complete exploded diagram of the Traxxas Slash 4X4 BL-2s 68154-4 All parts of the vehicle are clearly shown so you can easily see how the Slash 4X4 BL-2s is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Slash 4X4 BL-2s

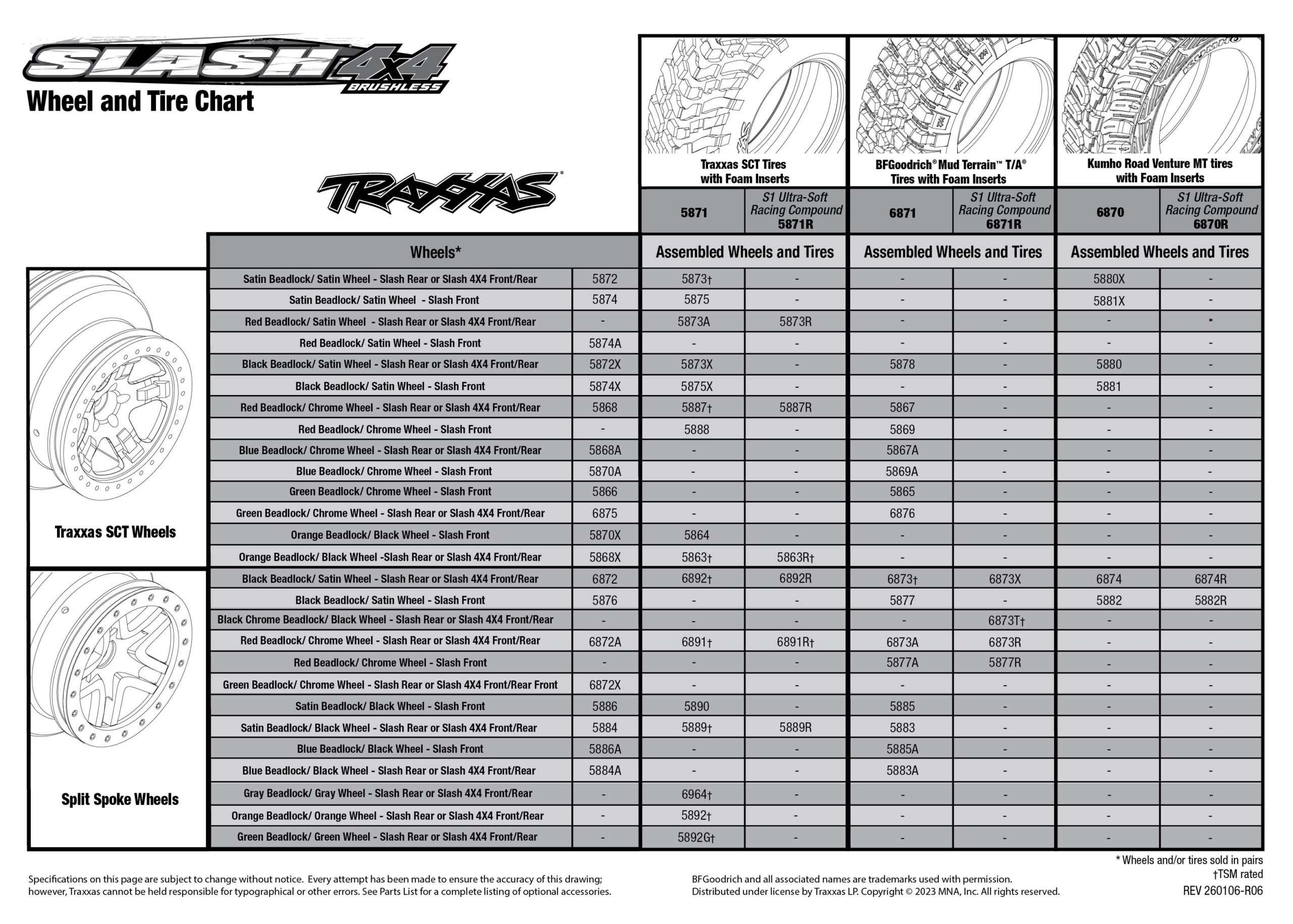

Slash 4X4 Brushless (68154-4) Tire Chart
slash-4×4-bl-2s-68154-4

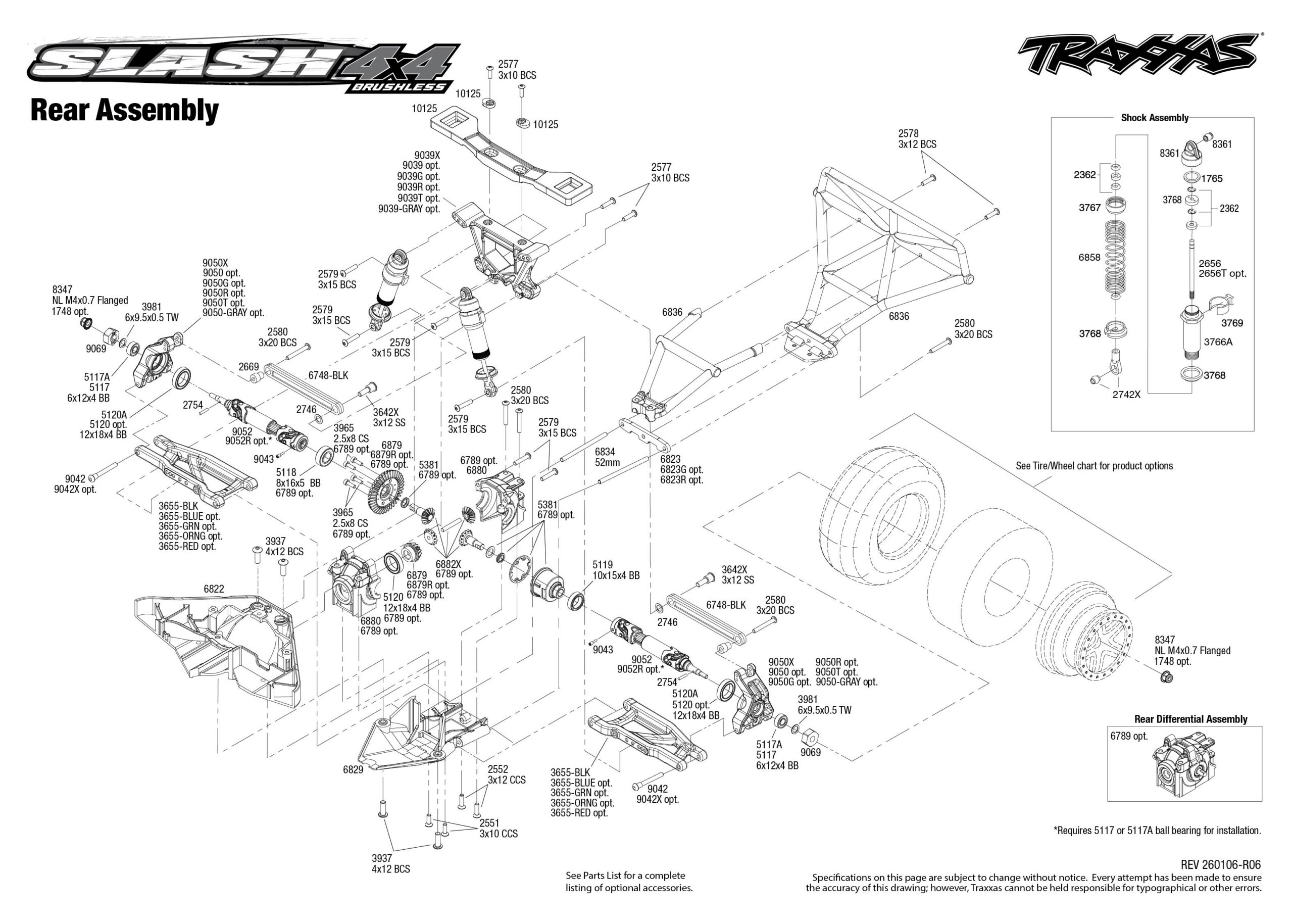

Slash 4X4 Brushless (68154-4) Rear Assembly Exploded View
slash-4×4-bl-2s-68154-4

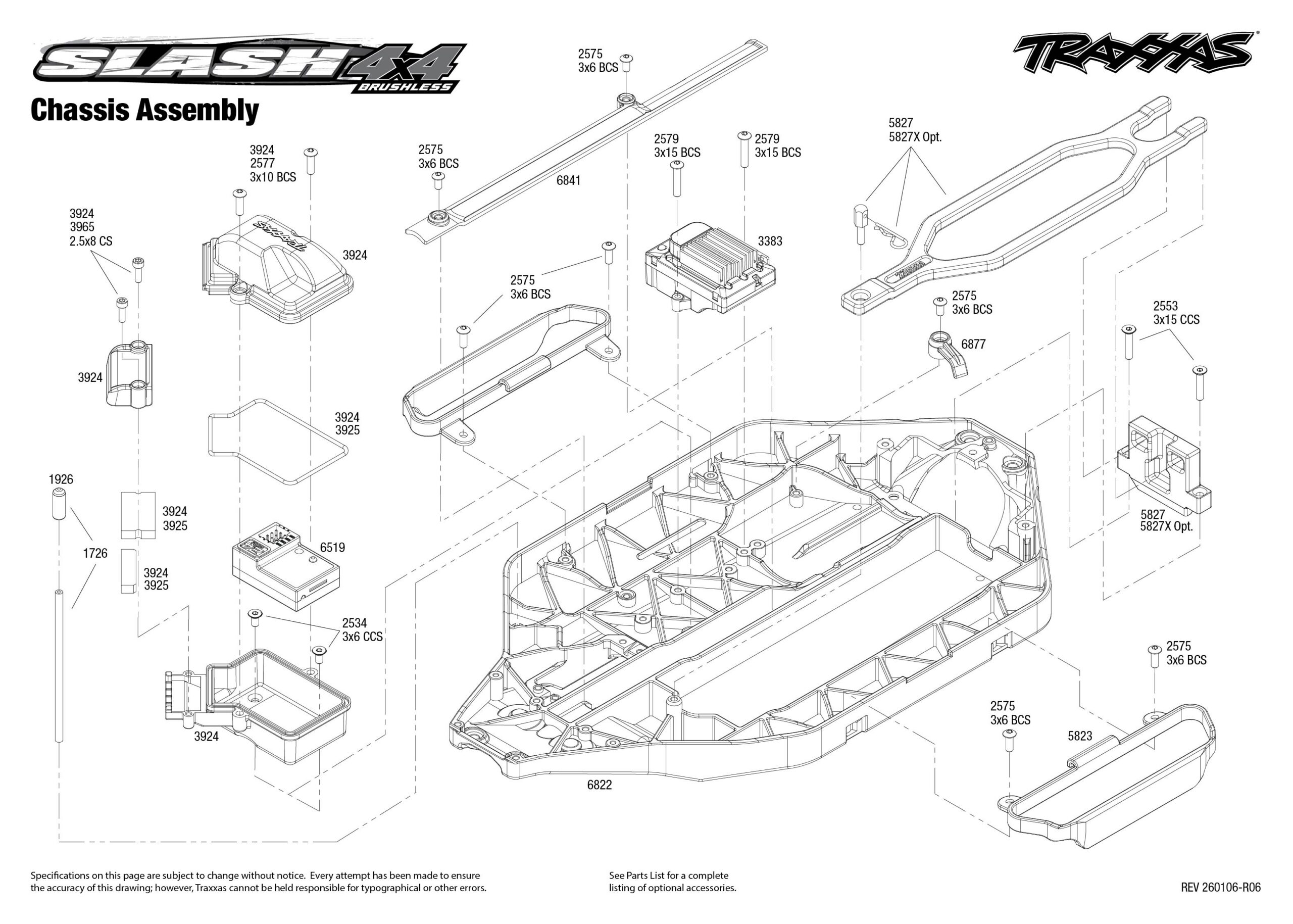

Slash 4X4 Brushless (68154-4) Chassis Assembly Exploded View
slash-4×4-bl-2s-68154-4

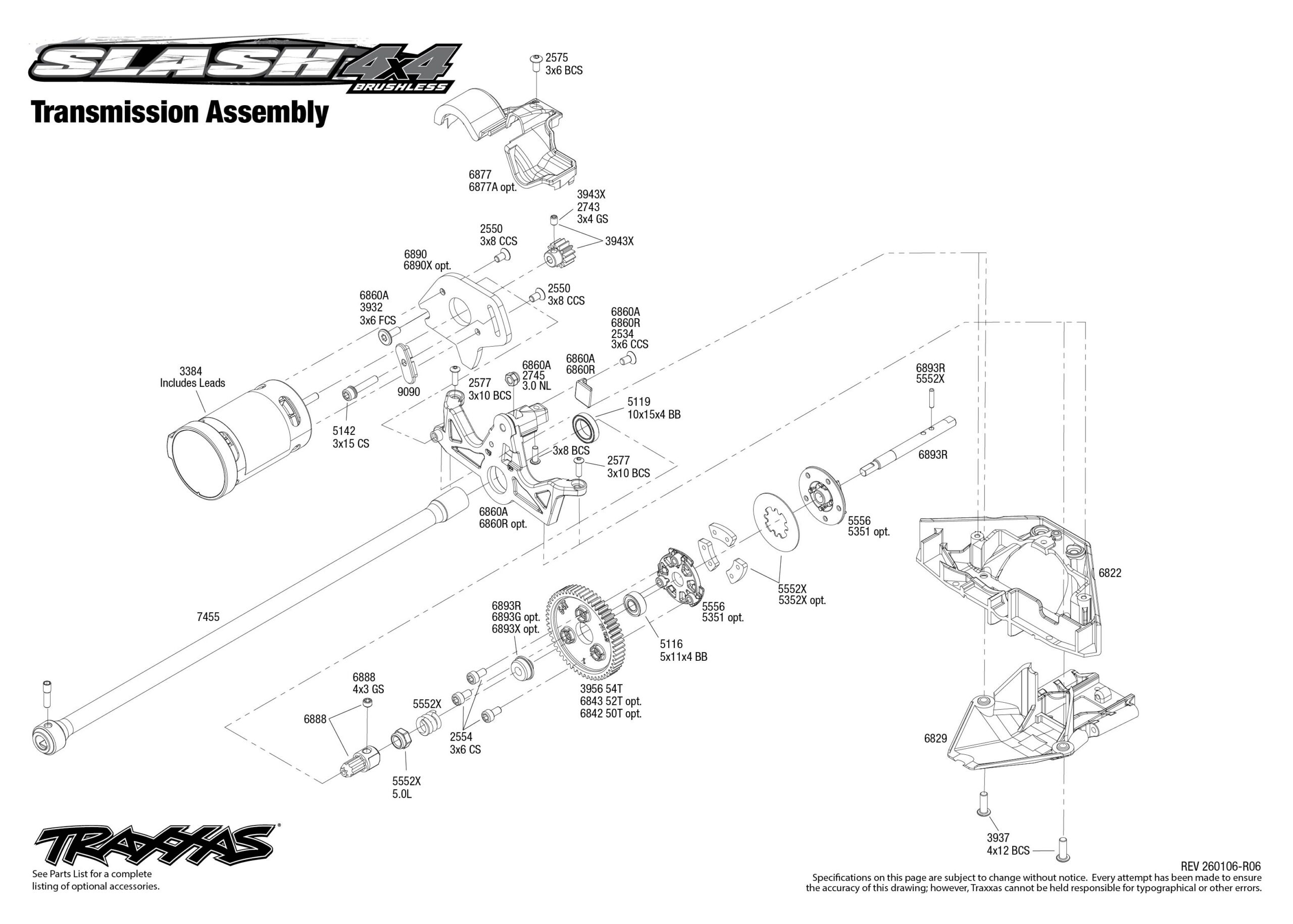

Slash 4X4 Brushless (68154-4) Transmission Assembly Exploded View
slash-4×4-bl-2s-68154-4

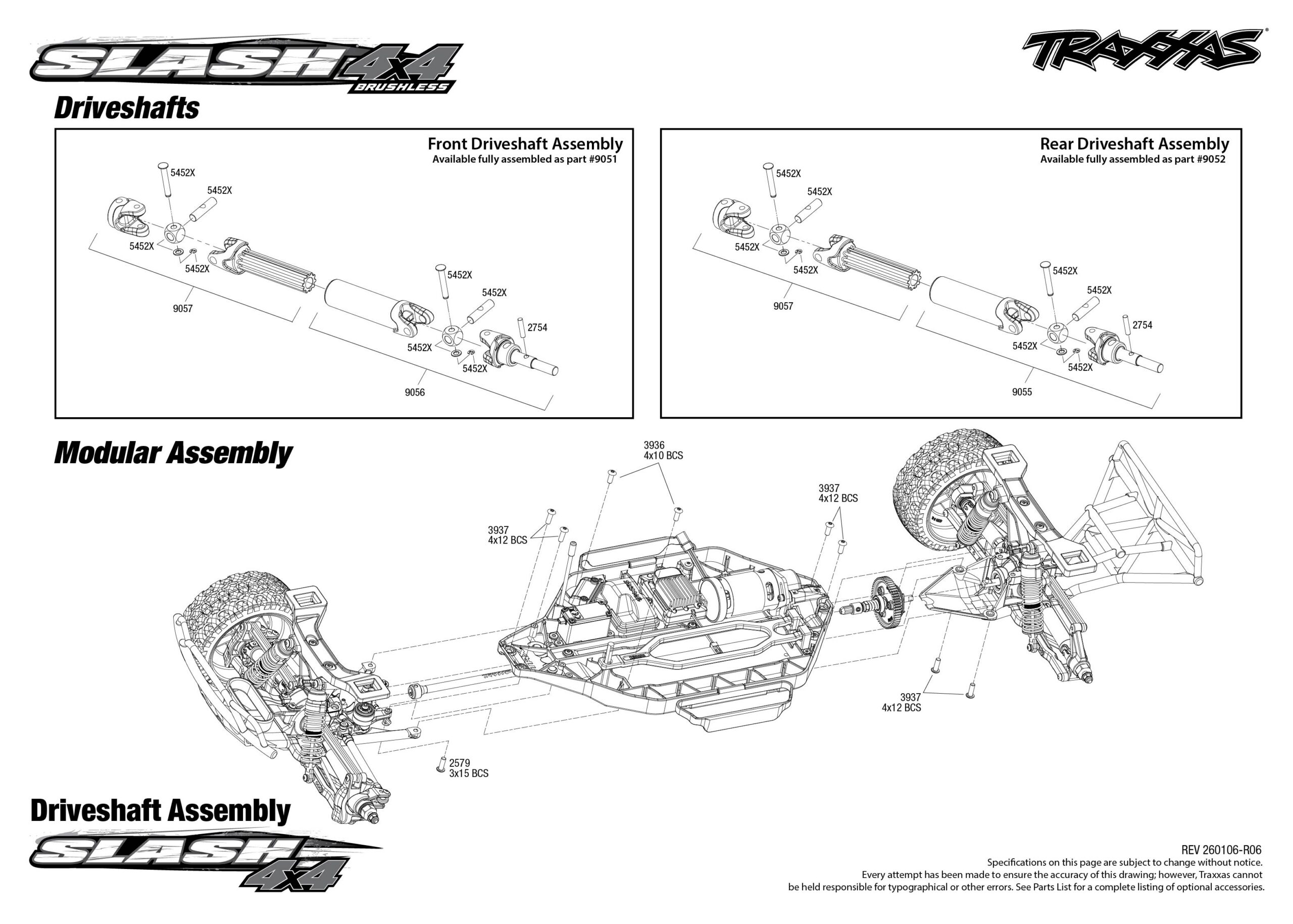

Slash 4X4 Brushless (68154-4) Driveshafts Assembly Exploded View
slash-4×4-bl-2s-68154-4

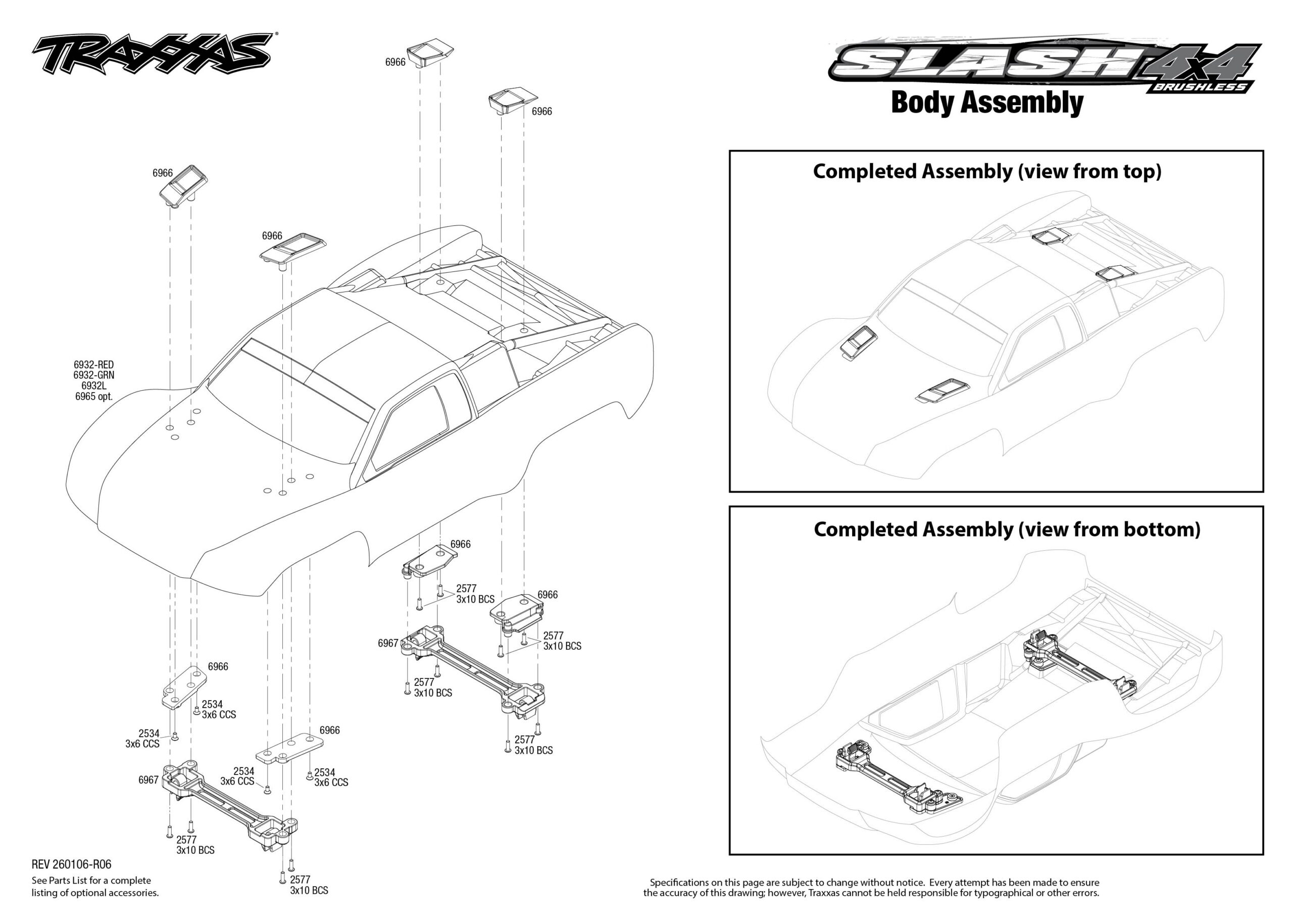

Slash 4X4 Brushless (68154-4) Body Assembly Exploded View
slash-4×4-bl-2s-68154-4

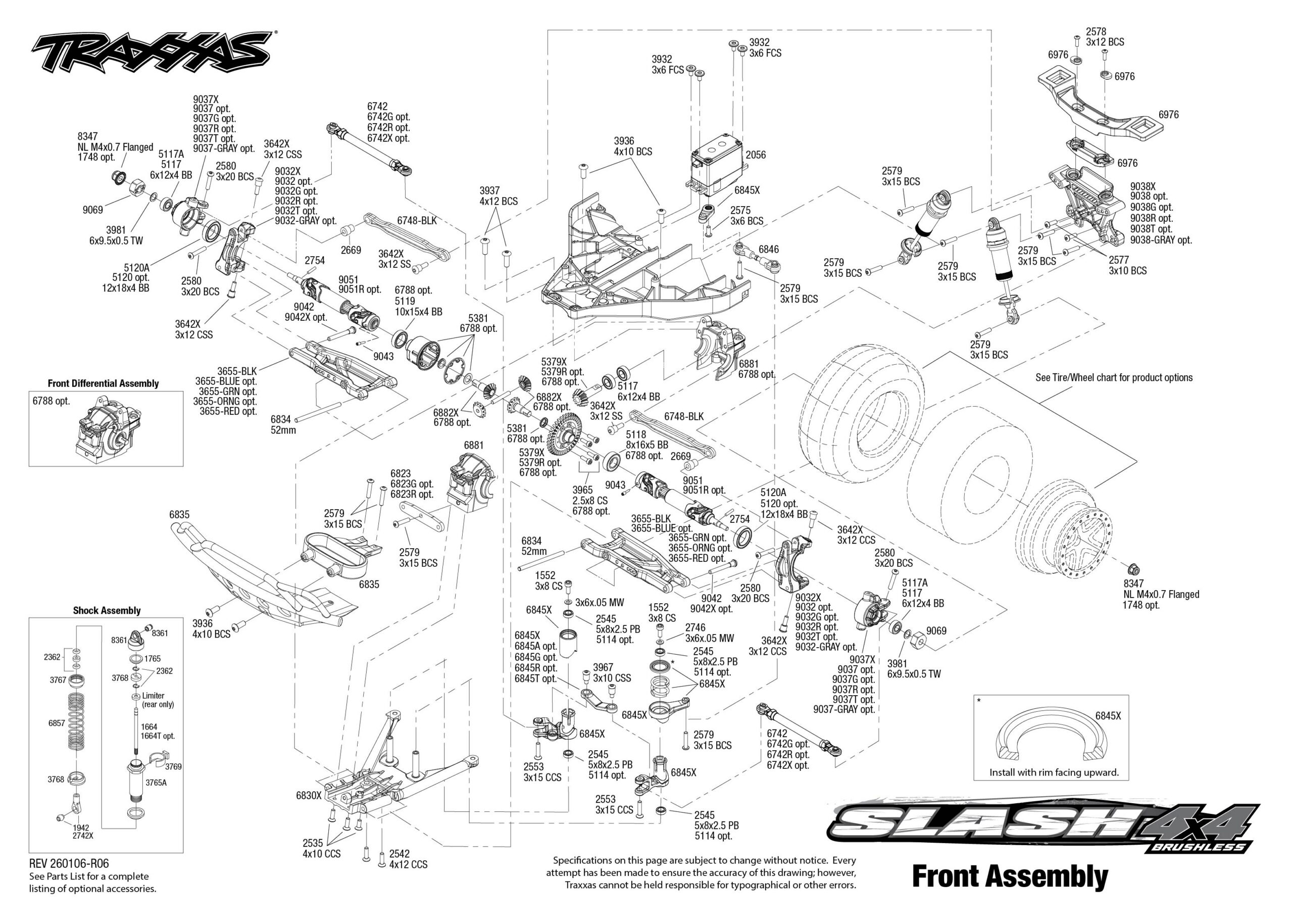

Slash 4X4 Brushless (68154-4) Front Assembly Exploded View
slash-4×4-bl-2s-68154-4
