Slash 2WD XL-5 HD 58234-8
On this page you will find the complete exploded diagram of the Traxxas Slash 2WD XL-5 HD 58234-8 All parts of the vehicle are clearly shown so you can easily see how the Slash 2WD XL-5 HD is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Slash 2WD XL-5 HD

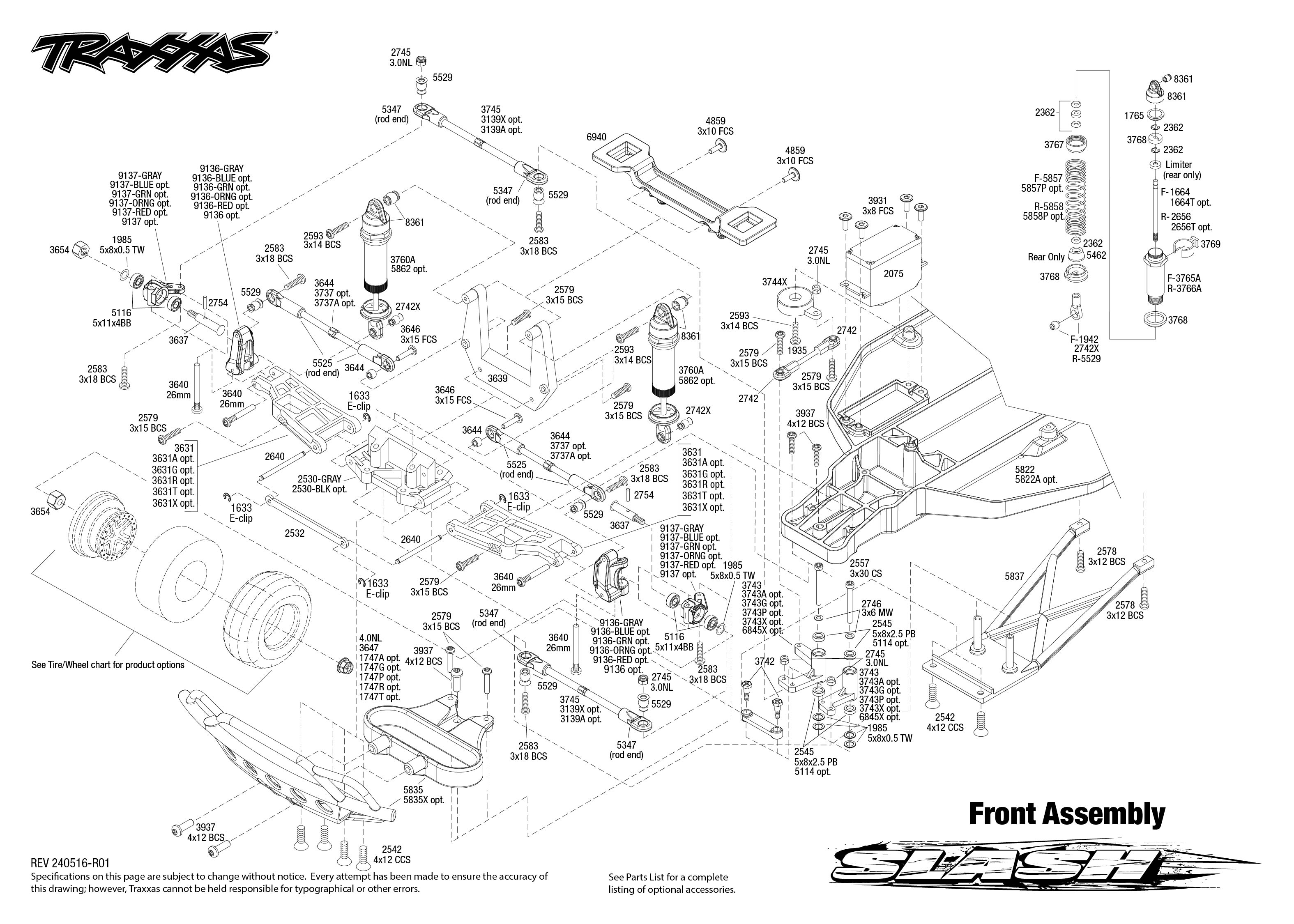

Slash EHD (58234-8) Front Assembly Exploded View
slash-2wd-xl-5-hd-58234-8

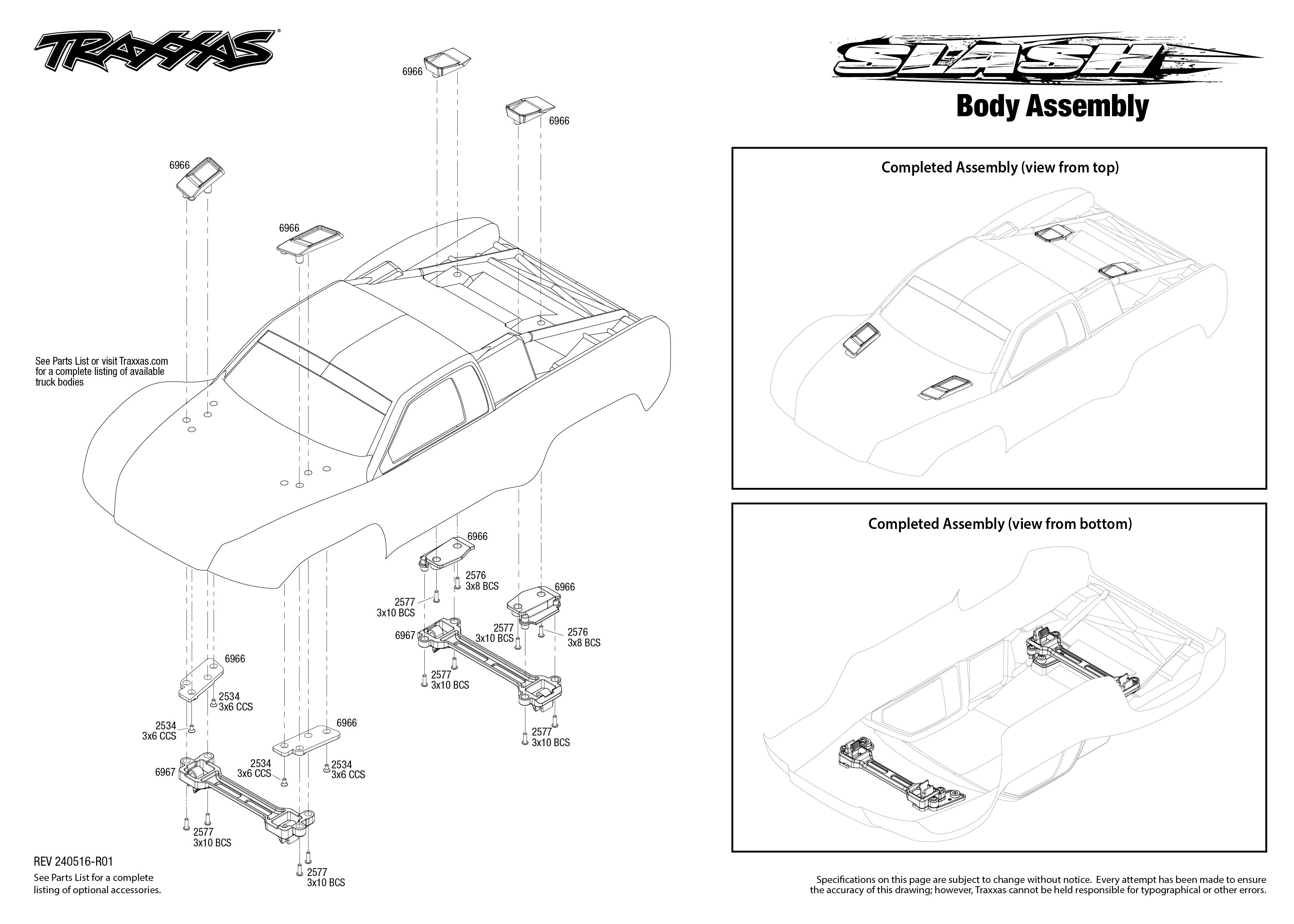

Slash EHD (58234-8) Body Assembly Exploded View
slash-2wd-xl-5-hd-58234-8

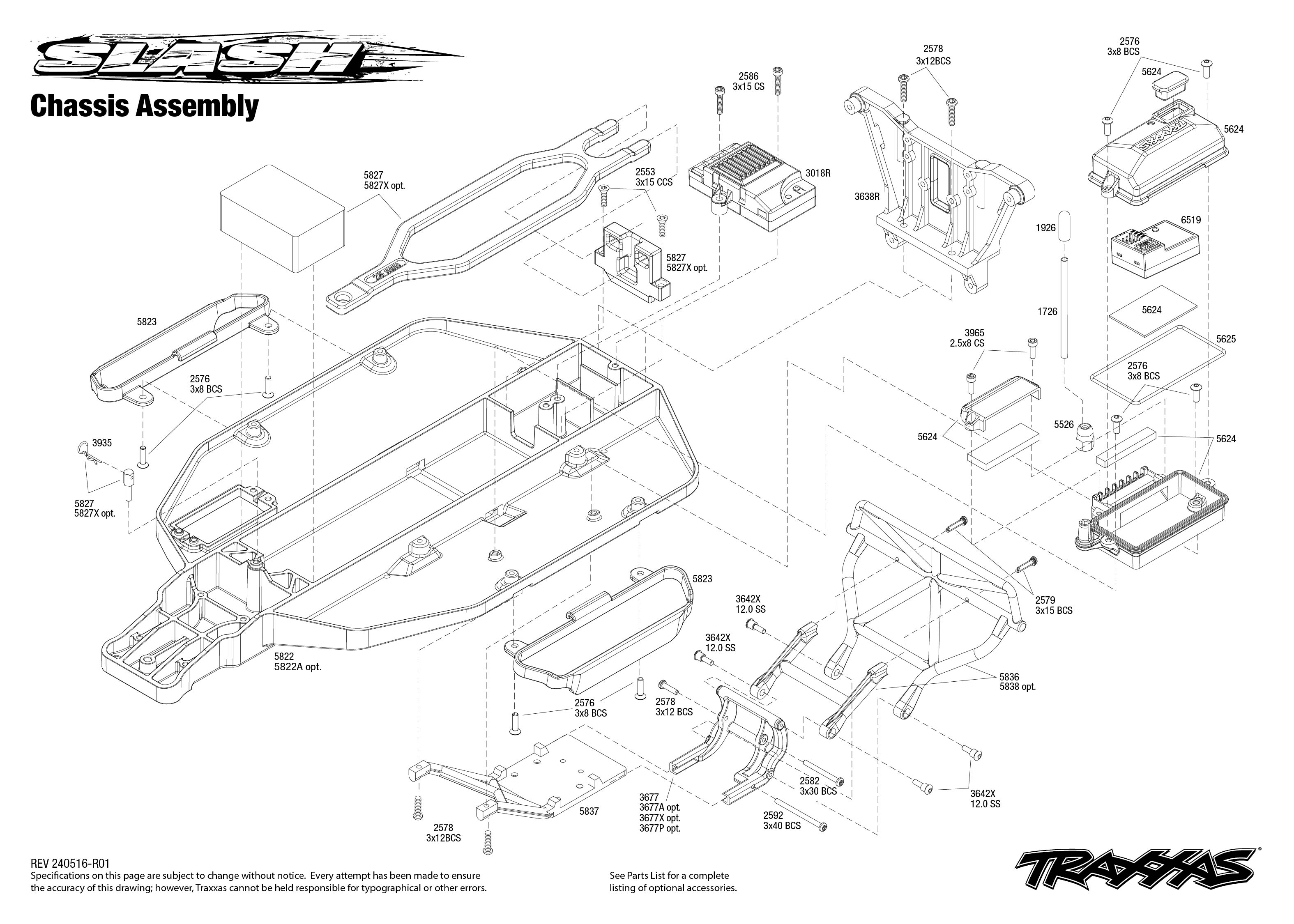

Slash EHD (58234-8) Chassis Assembly Exploded View
slash-2wd-xl-5-hd-58234-8

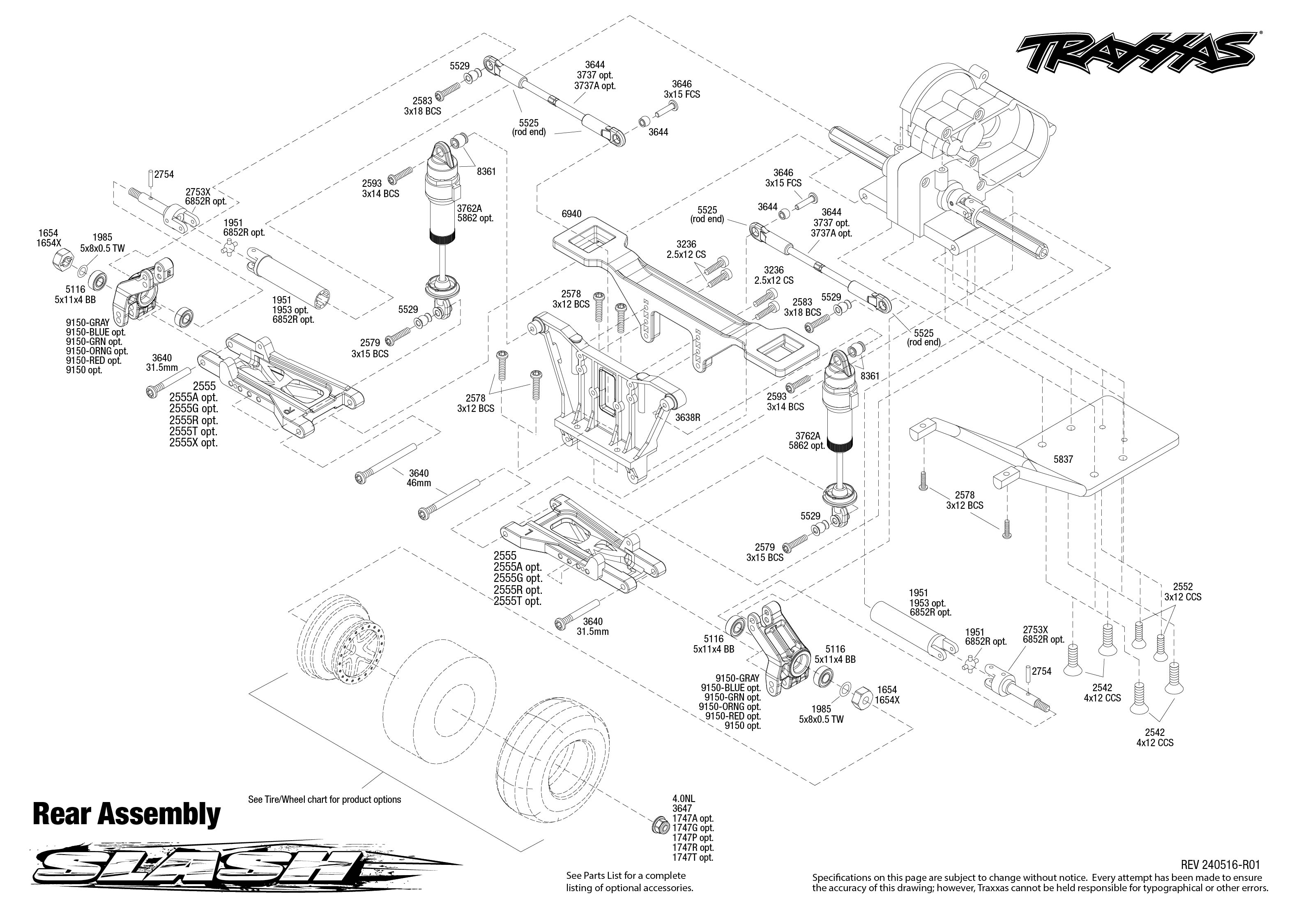

Slash EHD (58234-8) Rear Assembly Exploded View
slash-2wd-xl-5-hd-58234-8

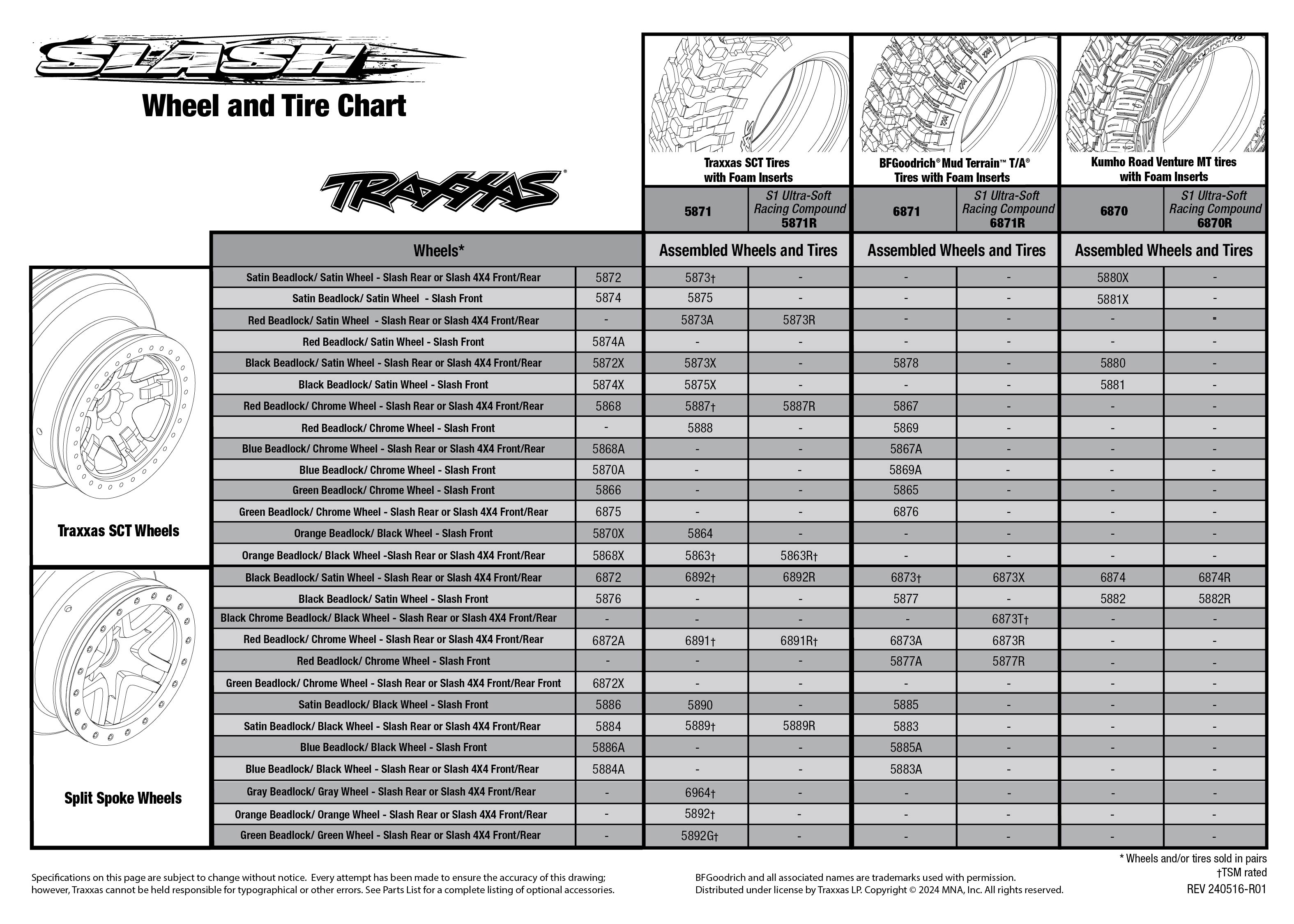

Slash EHD (58234-8) Tire Chart
slash-2wd-xl-5-hd-58234-8

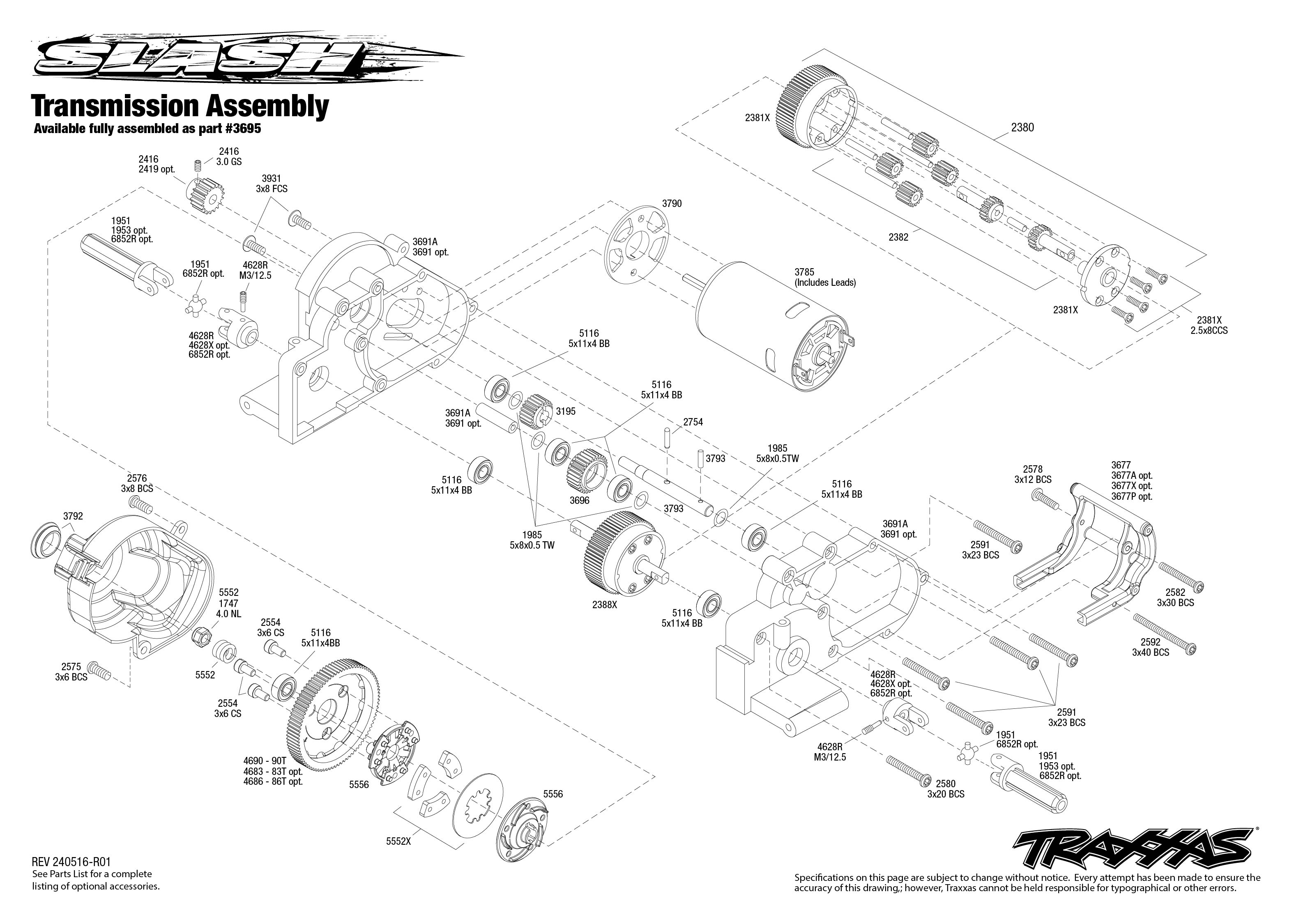

Slash EHD (58234-8) Transmission Assembly Exploded View
slash-2wd-xl-5-hd-58234-8
