Slash 2WD BL-2s 58334-4
On this page you will find the complete exploded diagram of the Traxxas Slash 2WD BL-2s 58334-4. All parts of the vehicle are clearly shown so you can easily see how the Slash 2WD BL-2s is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Slash 2WD BL-2s 58334-4.

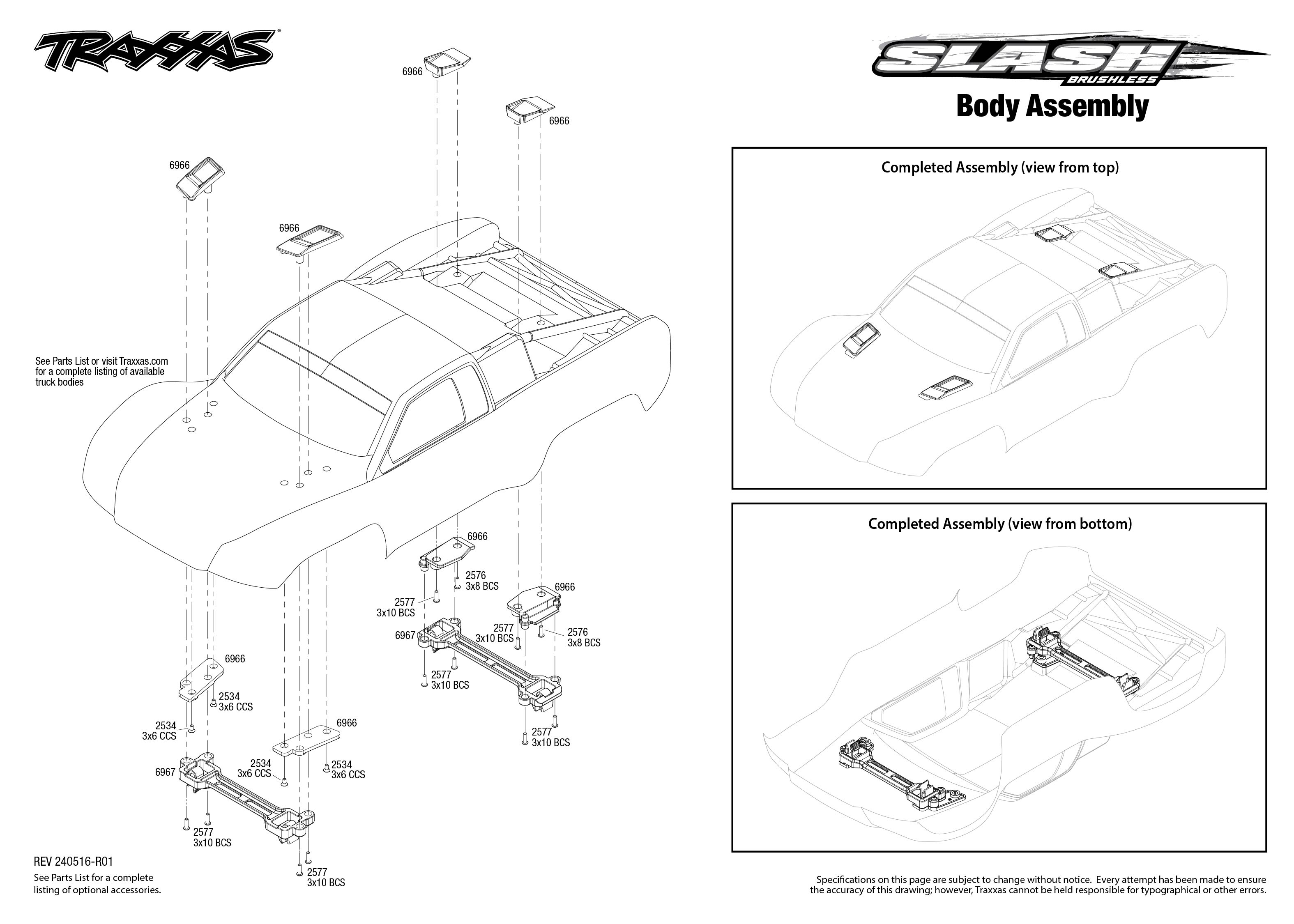

Slash Brushless EHD (58334-4) Body Assembly Exploded View
slash-2wd-bl-2s-58334-4

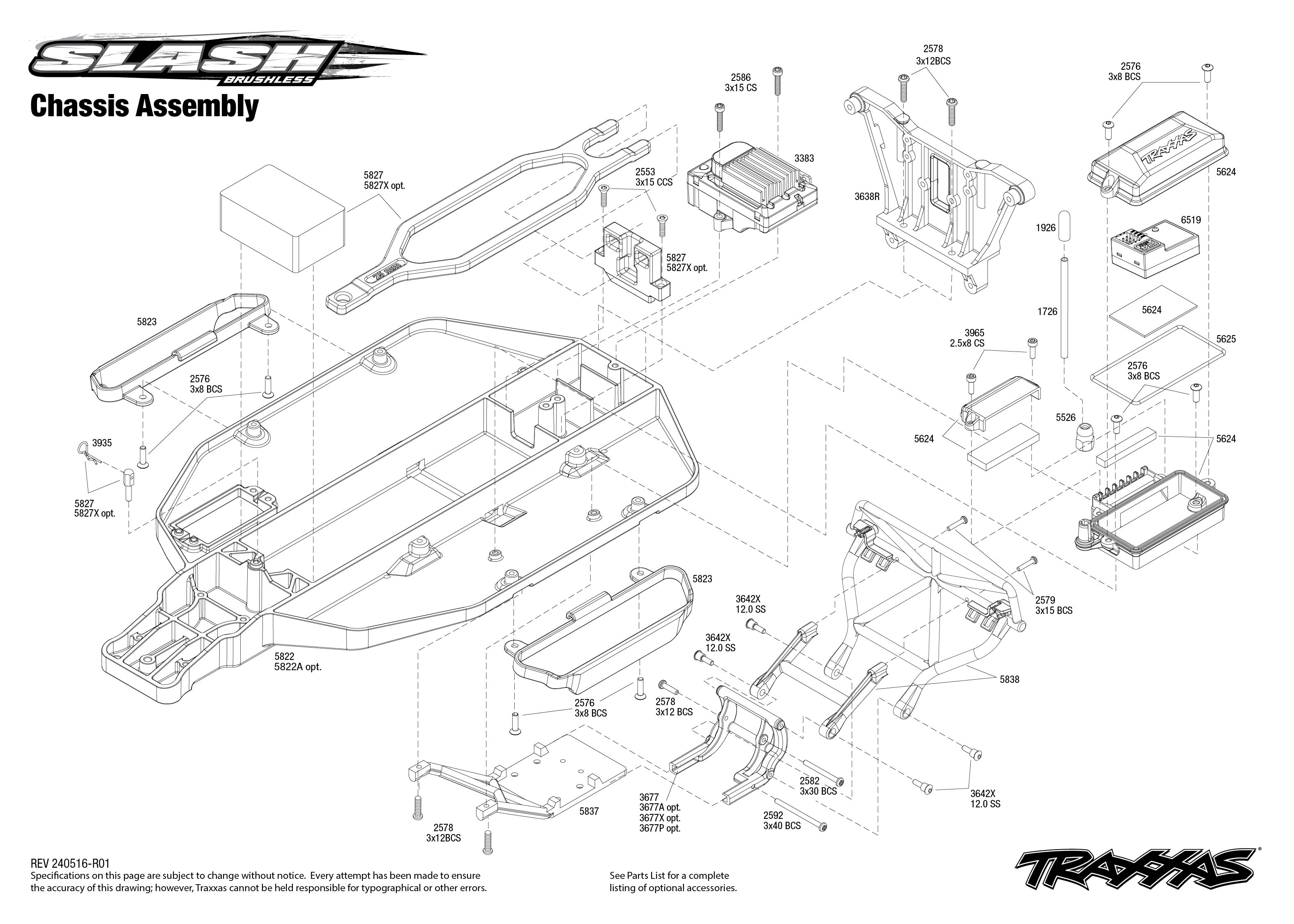

Slash Brushless EHD (58334-4) Chassis Assembly Exploded View
slash-2wd-bl-2s-58334-4

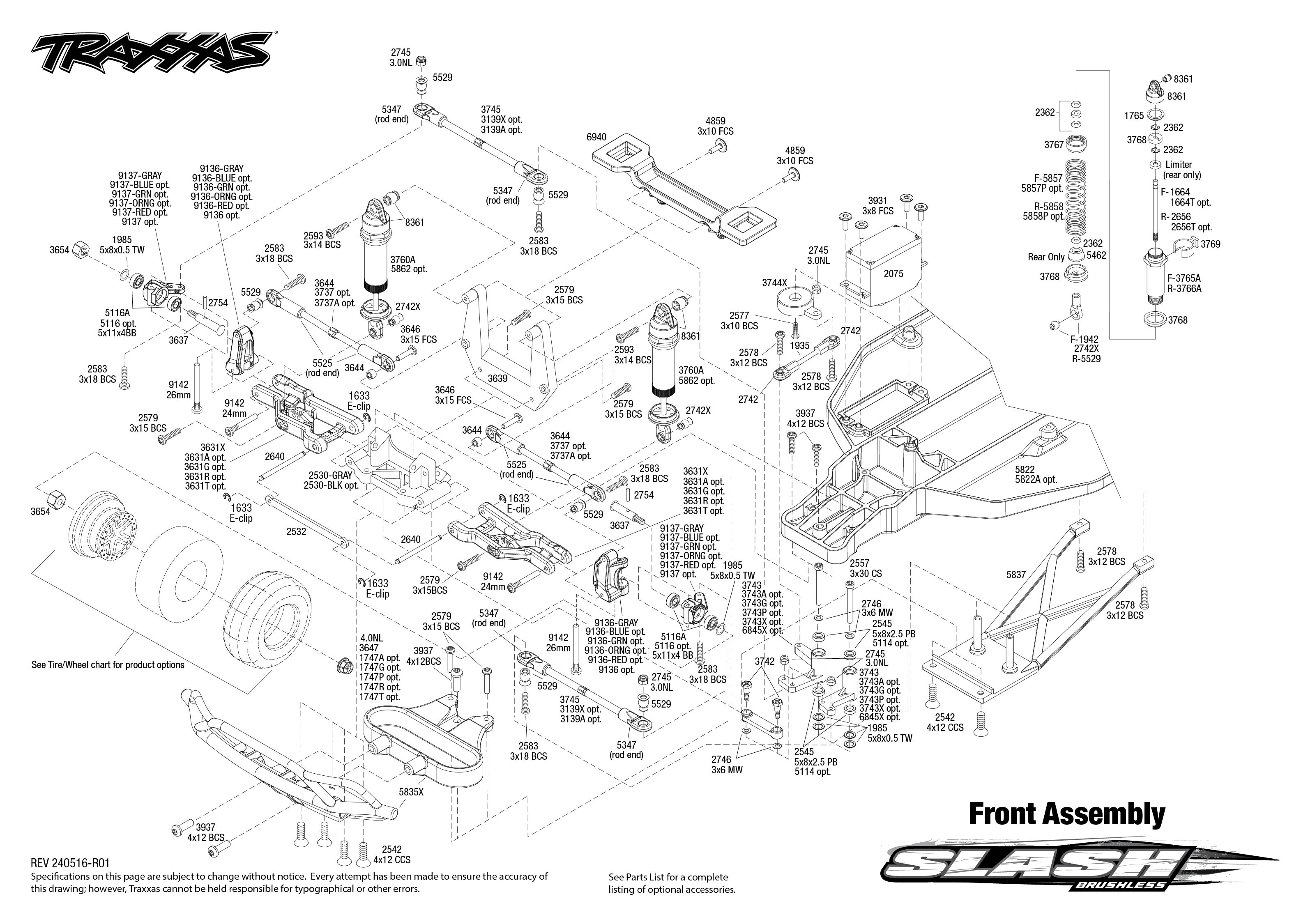

Slash Brushless EHD (58334-4) Front Assembly Exploded View
slash-2wd-bl-2s-58334-4

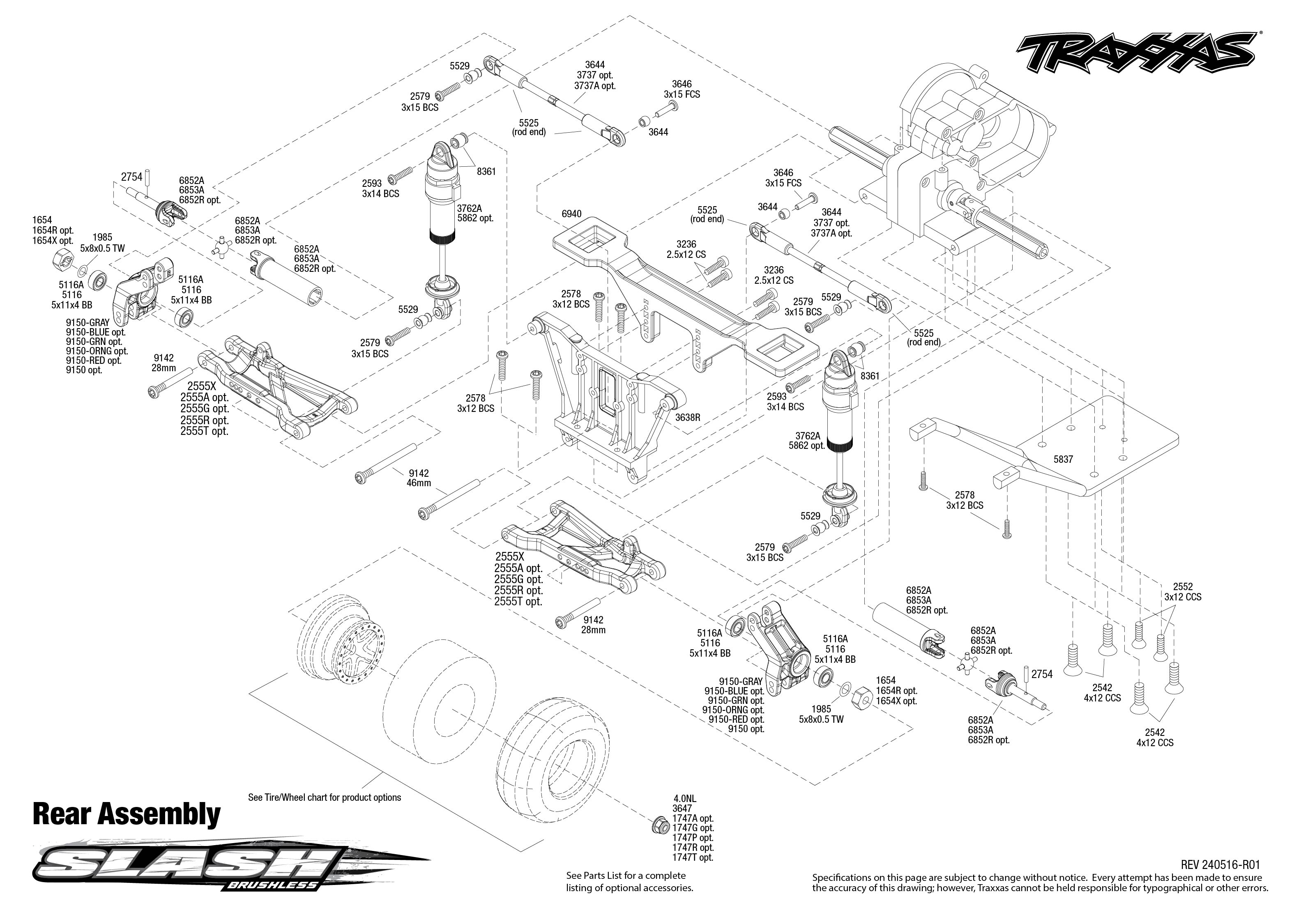

Slash Brushless EHD (58334-4) Rear Assembly Exploded View
slash-2wd-bl-2s-58334-4

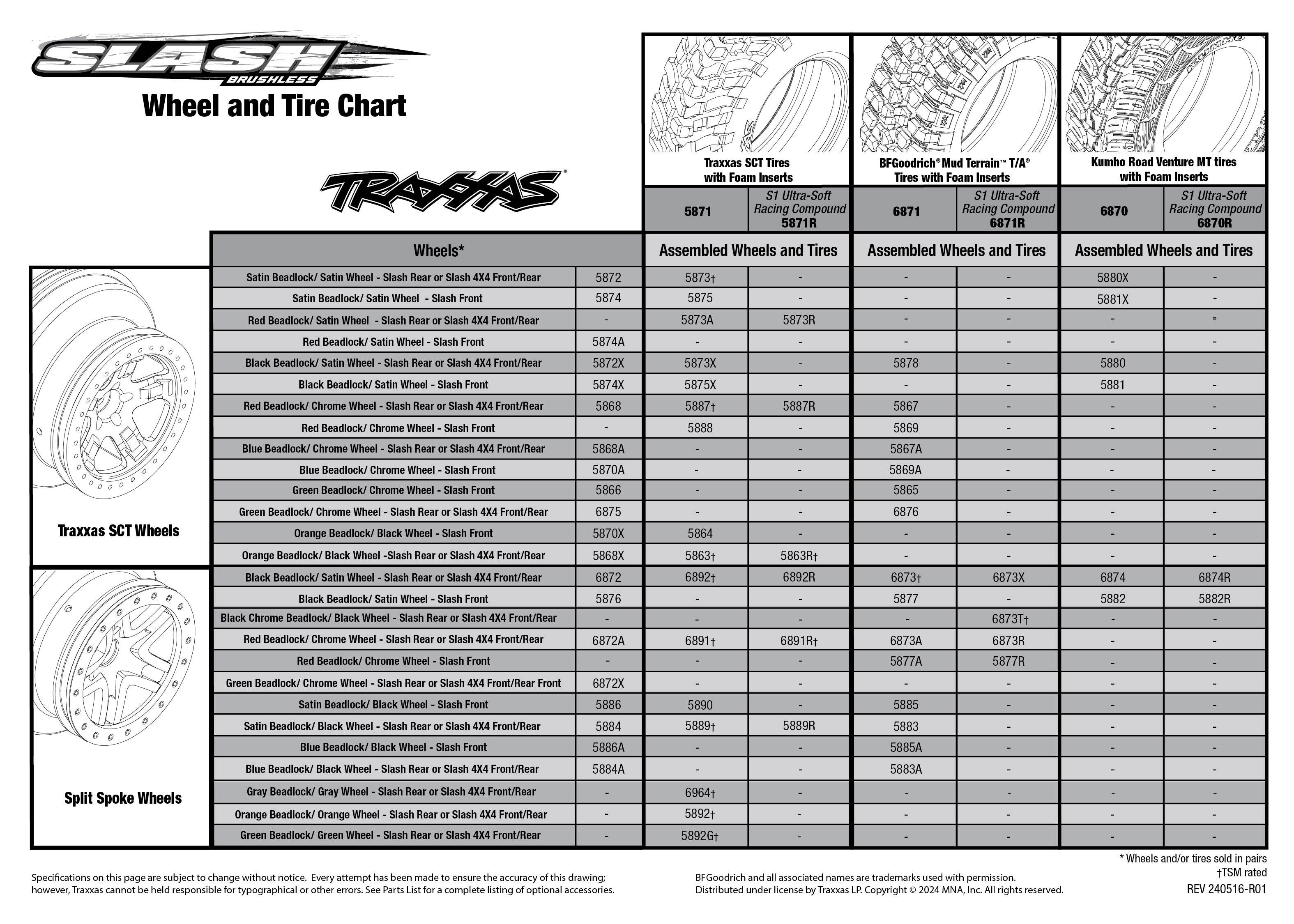

Slash Brushless EHD (58334-4) Tire Chart
slash-2wd-bl-2s-58334-4

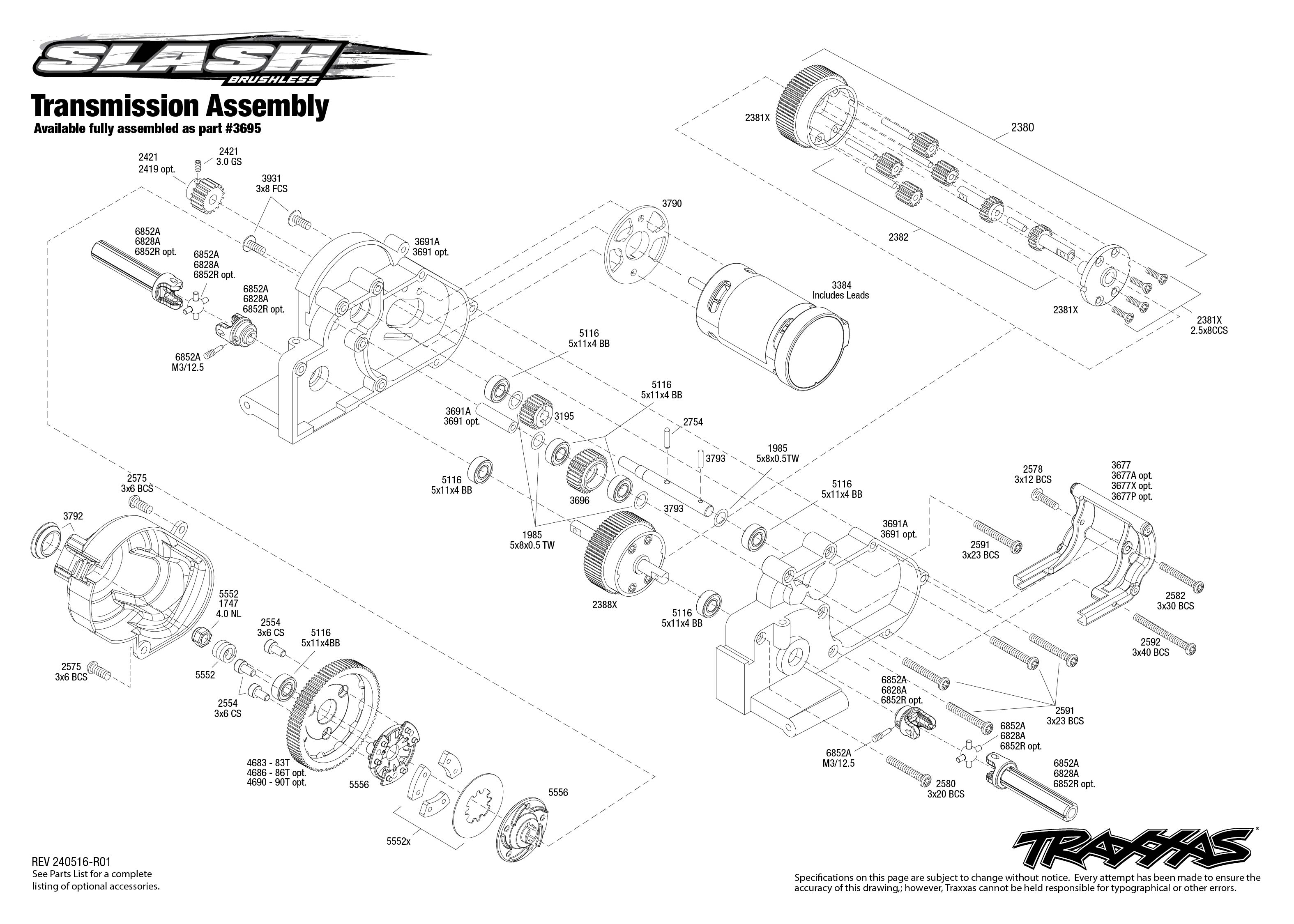

Slash Brushless EHD (58334-4) Transmission Assembly Exploded View
slash-2wd-bl-2s-58334-4
