Rustler VXL 4X4 Brushless 67076-4 old
On this page you will find the complete exploded diagram of the Traxxas Rustler VXL 4X4 Brushless 67076-4. All parts of the vehicle are clearly shown so you can easily see how the Rustler VXL 4X4 Brushless is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Rustler VXL 4X4 Brushless .

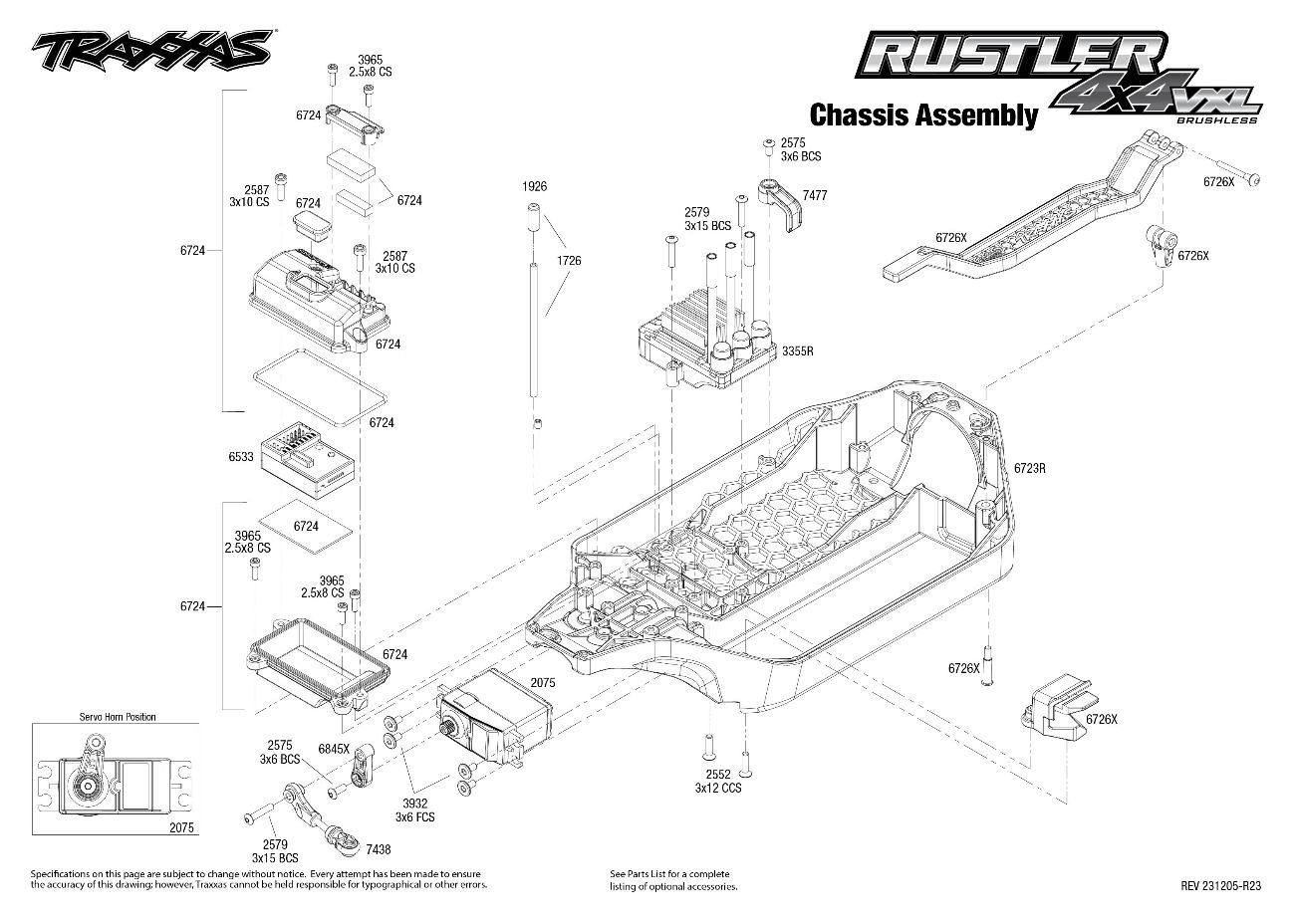

Rustler 4X4 VXL (67076-4) Chassis Assembly Exploded View
rustler-vxl-4×4-brushless-67076-4-old

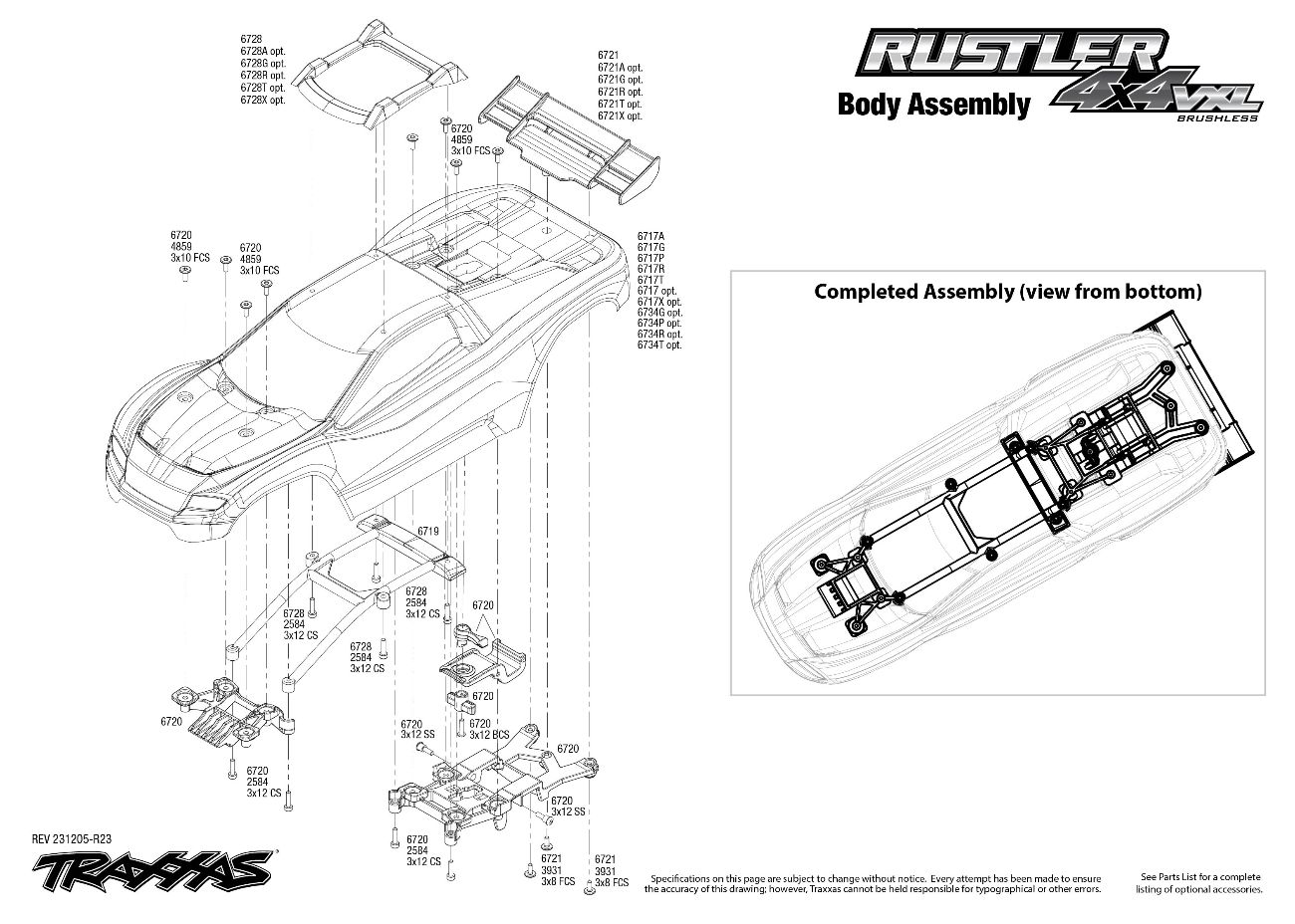

Rustler 4X4 VXL (67076-4) Body Assembly Exploded View
rustler-vxl-4×4-brushless-67076-4-old

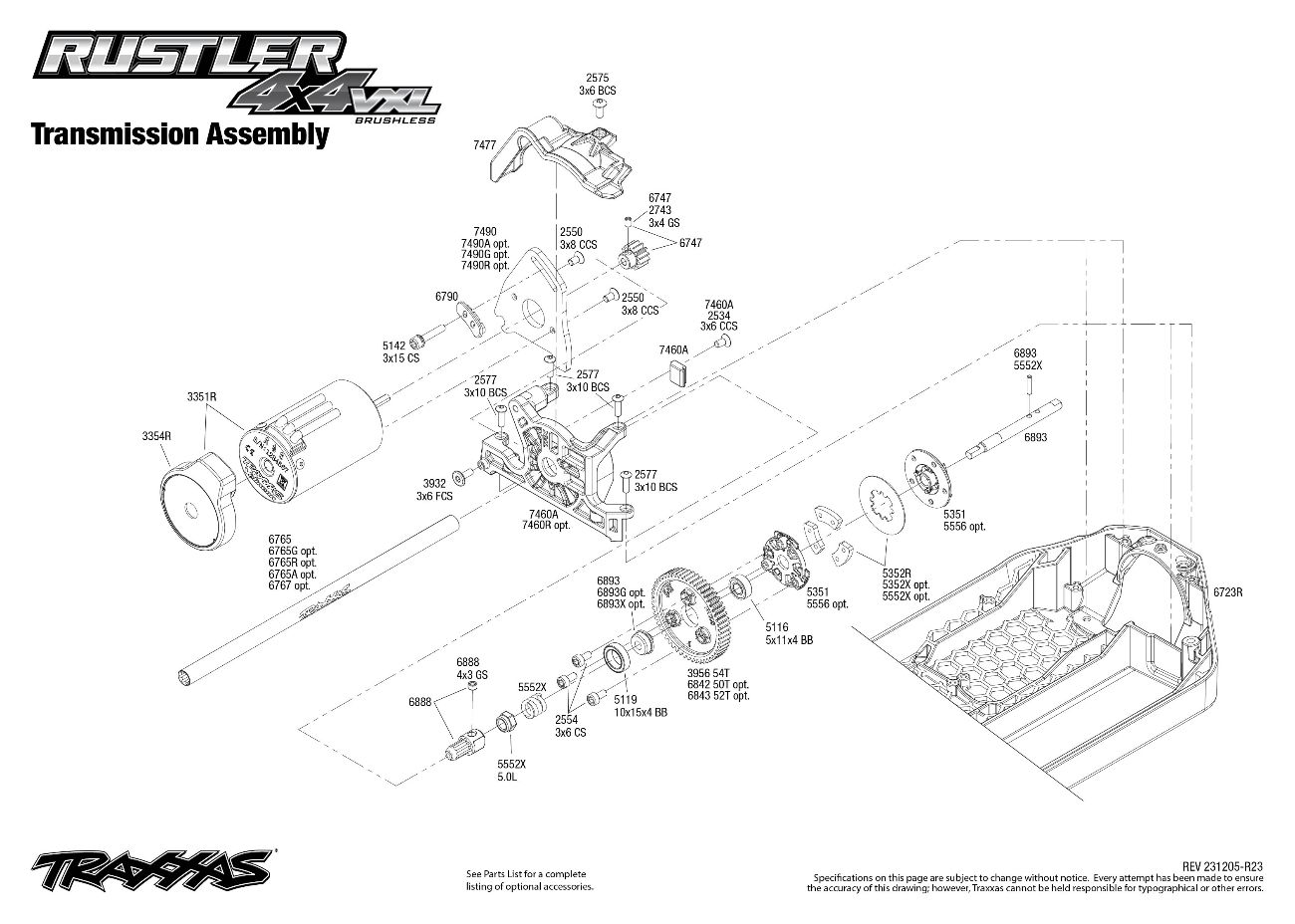

Rustler 4X4 VXL (67076-4) Transmission Assembly Exploded View
rustler-vxl-4×4-brushless-67076-4-old

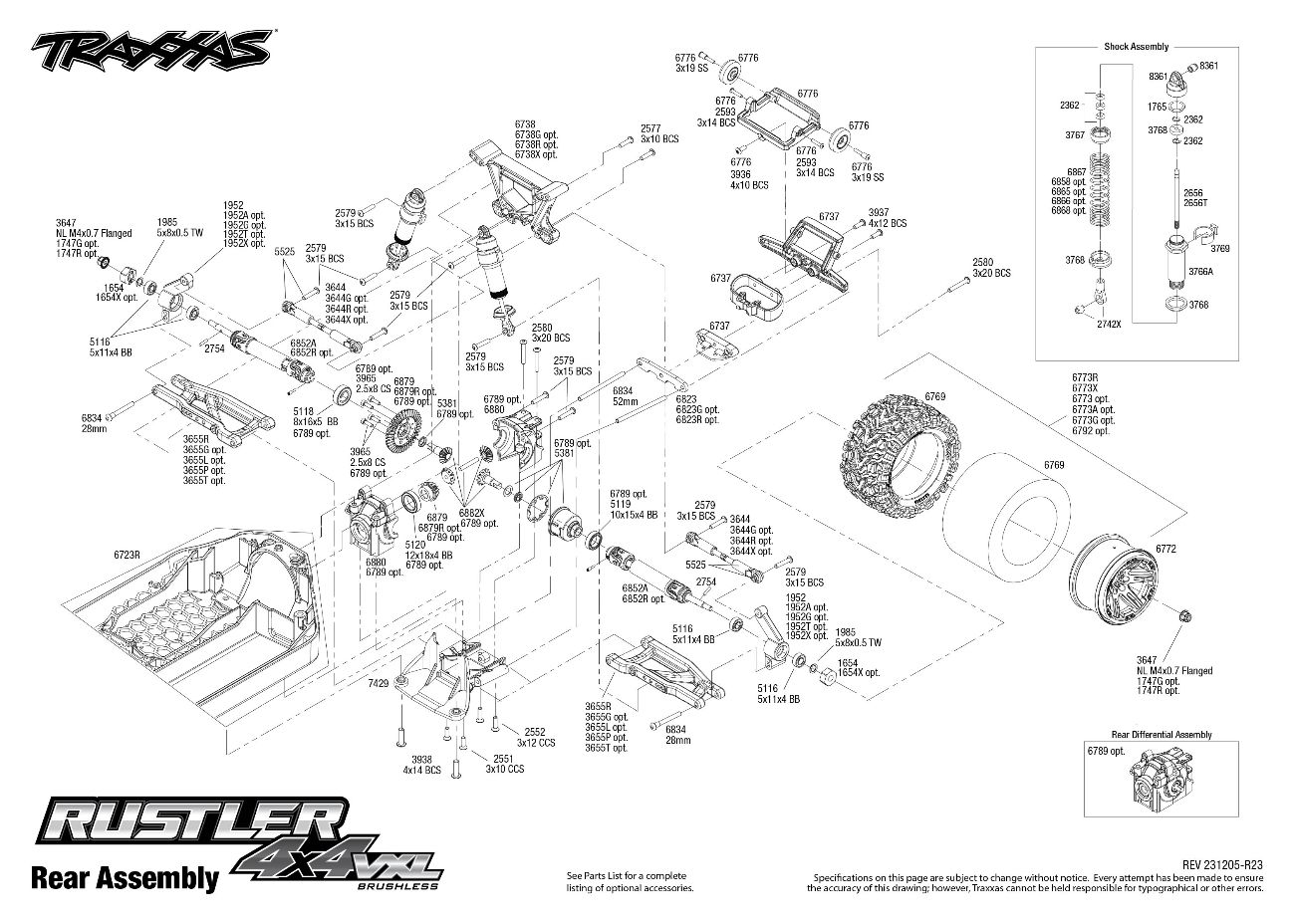

Rustler 4X4 VXL (67076-4) Rear Assembly Exploded View
rustler-vxl-4×4-brushless-67076-4-old

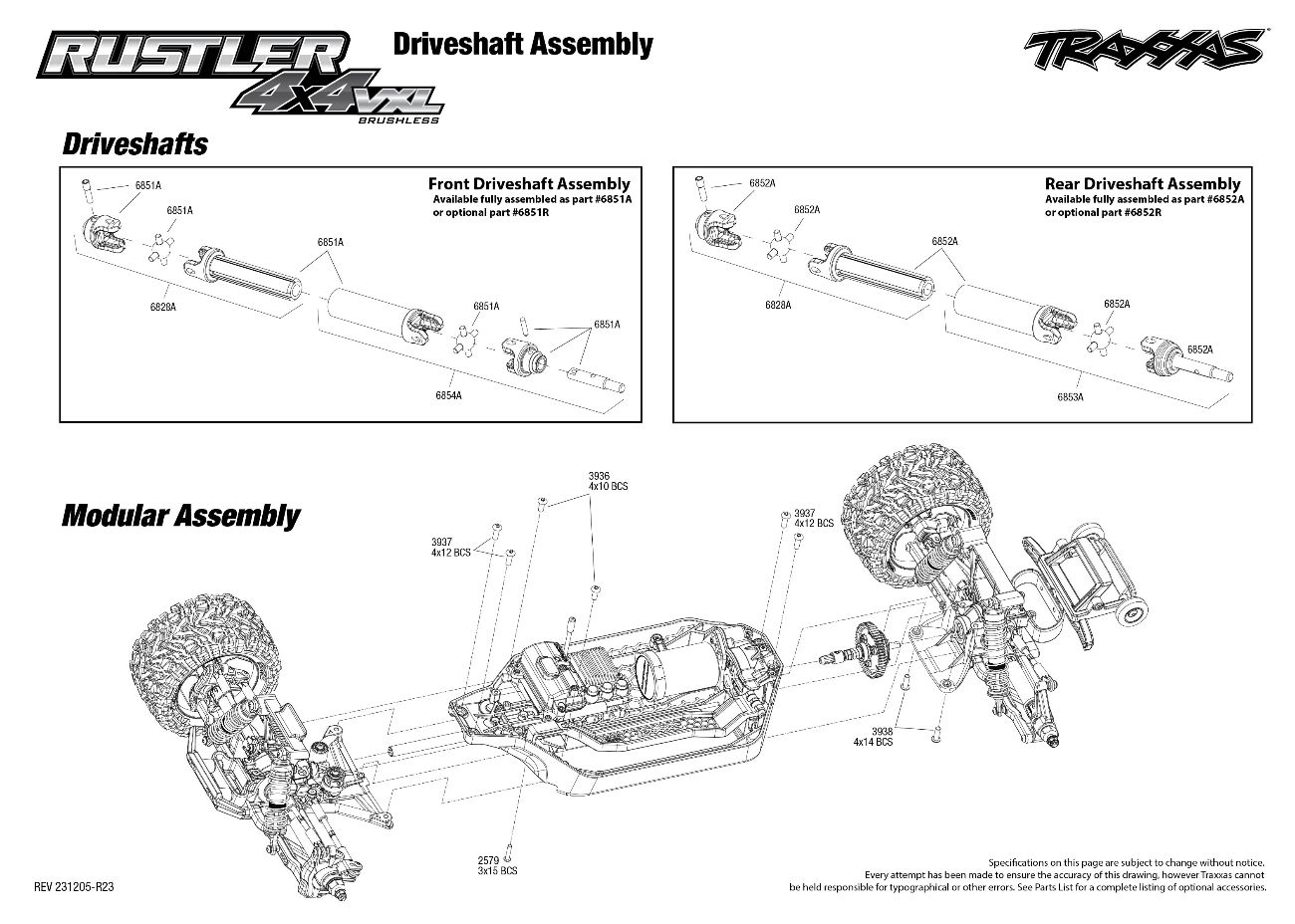

Rustler 4X4 VXL (67076-4) Driveshafts Assembly Exploded View
rustler-vxl-4×4-brushless-67076-4-old

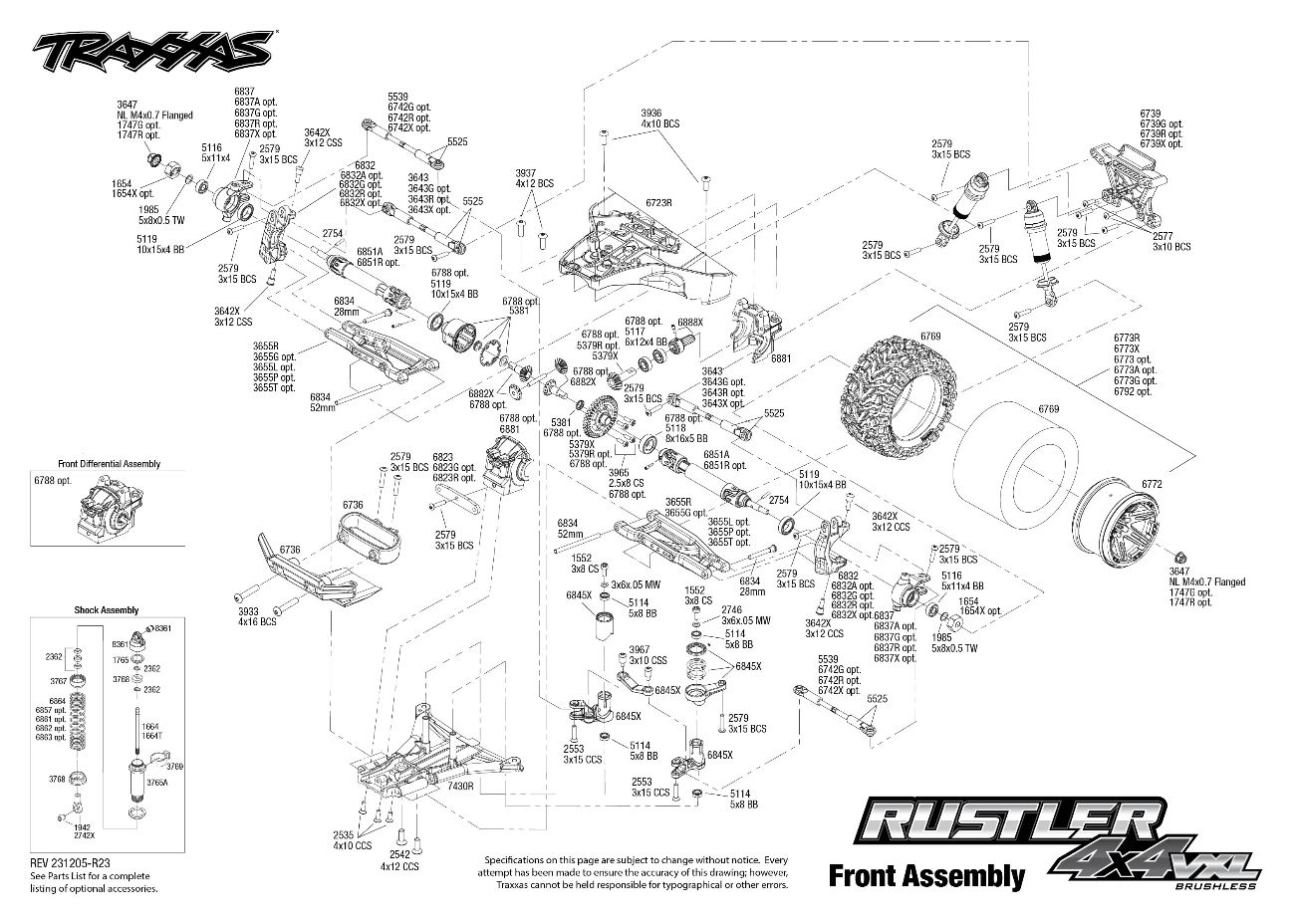

Rustler 4X4 VXL (67076-4) Front Assembly Exploded View
rustler-vxl-4×4-brushless-67076-4-old
