Rustler 4X4 VXL Ultimate 67097-4
On this page you will find the complete exploded diagram of the Traxxas Rustler 4X4 VXL Ultimate 67097-4 All parts of the vehicle are clearly shown so you can easily see how the Rustler 4X4 VXL Ultimate is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Rustler 4X4 VXL Ultimate

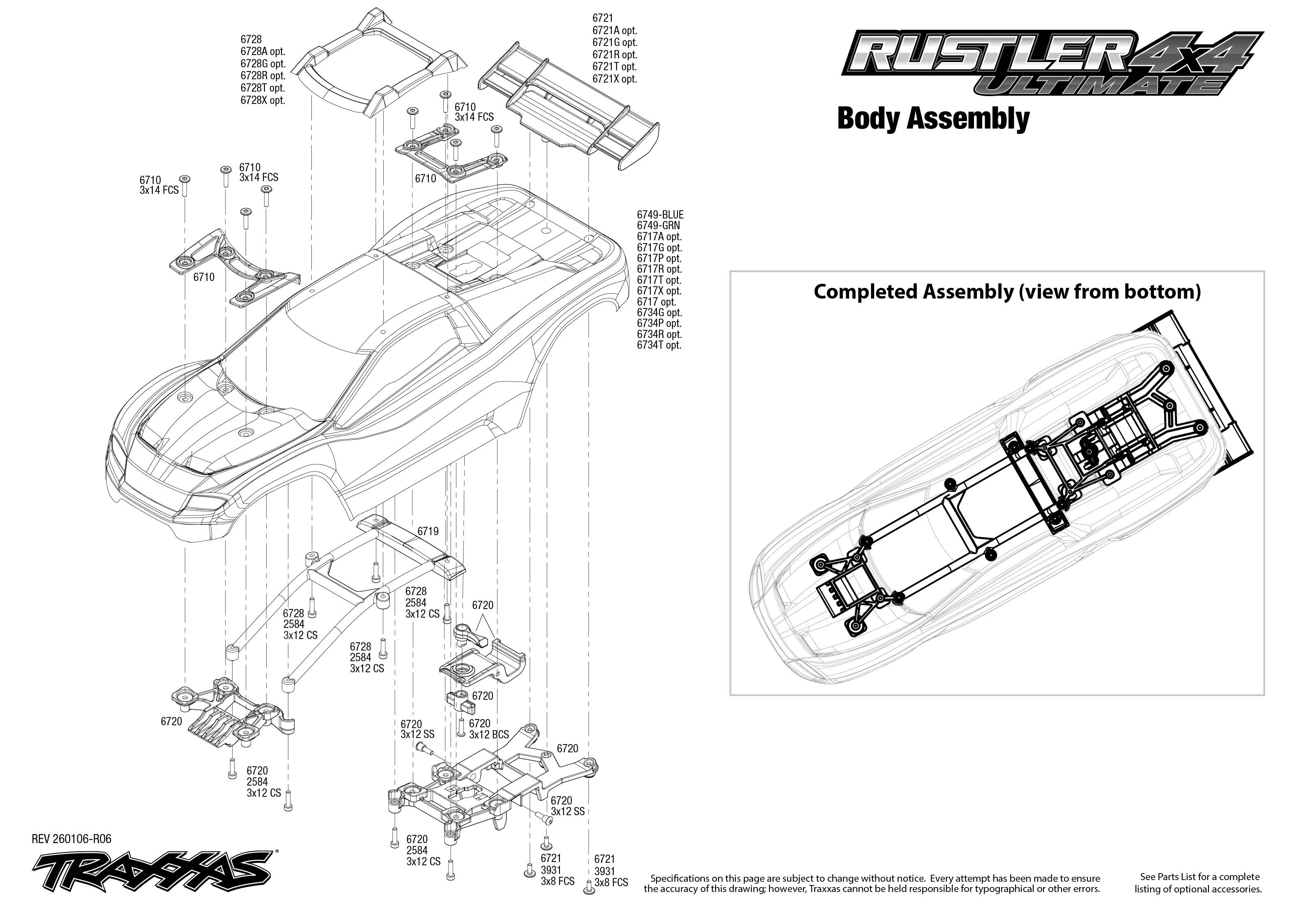

Rustler 4X4 Ultimate (67097-4) Body Assembly Exploded View
rustler-4×4-vxl-ultimate-67097-4
Rustler 4X4 Ultimate (67097-4) Rear Assembly Exploded View
rustler-4×4-vxl-ultimate-67097-4

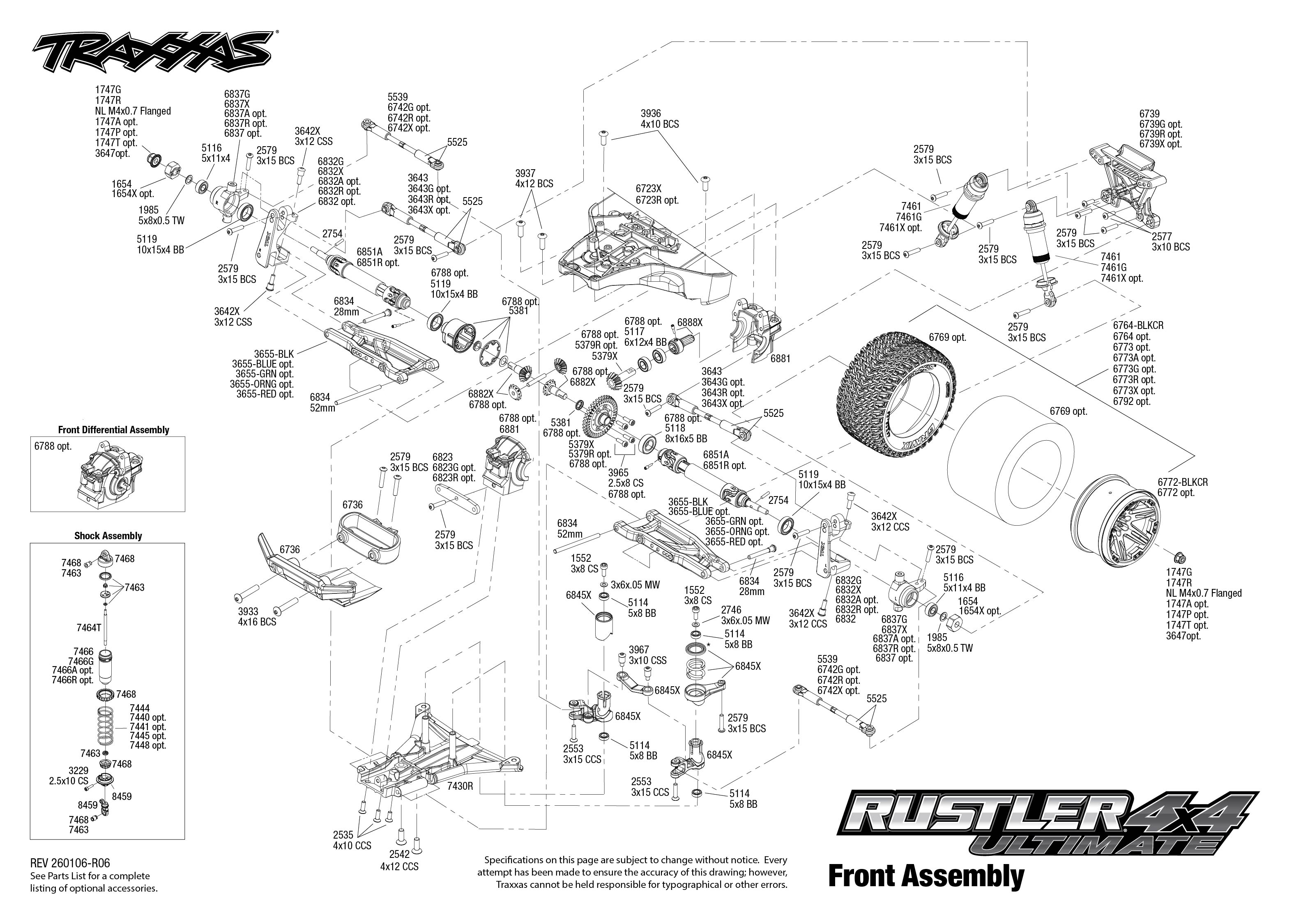

Rustler 4X4 Ultimate (67097-4) Front Assembly Exploded View
rustler-4×4-vxl-ultimate-67097-4

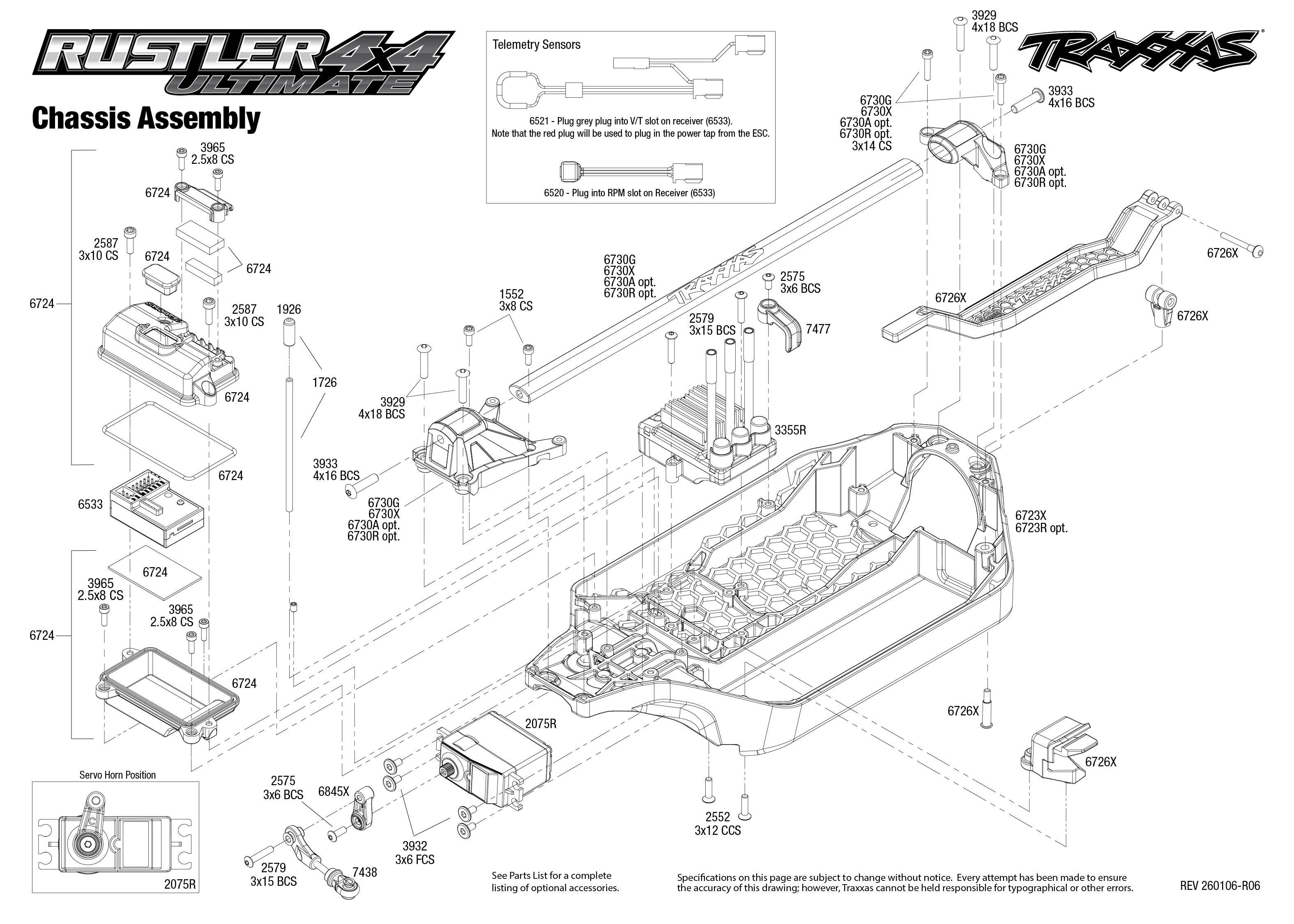

Rustler 4X4 Ultimate (67097-4) Chassis Assembly Exploded View
rustler-4×4-vxl-ultimate-67097-4

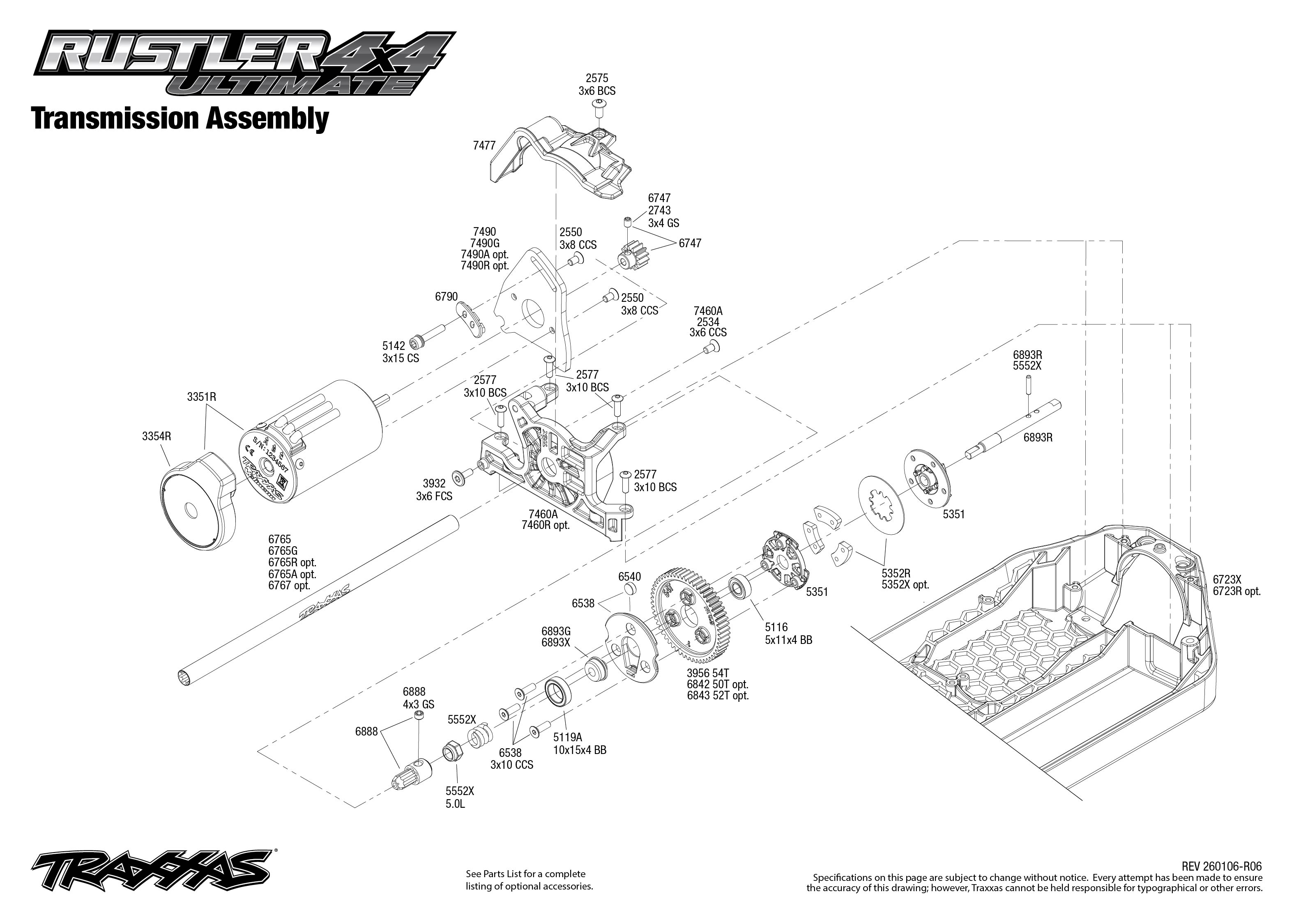

Rustler 4X4 Ultimate (67097-4) Transmission Assembly Exploded View
rustler-4×4-vxl-ultimate-67097-4

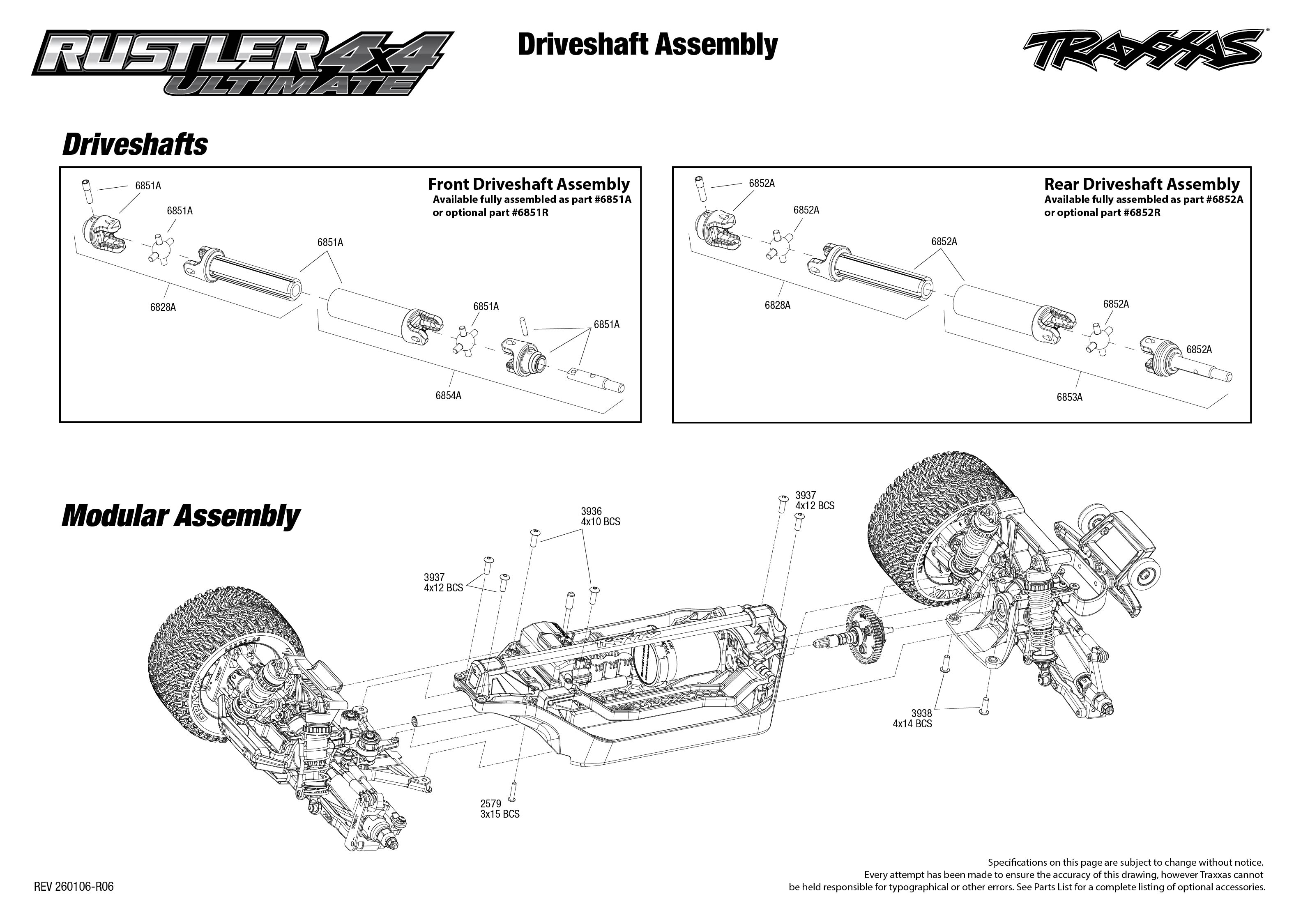

Rustler 4X4 Ultimate (67097-4) Driveshafts Assembly Exploded View
rustler-4×4-vxl-ultimate-67097-4
