Rustler 2WD XL-5 37254-8
On this page you will find the complete exploded diagram of the Traxxas Rustler 2WD XL-5 37254-8. All parts of the vehicle are clearly shown so you can easily see how the Rustler 2WD XL-5 is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Rustler 2WD XL-5.

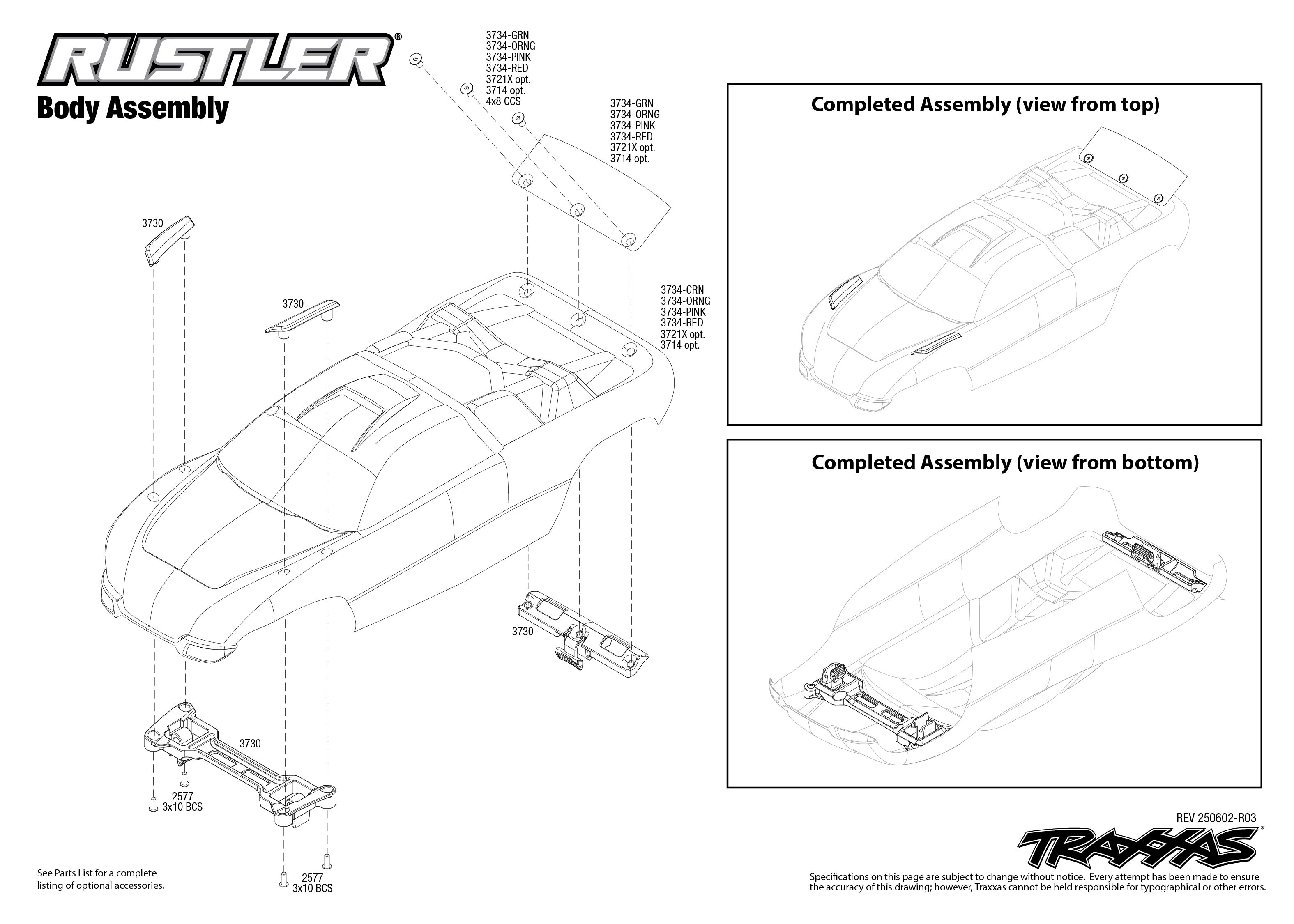

Rustler (37254-8) Body Assembly Exploded View
rustler-2wd-xl-5-37254-8

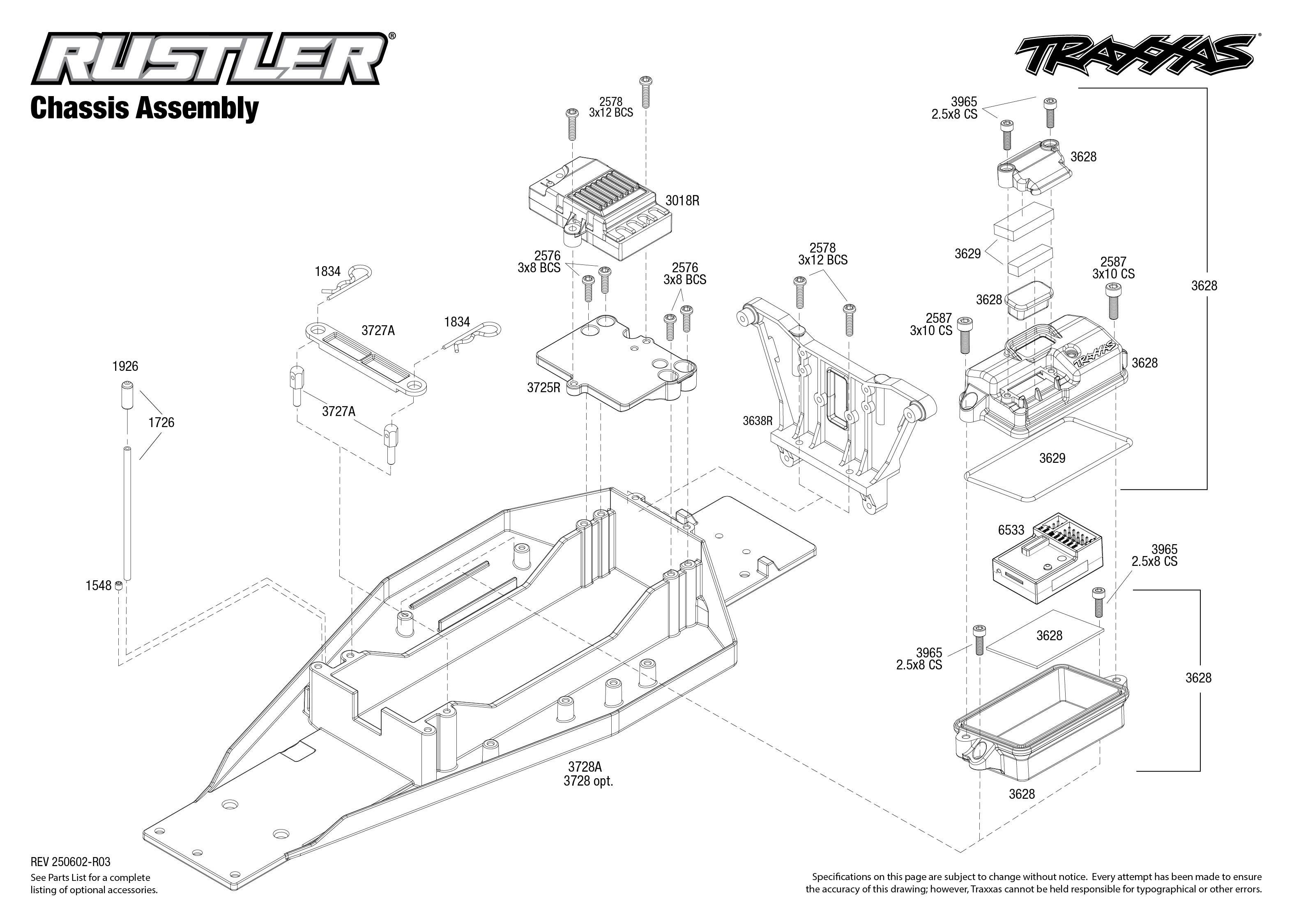

Rustler (37254-8) Chassis Assembly Exploded View
rustler-2wd-xl-5-37254-8

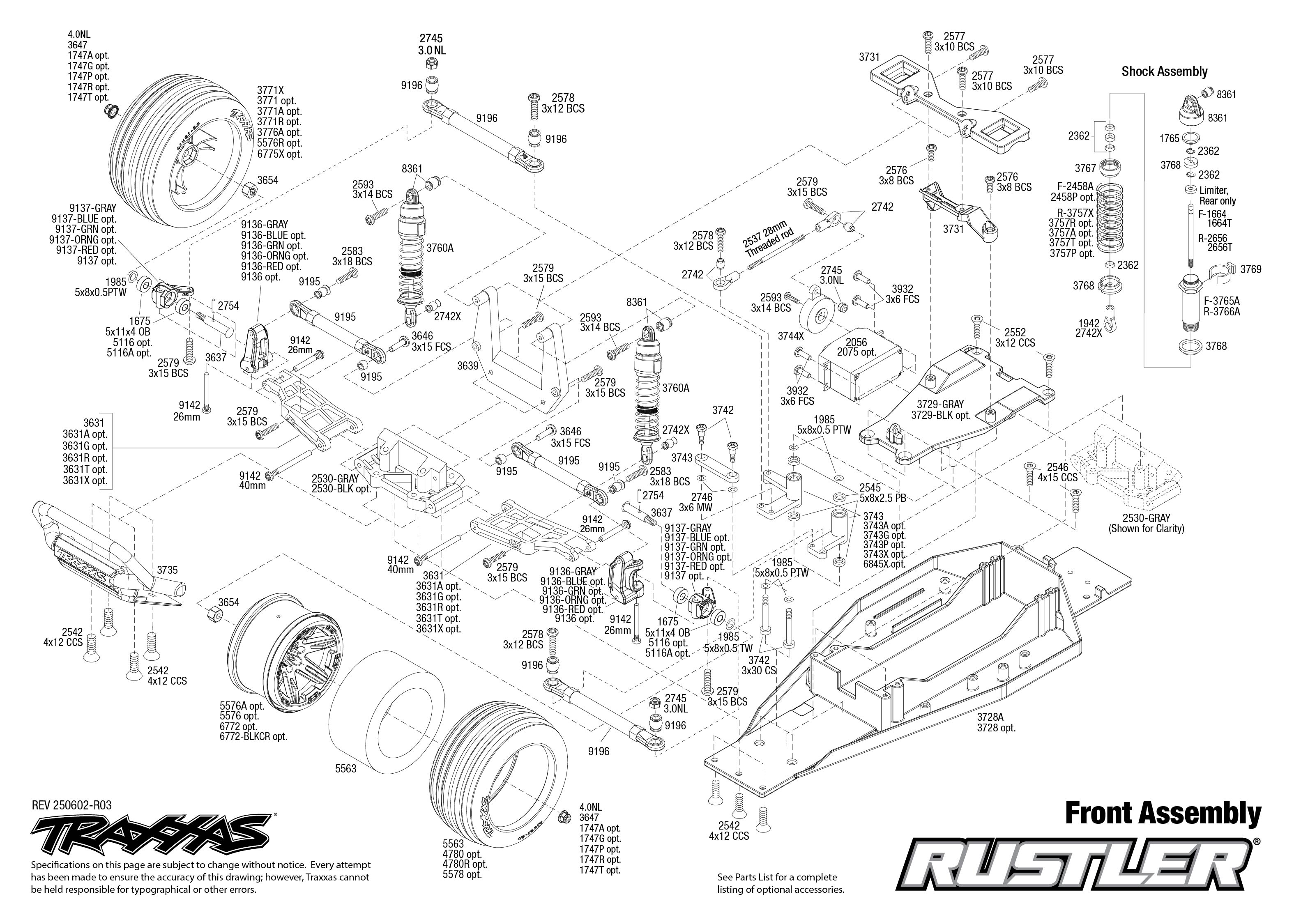

Rustler (37254-8) Front Assembly Exploded View
rustler-2wd-xl-5-37254-8

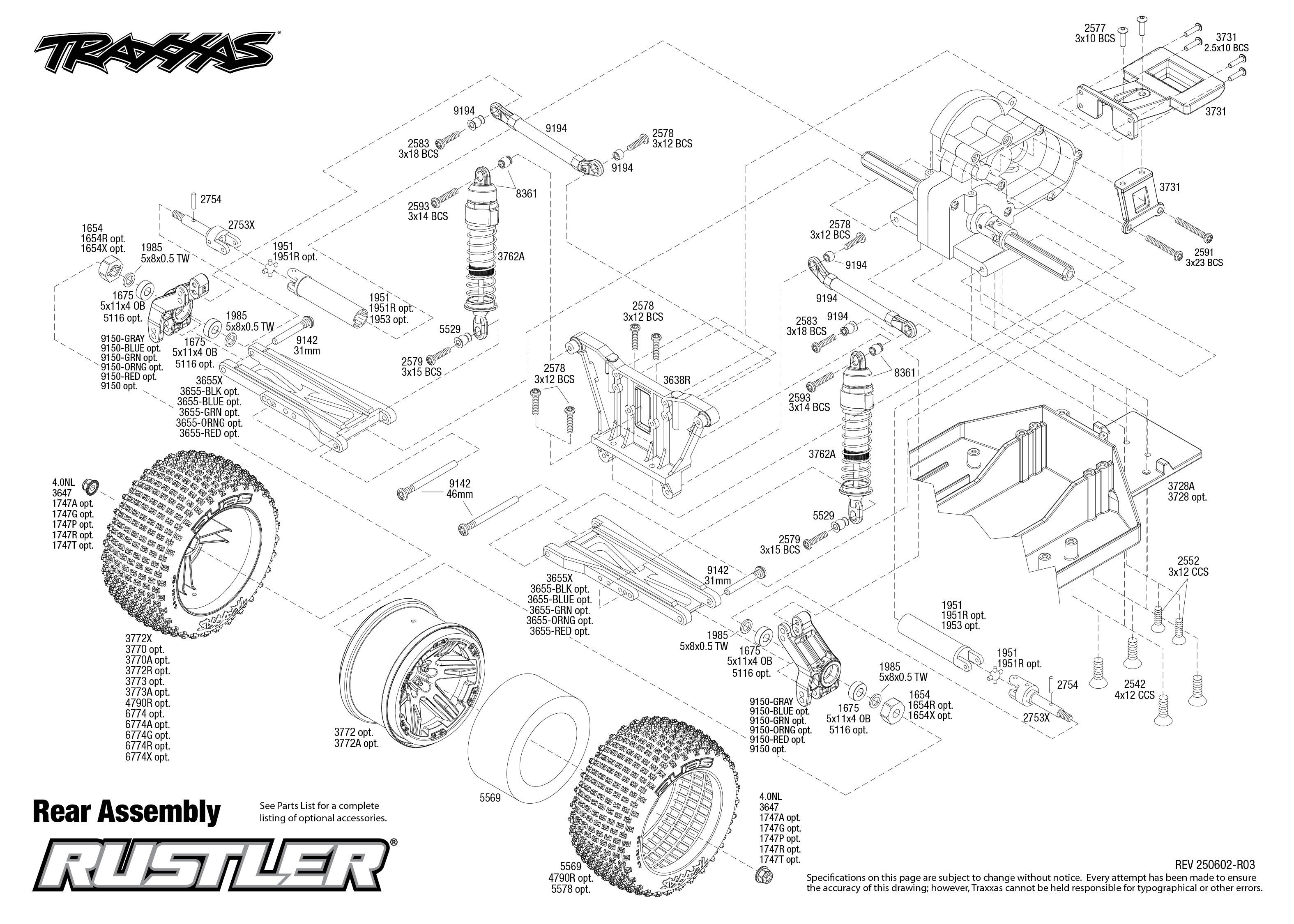

Rustler (37254-8) Rear Assembly Exploded View
rustler-2wd-xl-5-37254-8

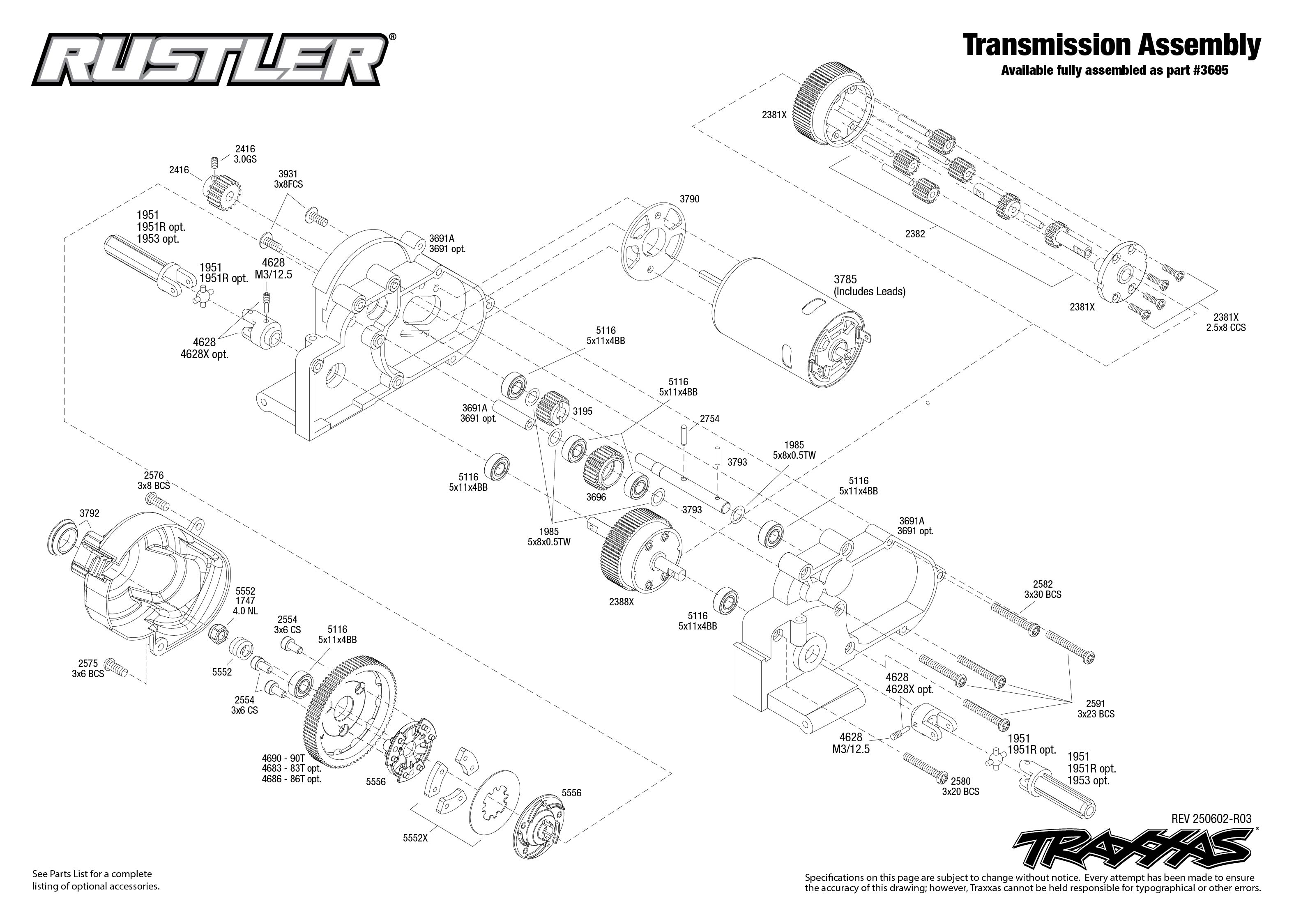

Rustler (37254-8) Transmission Assembly Exploded View
rustler-2wd-xl-5-37254-8
