Mini Slash 4X4 108164-1
On this page you will find the complete exploded diagram of the Traxxas Mini Slash 4X4 108164-1 All parts of the vehicle are clearly shown so you can easily see how the Mini Slash 4X4 is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Mini Slash 4X4

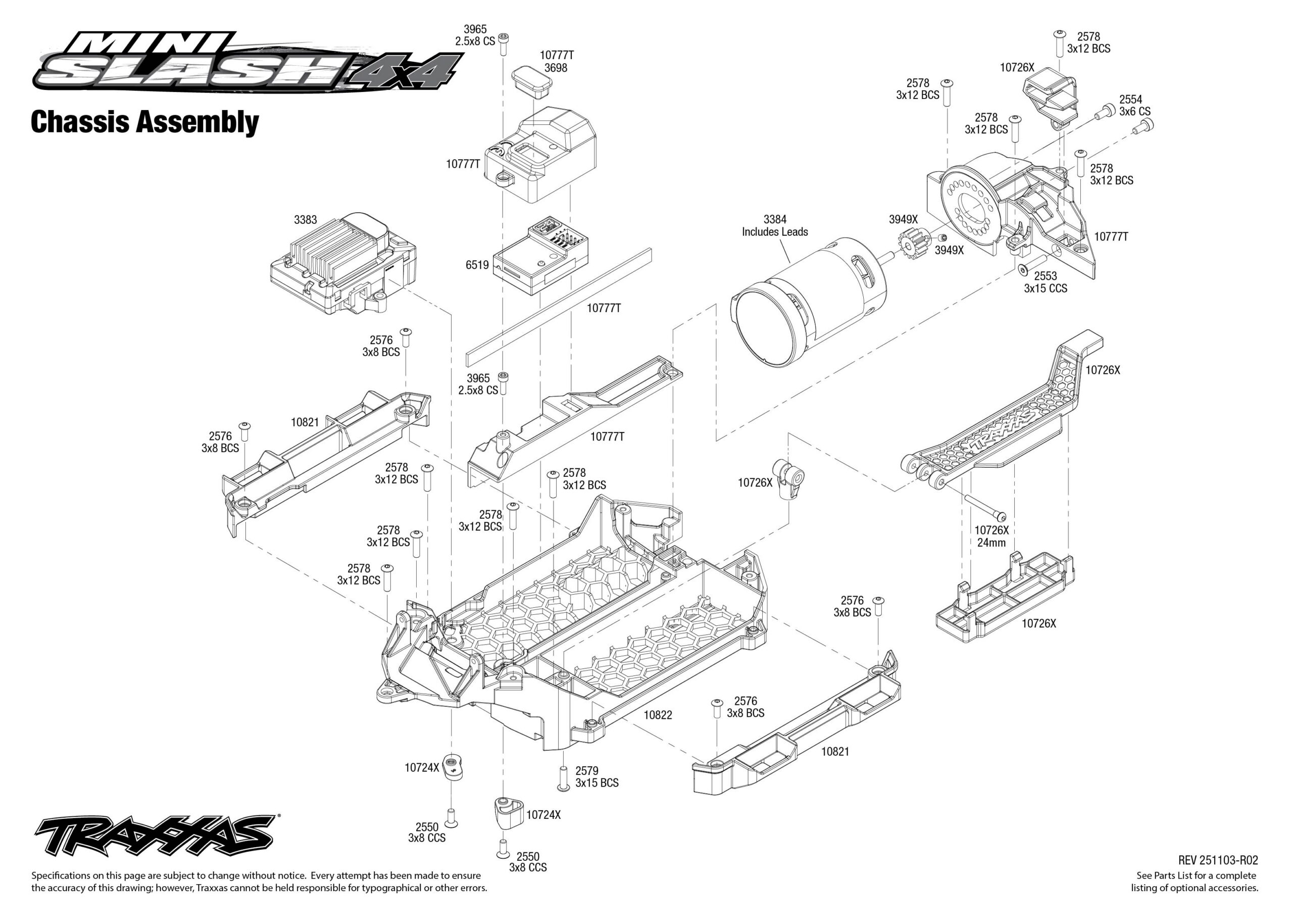

Mini Slash 4X4 (108164-1) Chassis Assembly Exploded View
mini-slash-4×4-108164-1

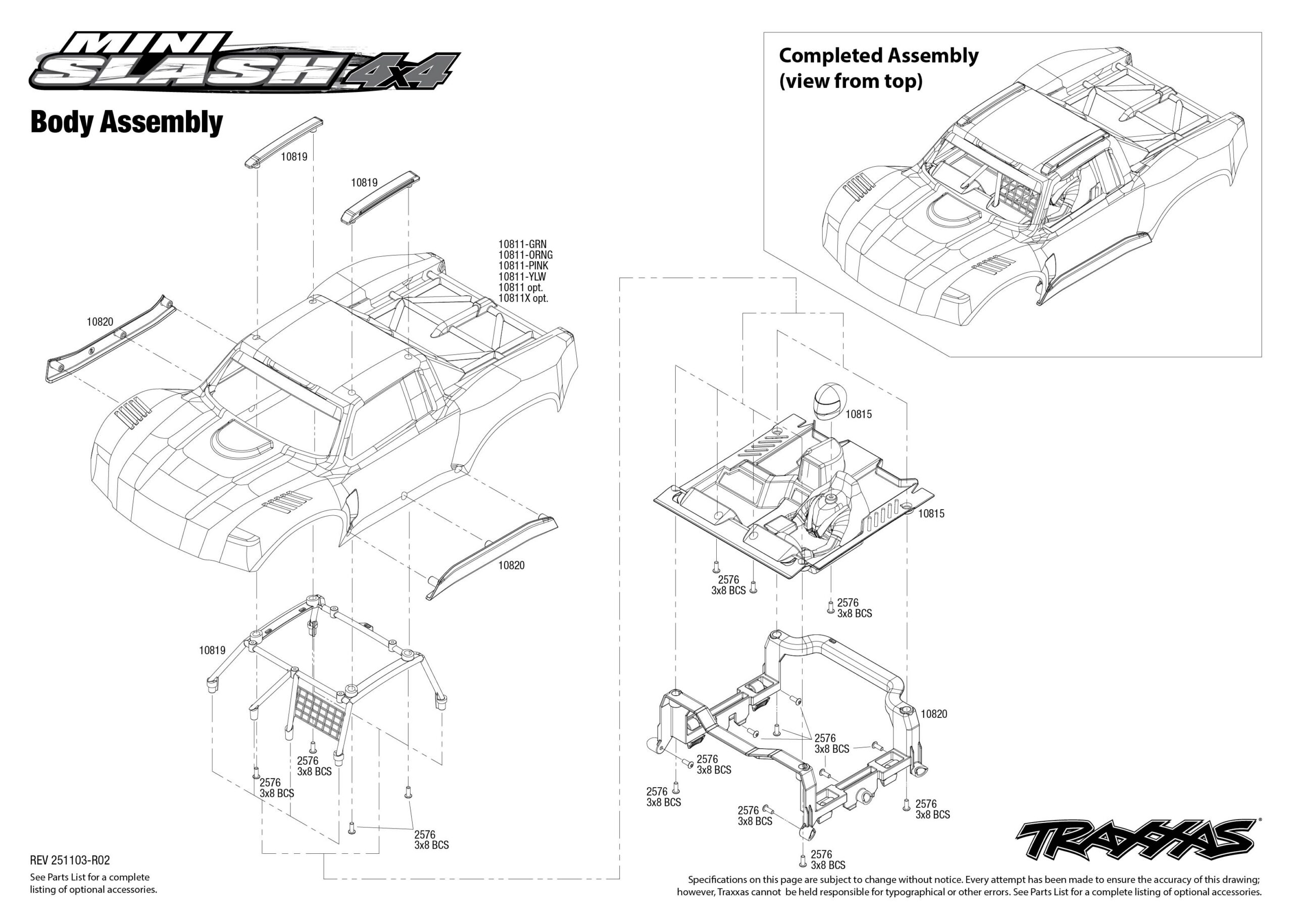

Mini Slash 4X4 (108164-1) Body Assembly Exploded View
mini-slash-4×4-108164-1

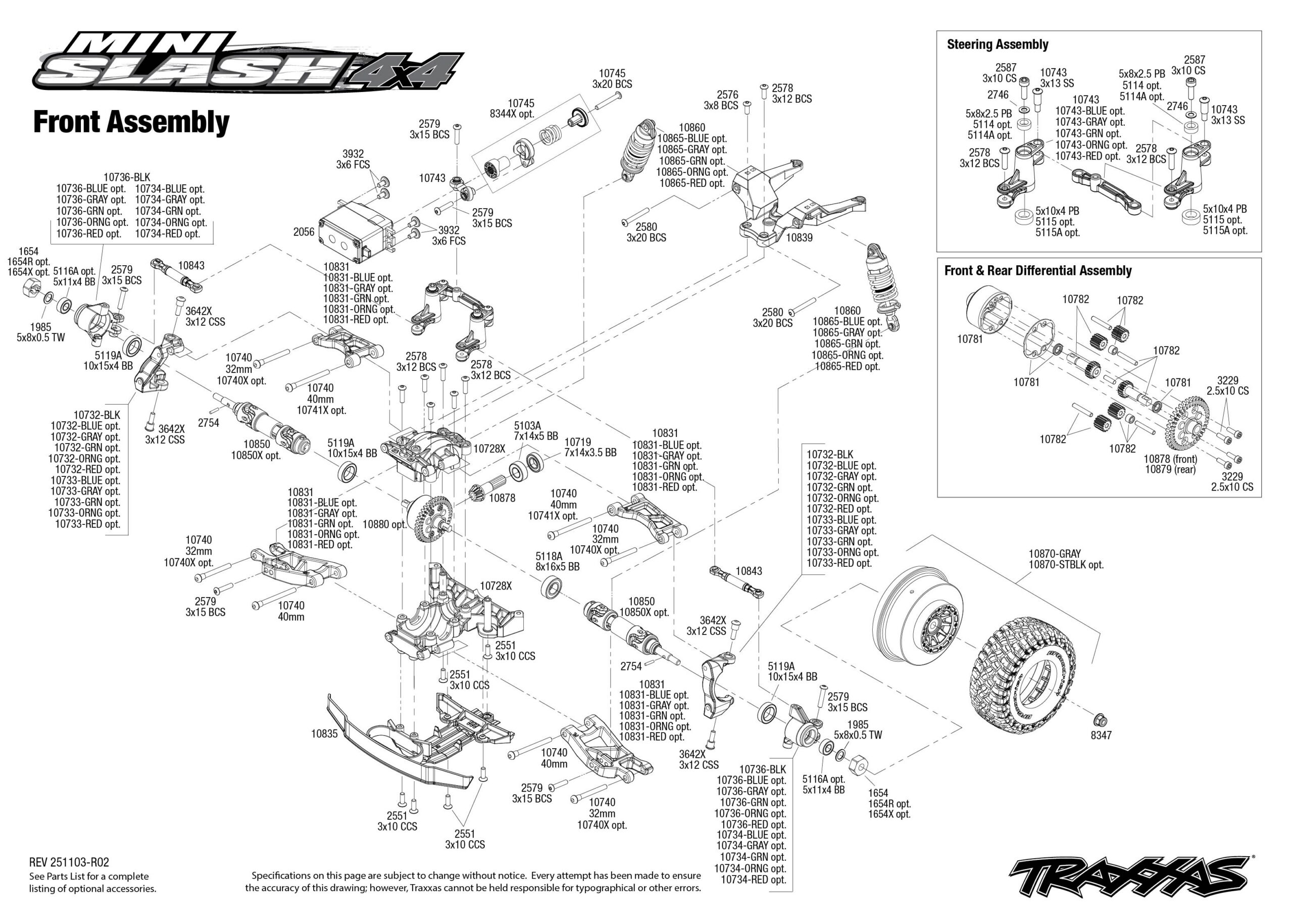

Mini Slash 4X4 (108164-1) Front Assembly Exploded View
mini-slash-4×4-108164-1

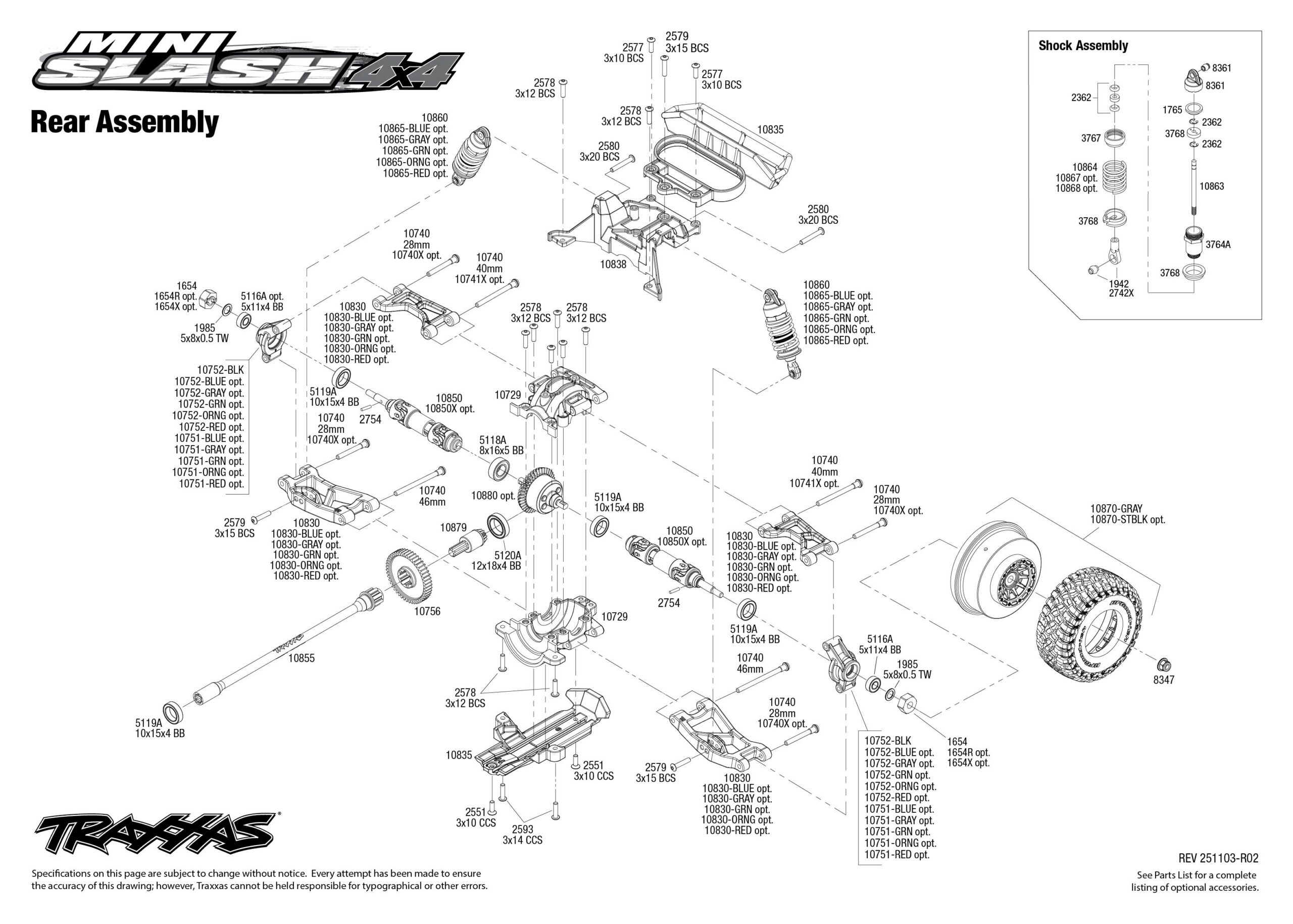

Mini Slash 4X4 (108164-1) Rear Assembly Exploded View
mini-slash-4×4-108164-1

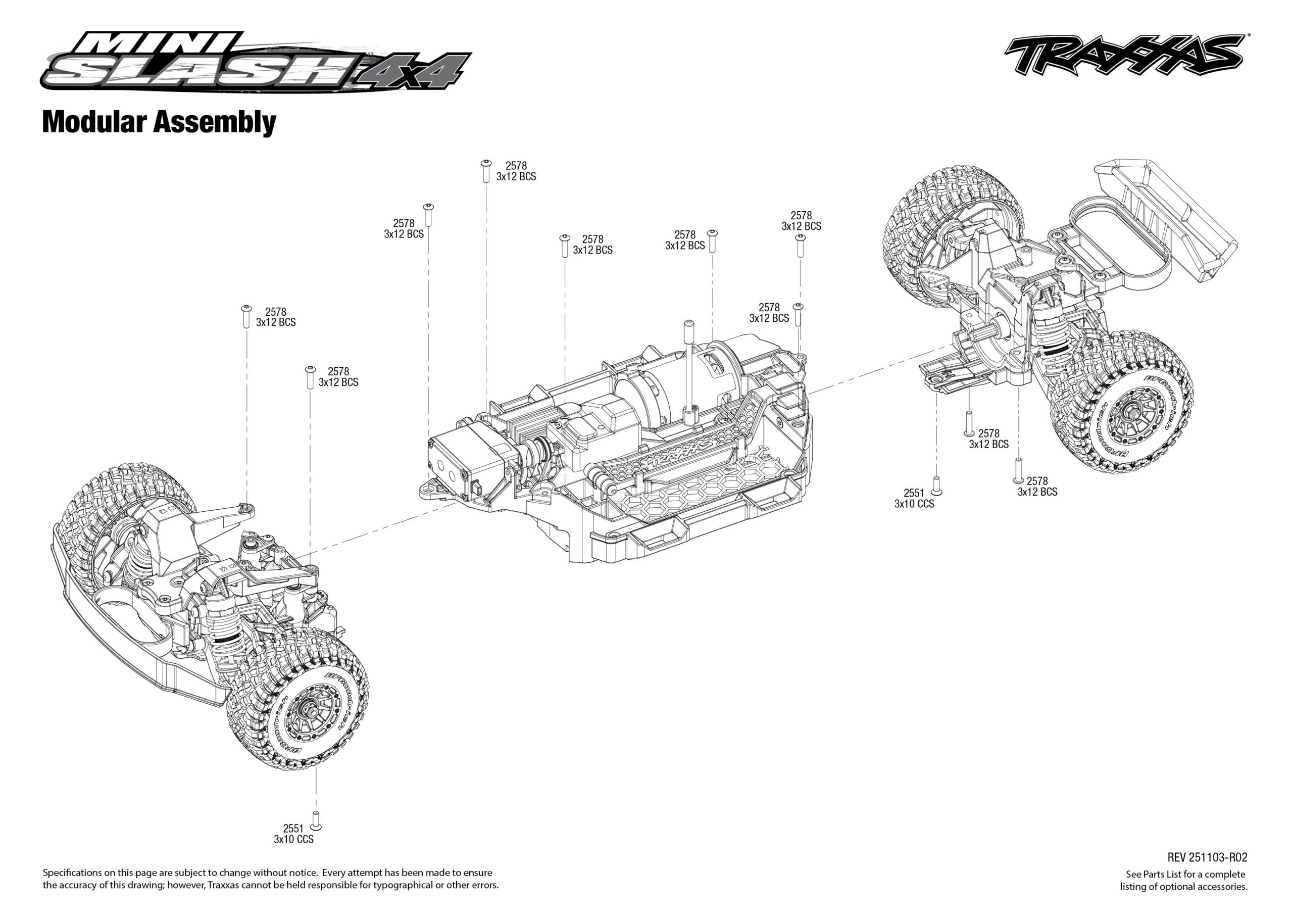

Mini Slash 4X4 (108164-1) Modular Assembly Exploded View
mini-slash-4×4-108164-1
