Maxx 4X4 v1 89076-4 oud
On this page you will find the complete exploded diagram of the Traxxas Maxx 4X4 v1 89076-4 oud All parts of the vehicle are clearly shown so you can easily see how the Maxx 4X4 v1 is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your Maxx 4X4 v
Traxxas Maxx® (89076-4) Rear Assembly Exploded View
maxx-4×4-v1-89076-4-oud

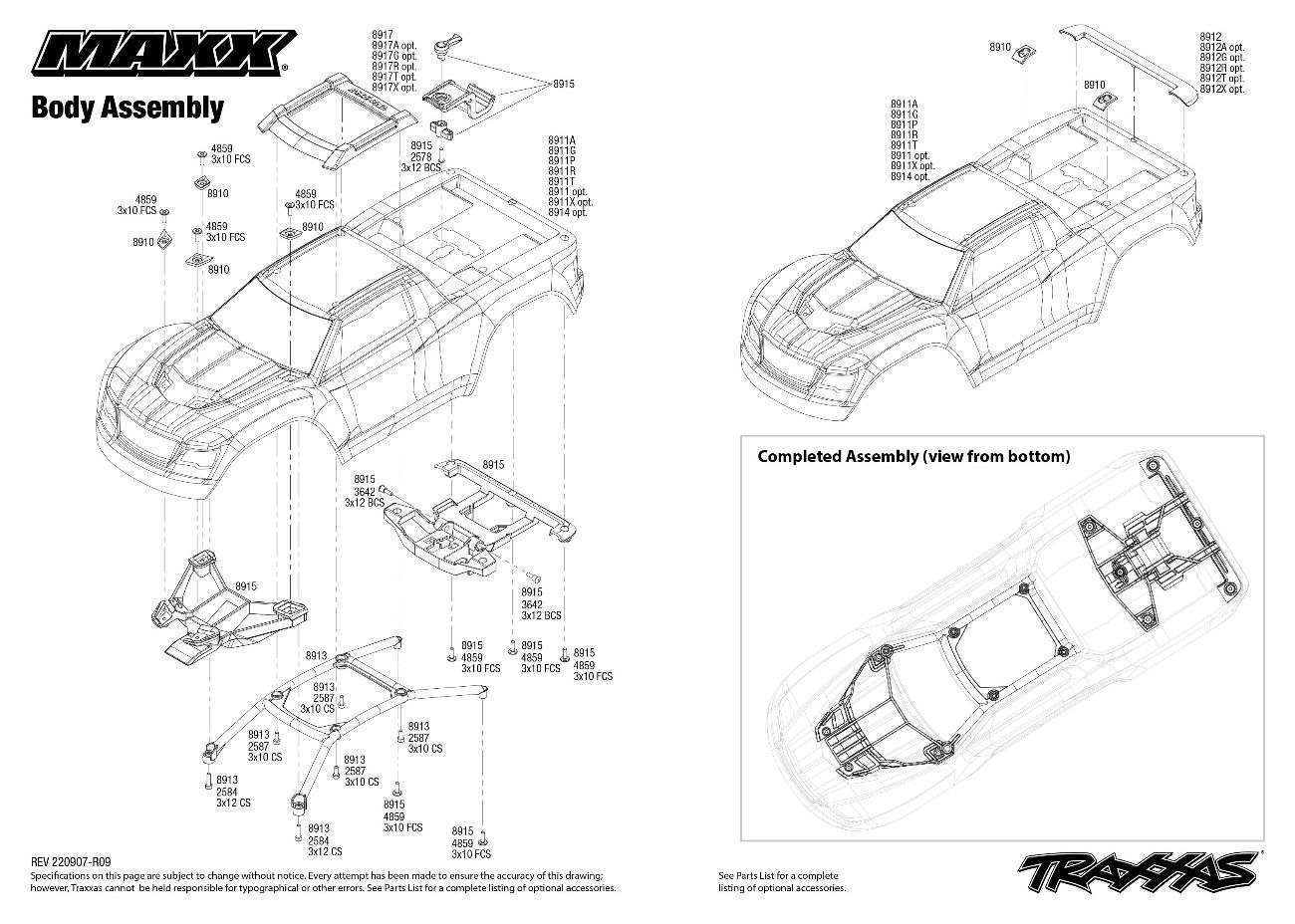

Traxxas Maxx® (89076-4) Body Assembly Exploded View
maxx-4×4-v1-89076-4-oud

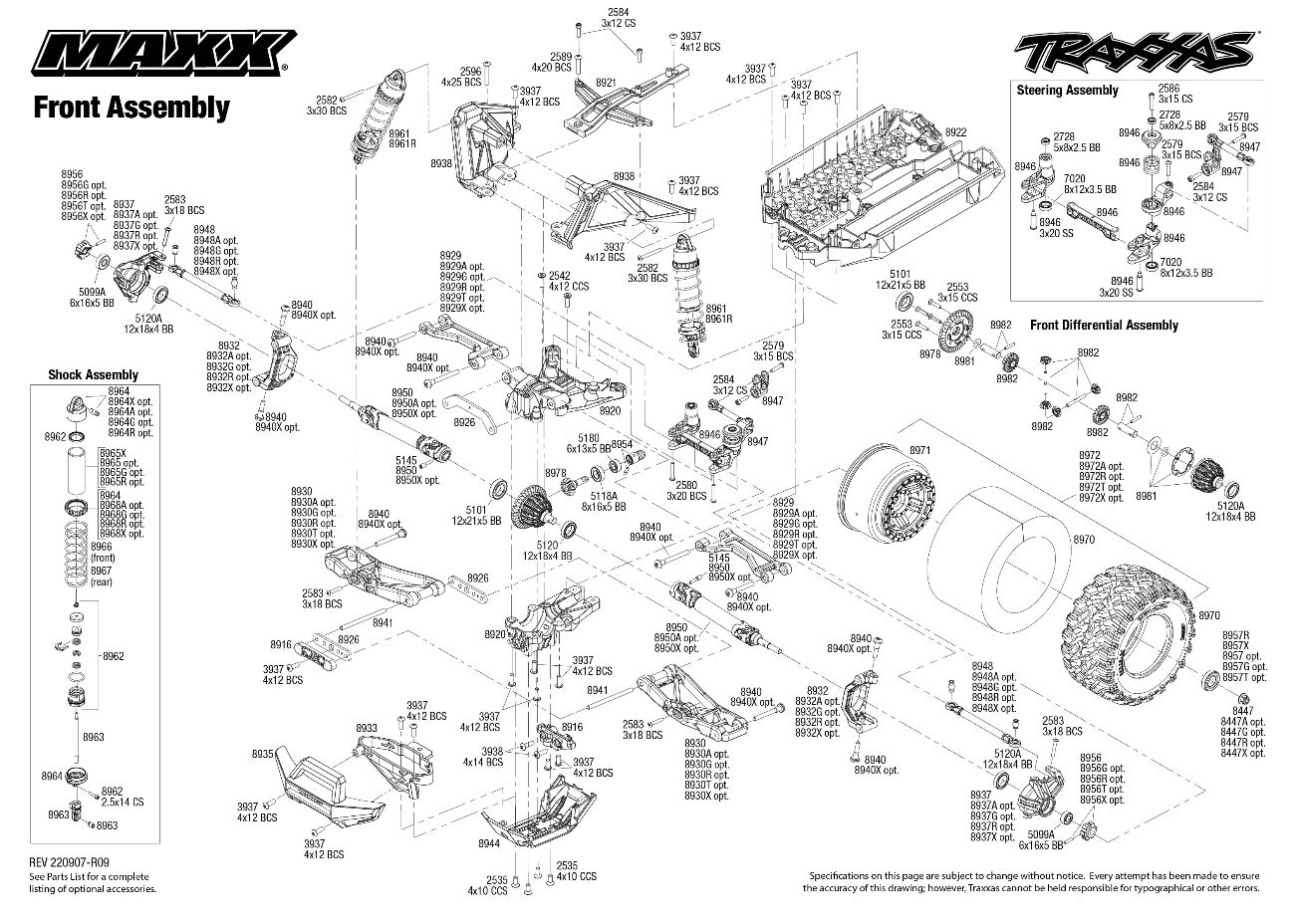

Traxxas Maxx® (89076-4) Front Assembly Exploded View
maxx-4×4-v1-89076-4-oud

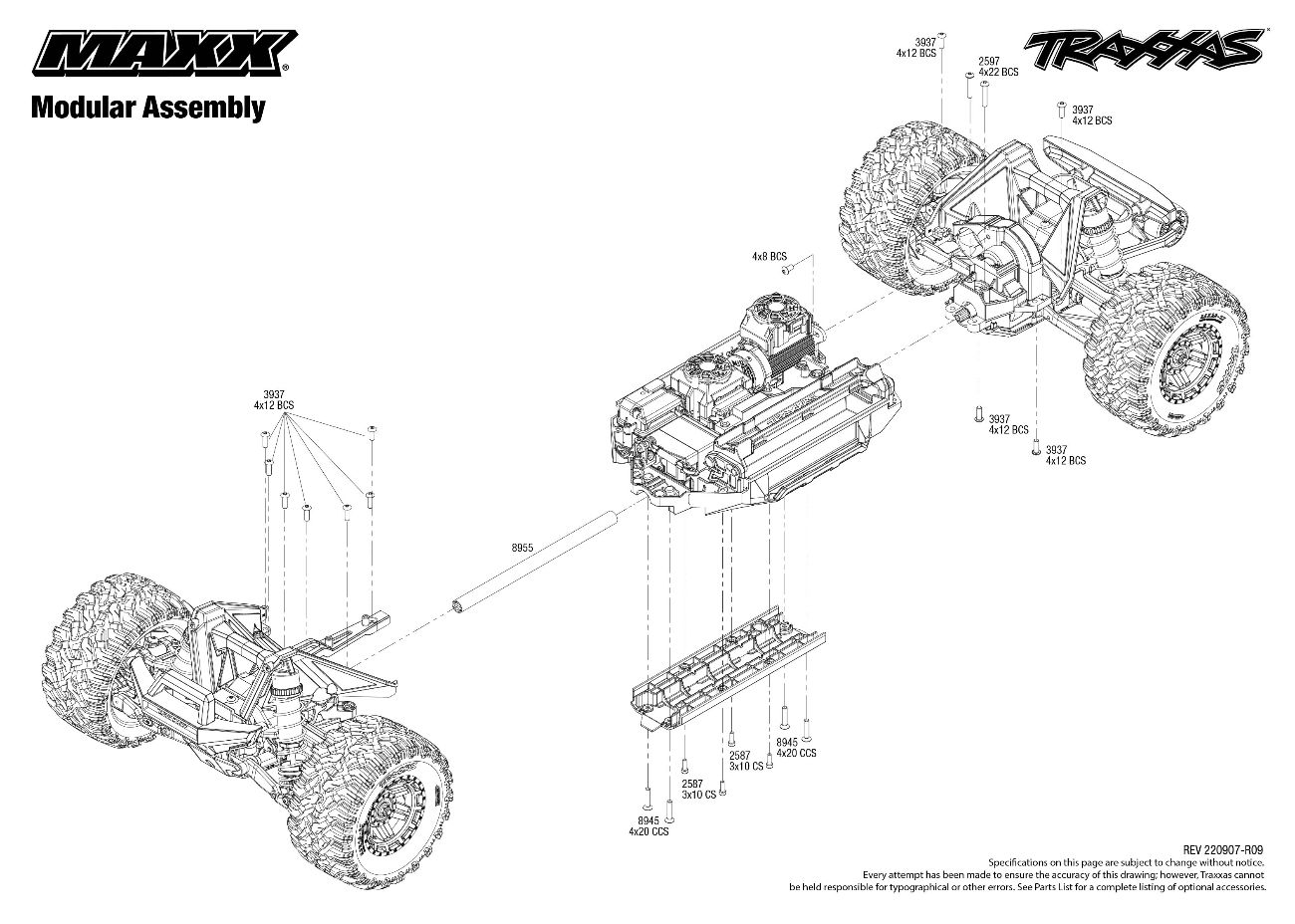

Traxxas Maxx® (89076-4) Modular Assembly Exploded View
maxx-4×4-v1-89076-4-oud

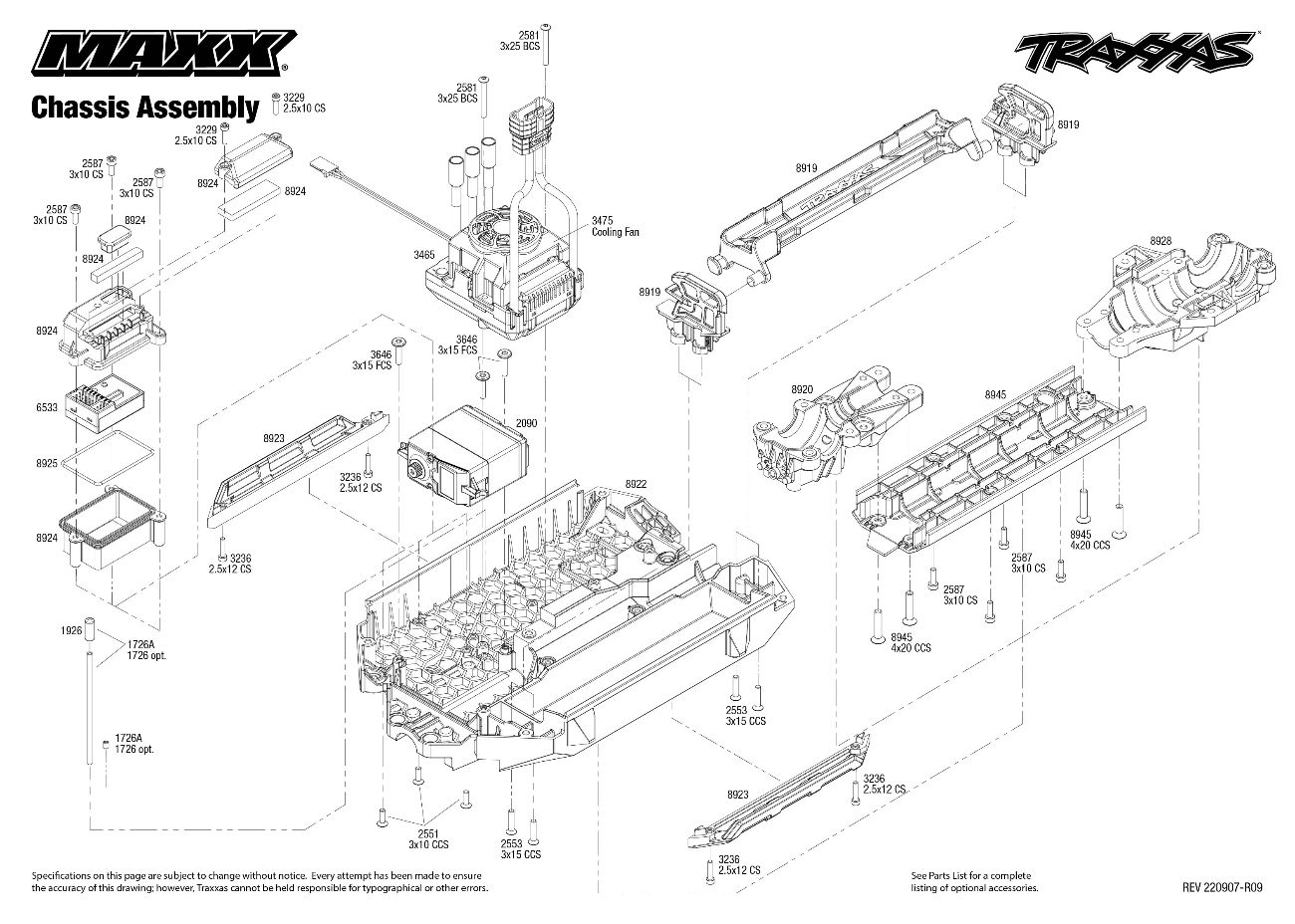

Traxxas Maxx® (89076-4) Chassis Assembly Exploded View
maxx-4×4-v1-89076-4-oud

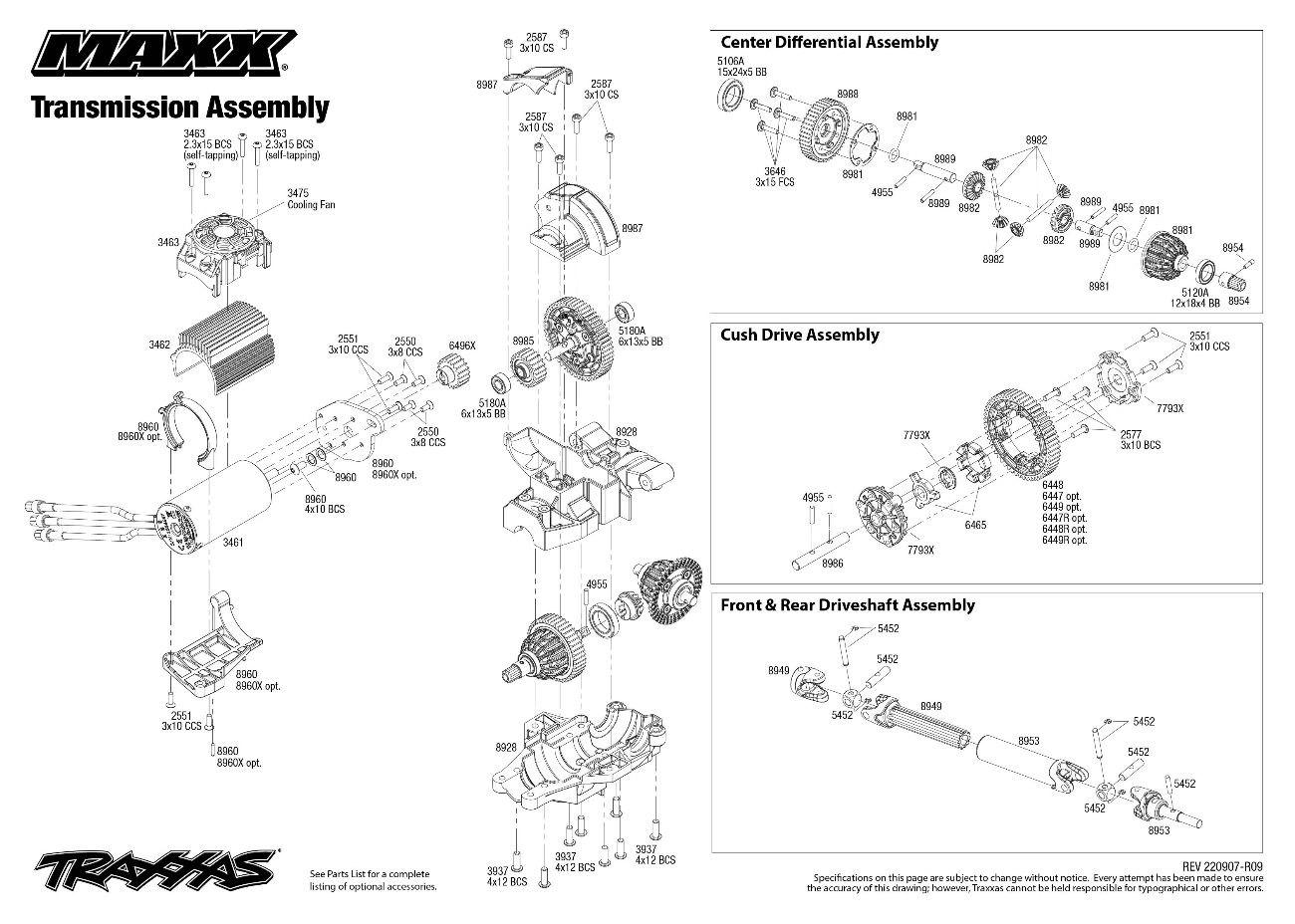

Traxxas Maxx® (89076-4) Transmission Assembly Exploded View
maxx-4×4-v1-89076-4-oud
