E-Revo VXL Brushless 2.0 86086-4
On this page you will find the complete exploded diagram of the Traxxas E-Revo VXL Brushless 2.0 86086-4. All parts of the vehicle are clearly shown so you can easily see how the E-Revo VXL Brushless 2.0 is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your E-Revo VXL Brushless 2.0.

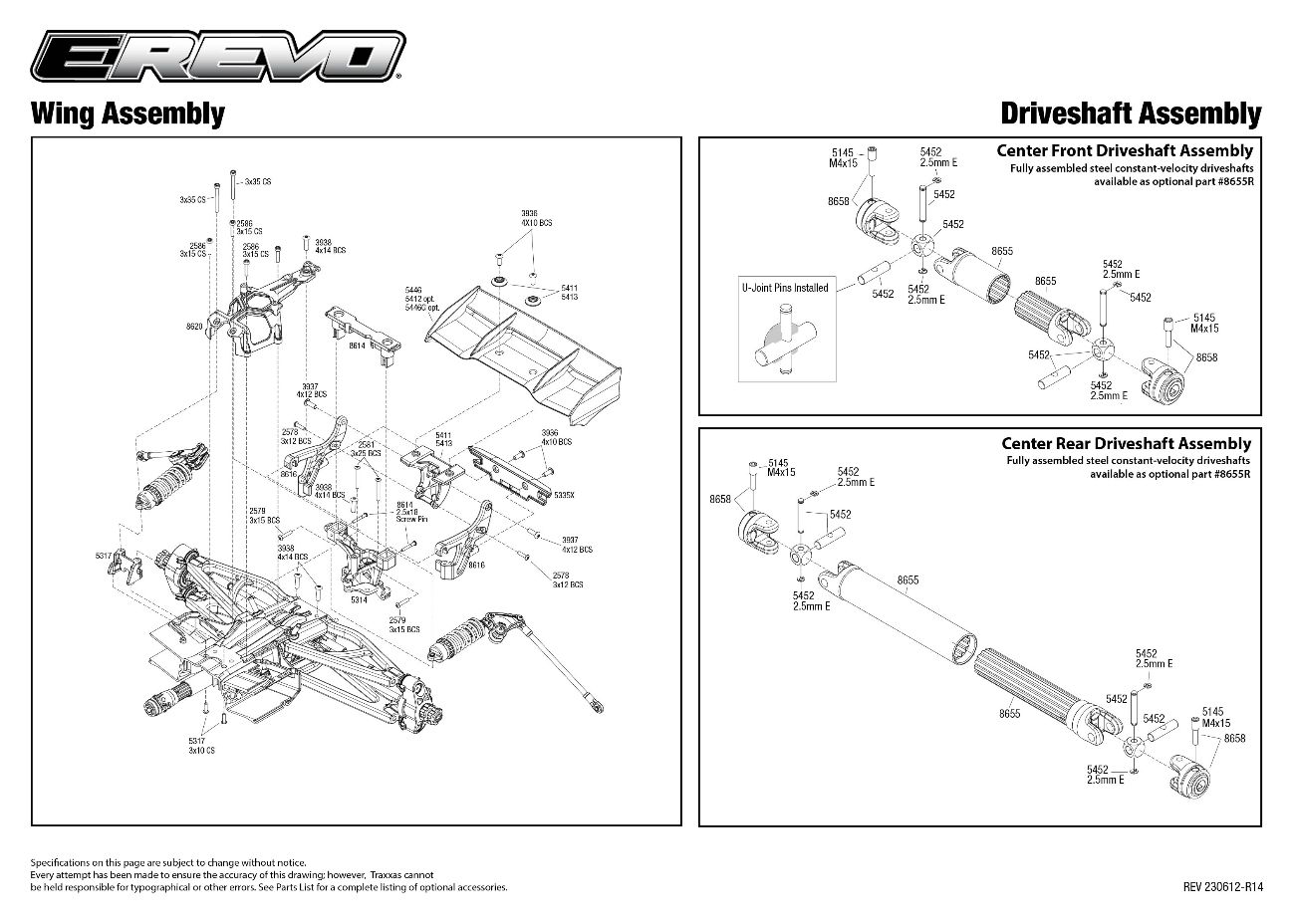

E-Revo VXL Brushless (86086-4) Driveshafts Assembly Exploded View
e-revo-vxl-brushless-2-0-86086-4

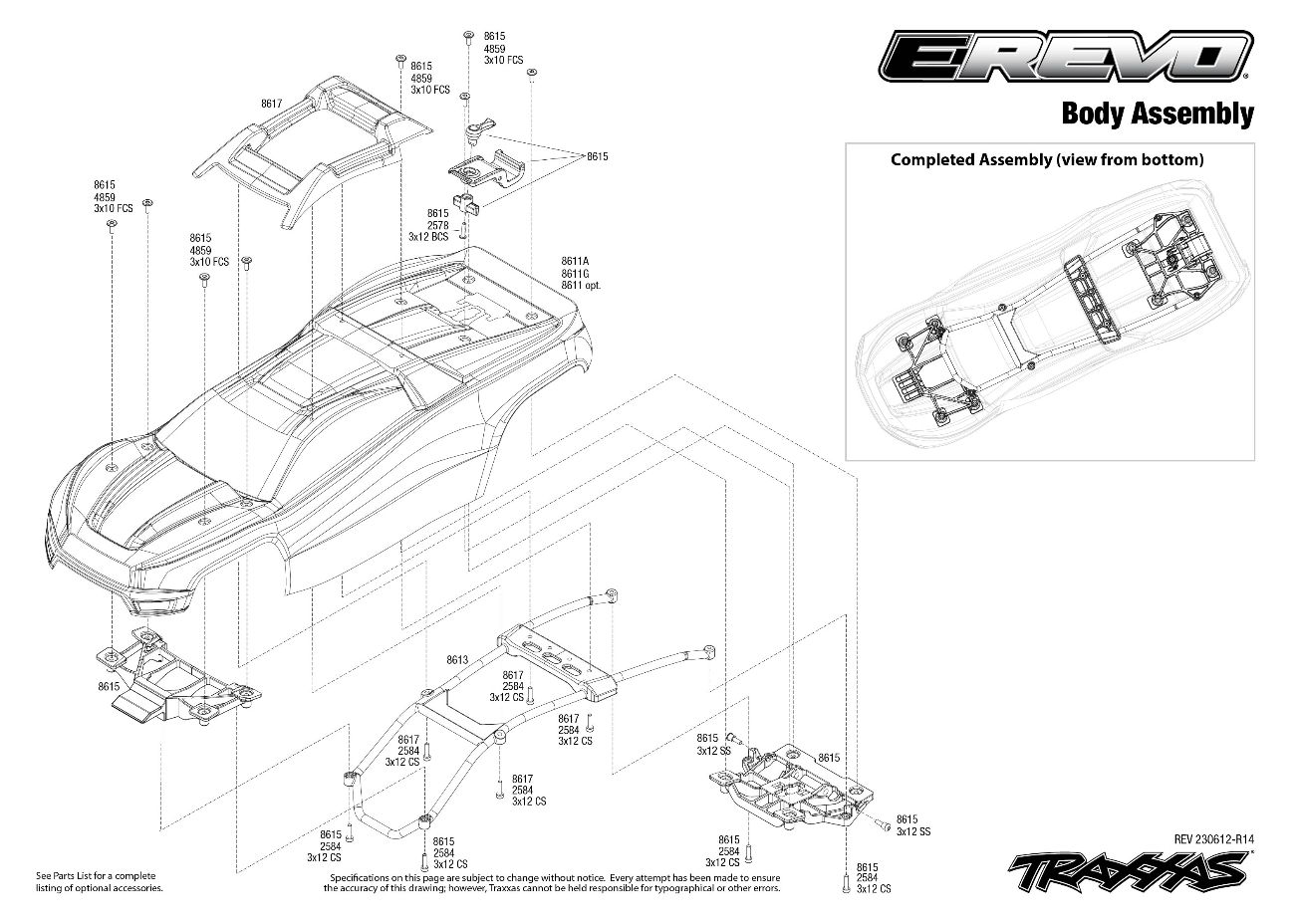

E-Revo VXL Brushless (86086-4) Body Assembly Exploded View
e-revo-vxl-brushless-2-0-86086-4

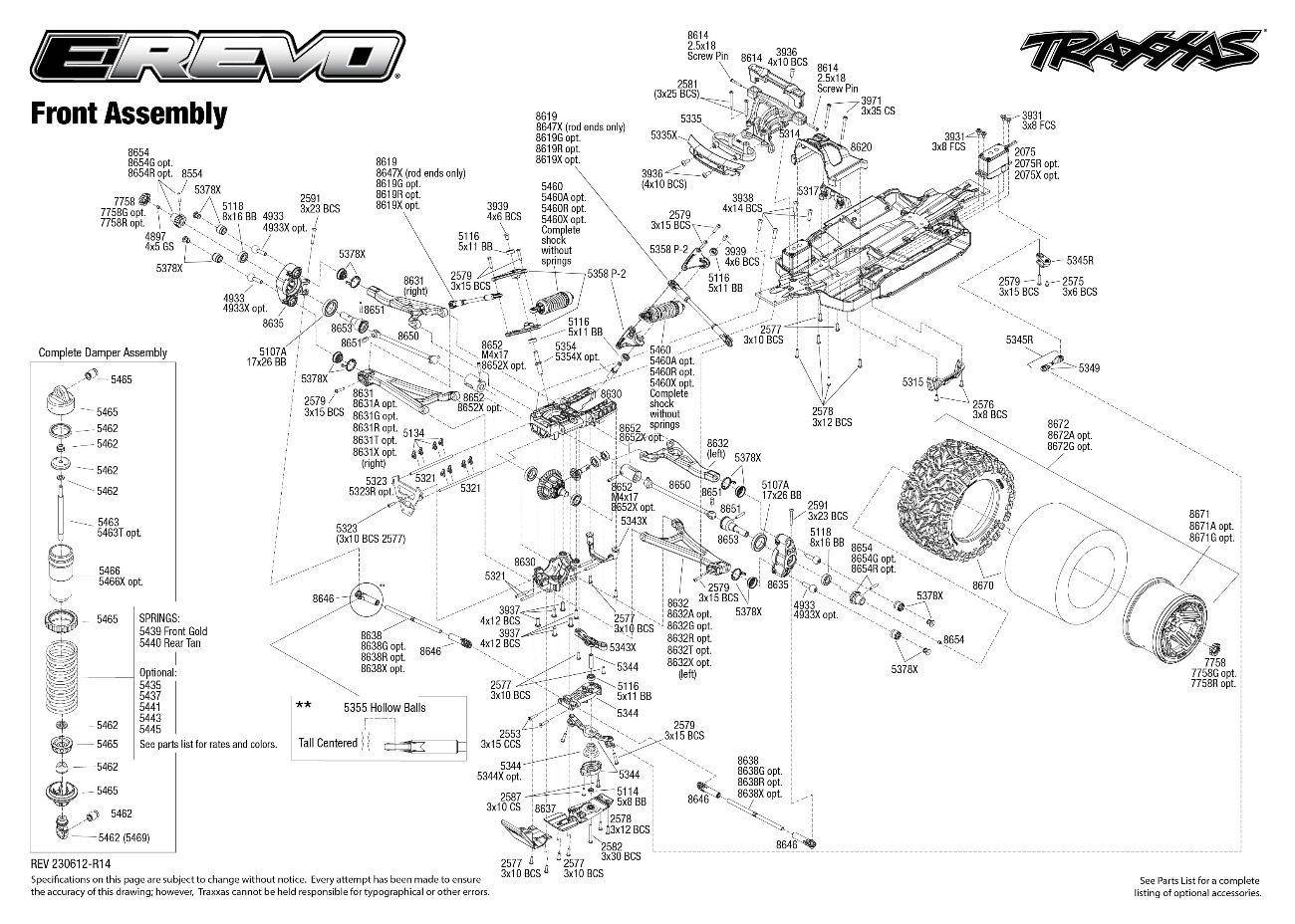

E-Revo VXL Brushless (86086-4) Front Assembly Exploded View
e-revo-vxl-brushless-2-0-86086-4

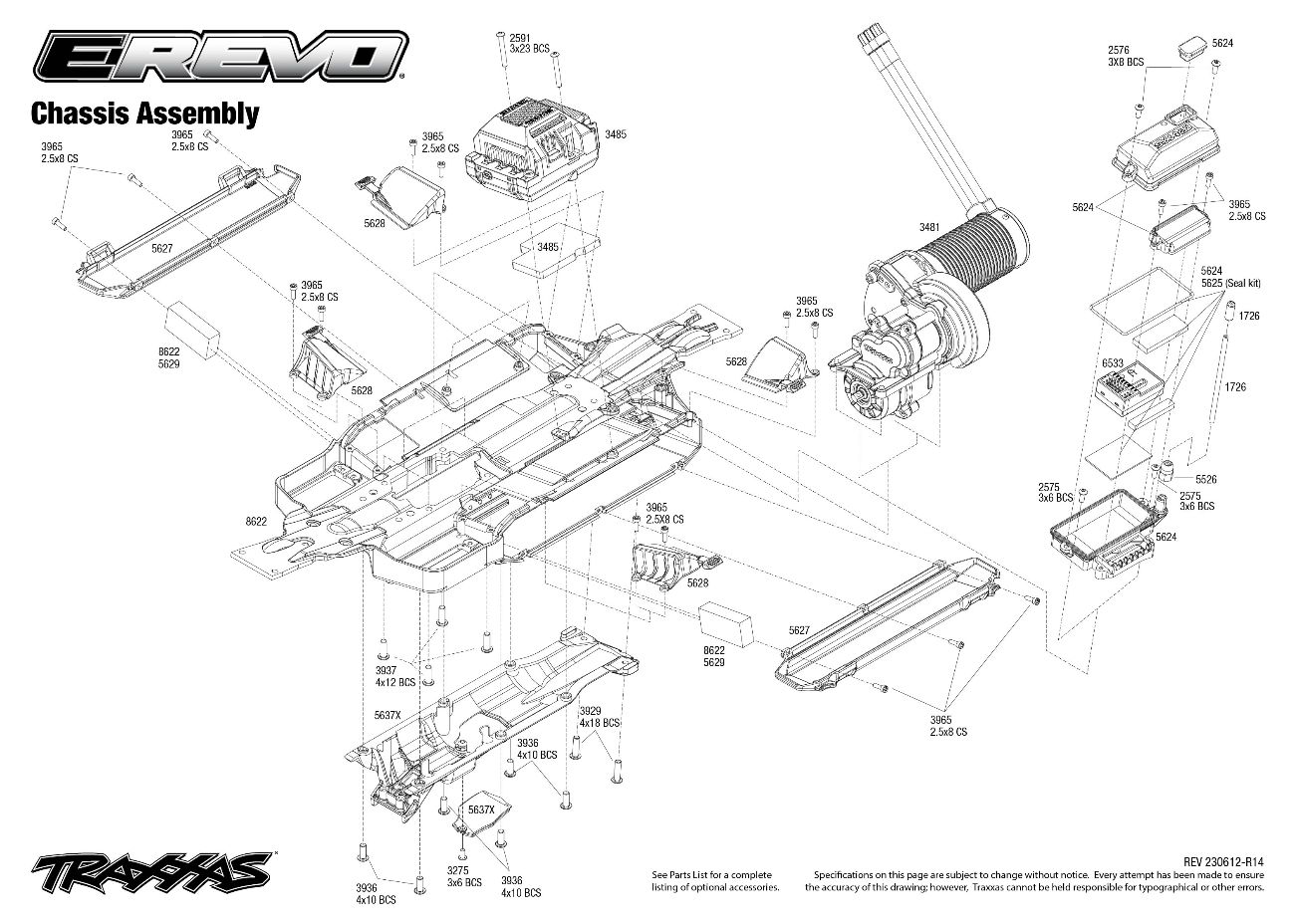

E-Revo VXL Brushless (86086-4) Chassis Assembly Exploded View
e-revo-vxl-brushless-2-0-86086-4

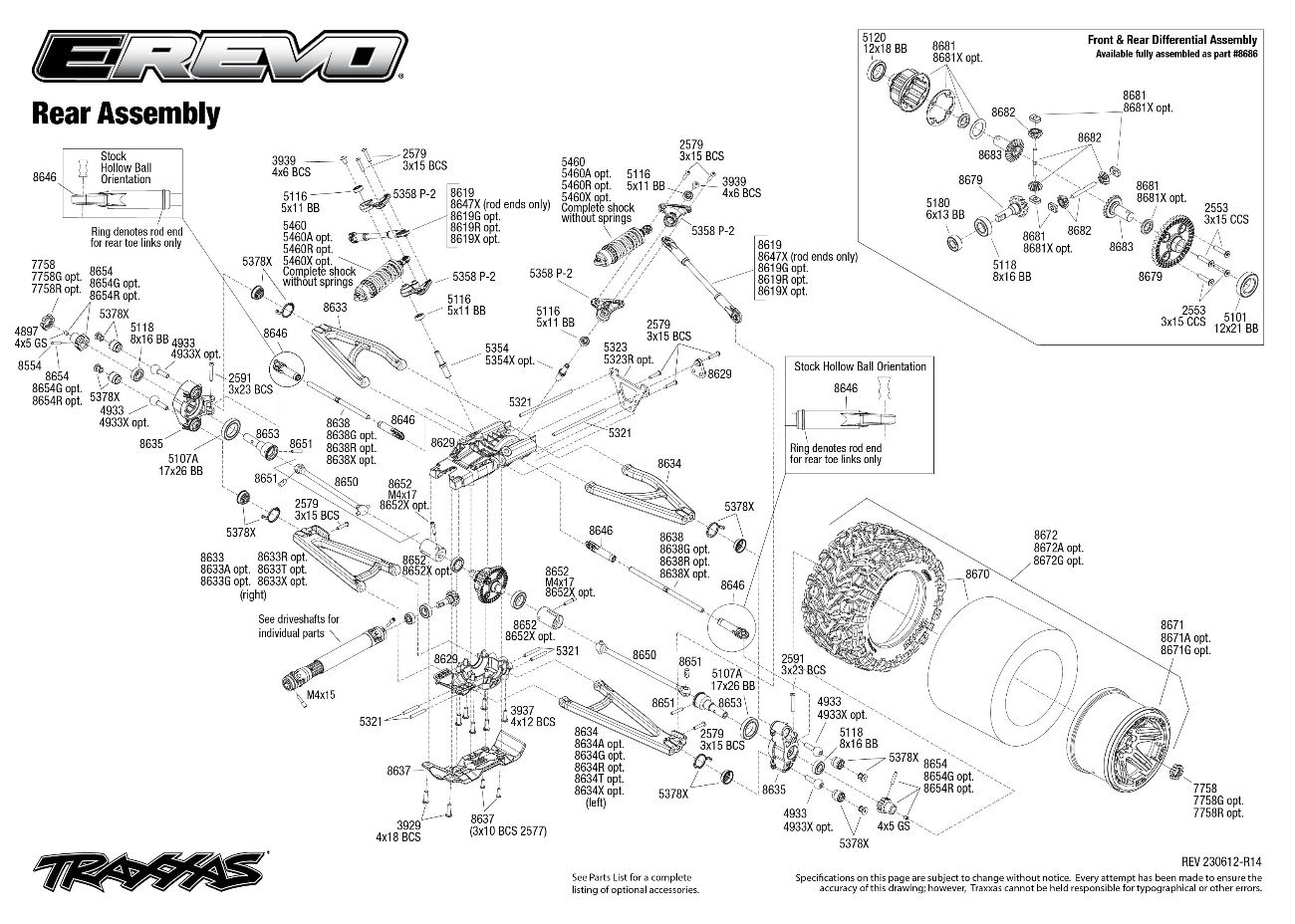

E-Revo VXL Brushless (86086-4) Rear Assembly Exploded View
e-revo-vxl-brushless-2-0-86086-4

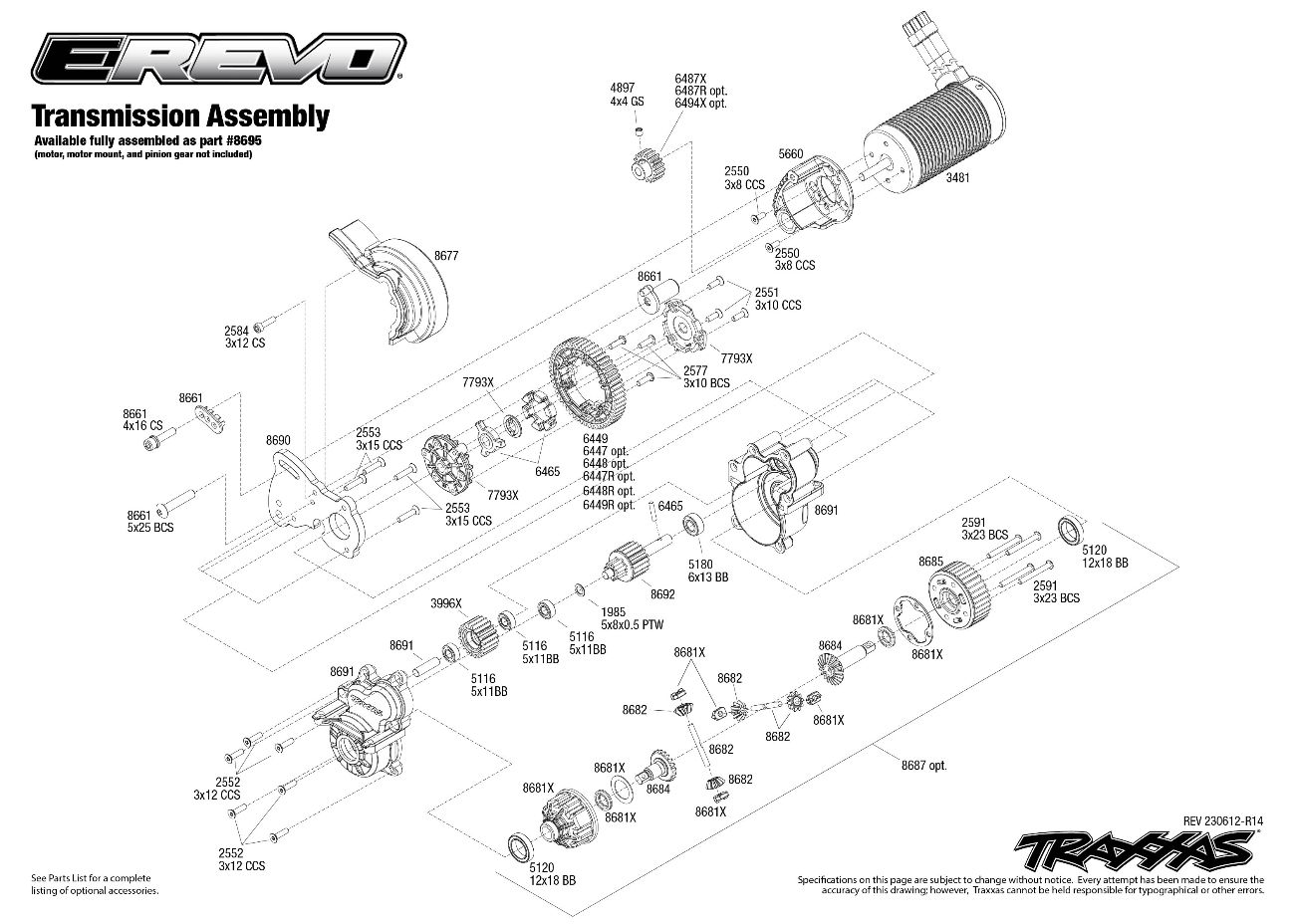

E-Revo VXL Brushless (86086-4) Transmission Assembly Exploded View
e-revo-vxl-brushless-2-0-86086-4
