E-Revo 6S Brushless 56086-4 old
On this page you will find the complete exploded diagram of the Traxxas E-Revo 6S Brushless 56086-4. All parts of the vehicle are clearly shown so you can easily see how the E-Revo 6S Brushless is assembled. Click on a part number in the diagram to go directly to the corresponding product in the shop. This makes it quick and easy to find the correct Traxxas replacement parts for maintenance, repair, or upgrades of your E-Revo 6S Brushless 56086-4.

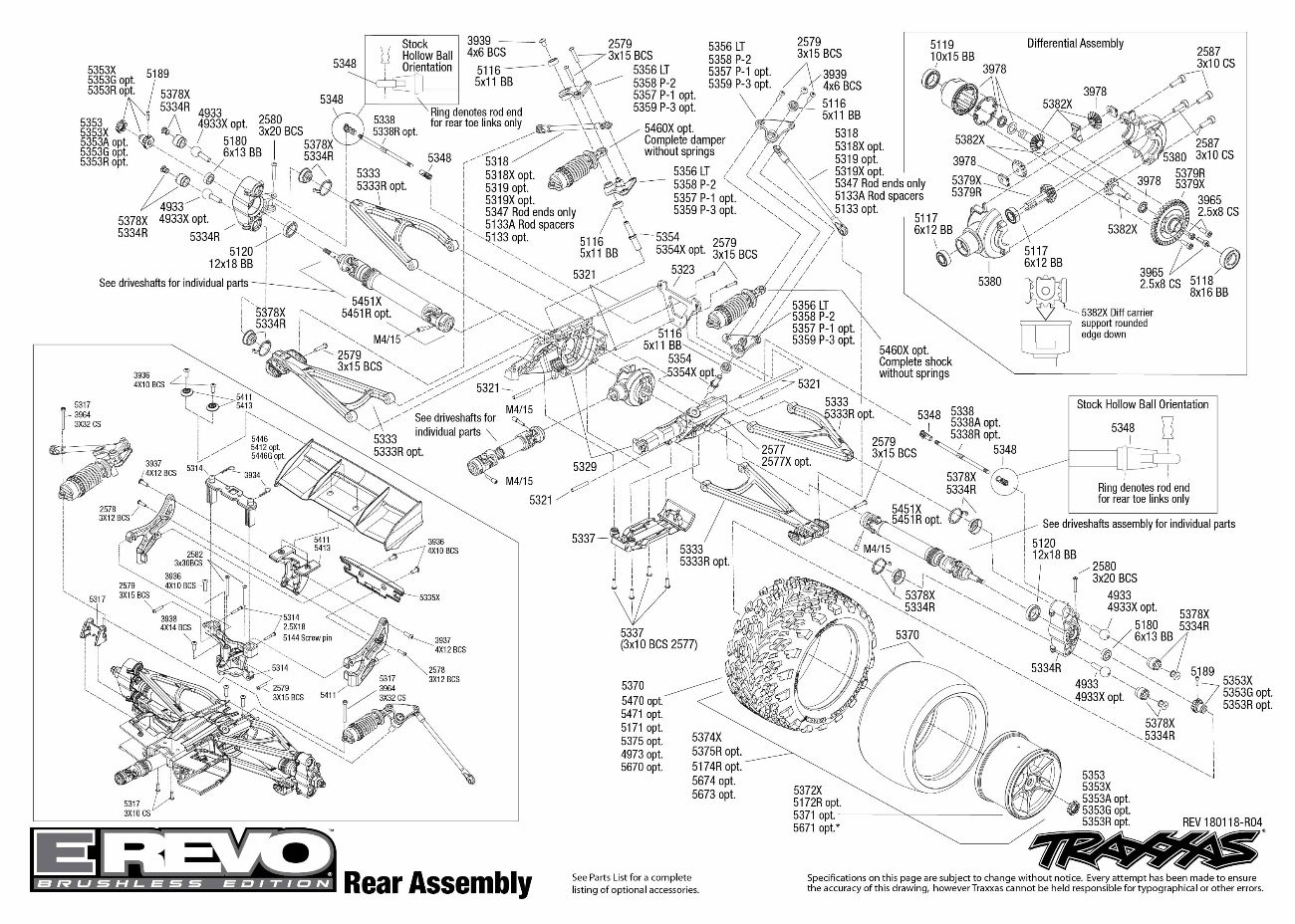

E-Revo Brushless (56086-4) Rear Assembly Exploded View
e-revo-6s-brushless-56086-4-old

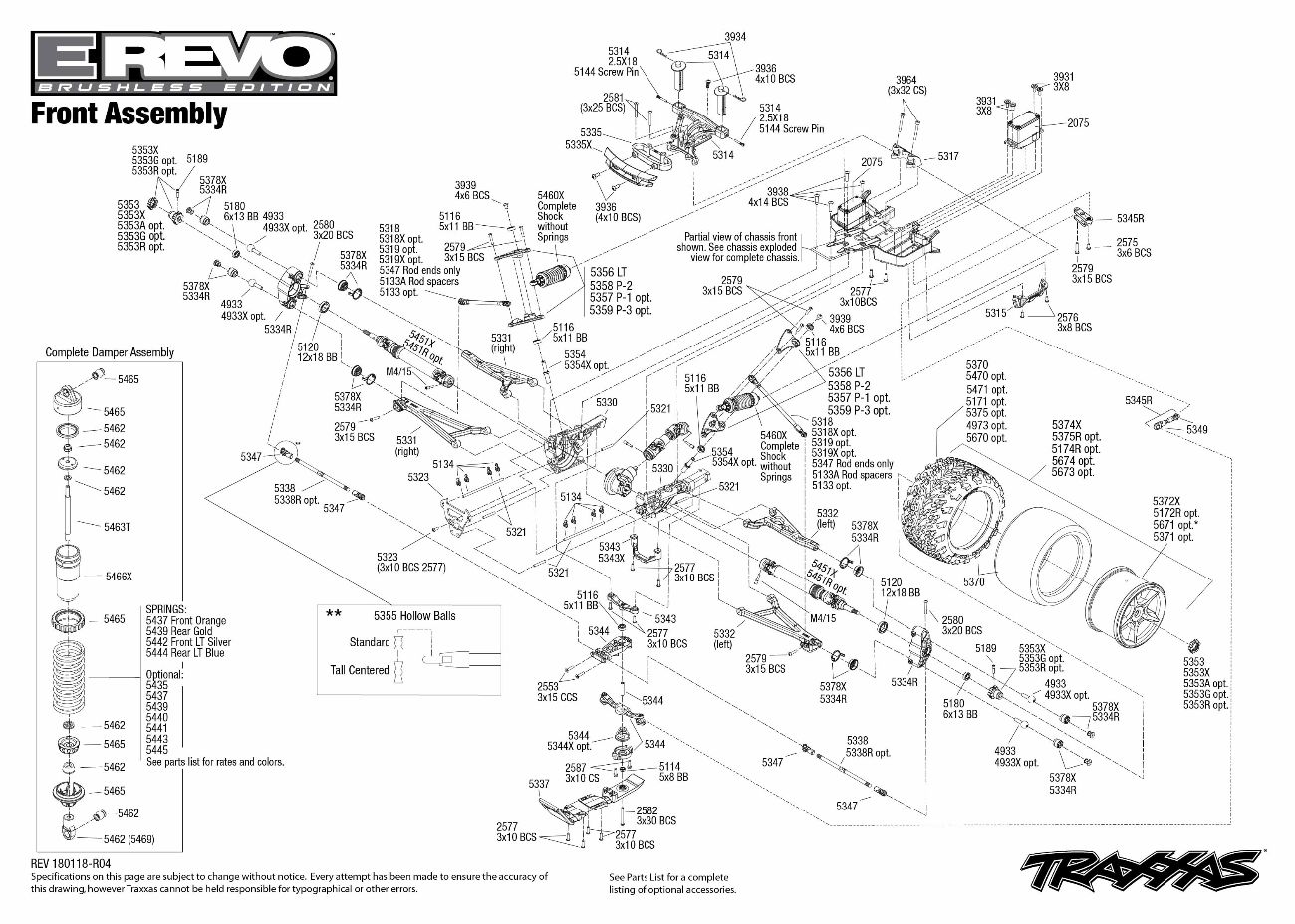

E-Revo Brushless (56086-4) Front Assembly Exploded View
e-revo-6s-brushless-56086-4-old

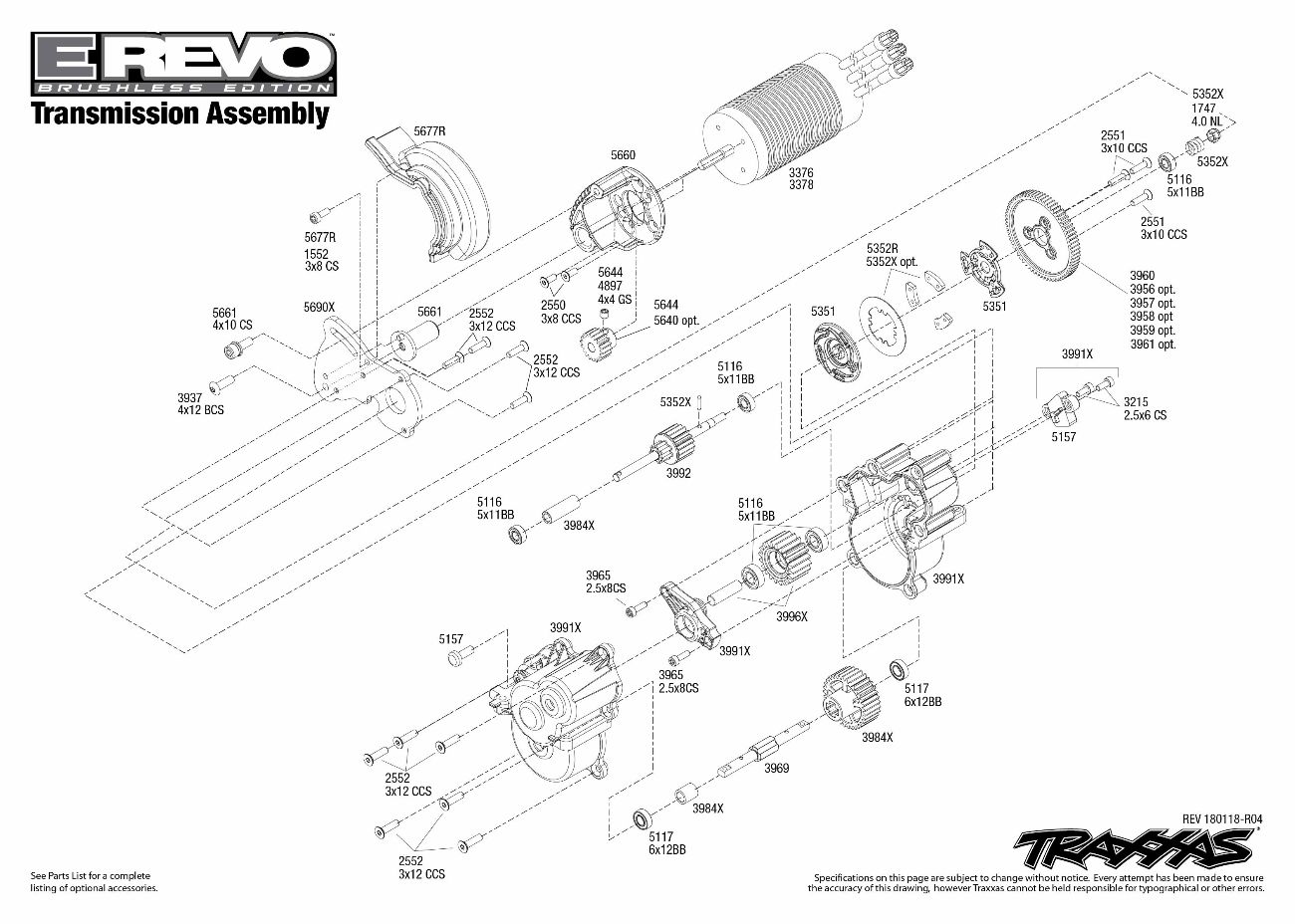

E-Revo Brushless (56086-4) Transmission Assembly Exploded View
e-revo-6s-brushless-56086-4-old

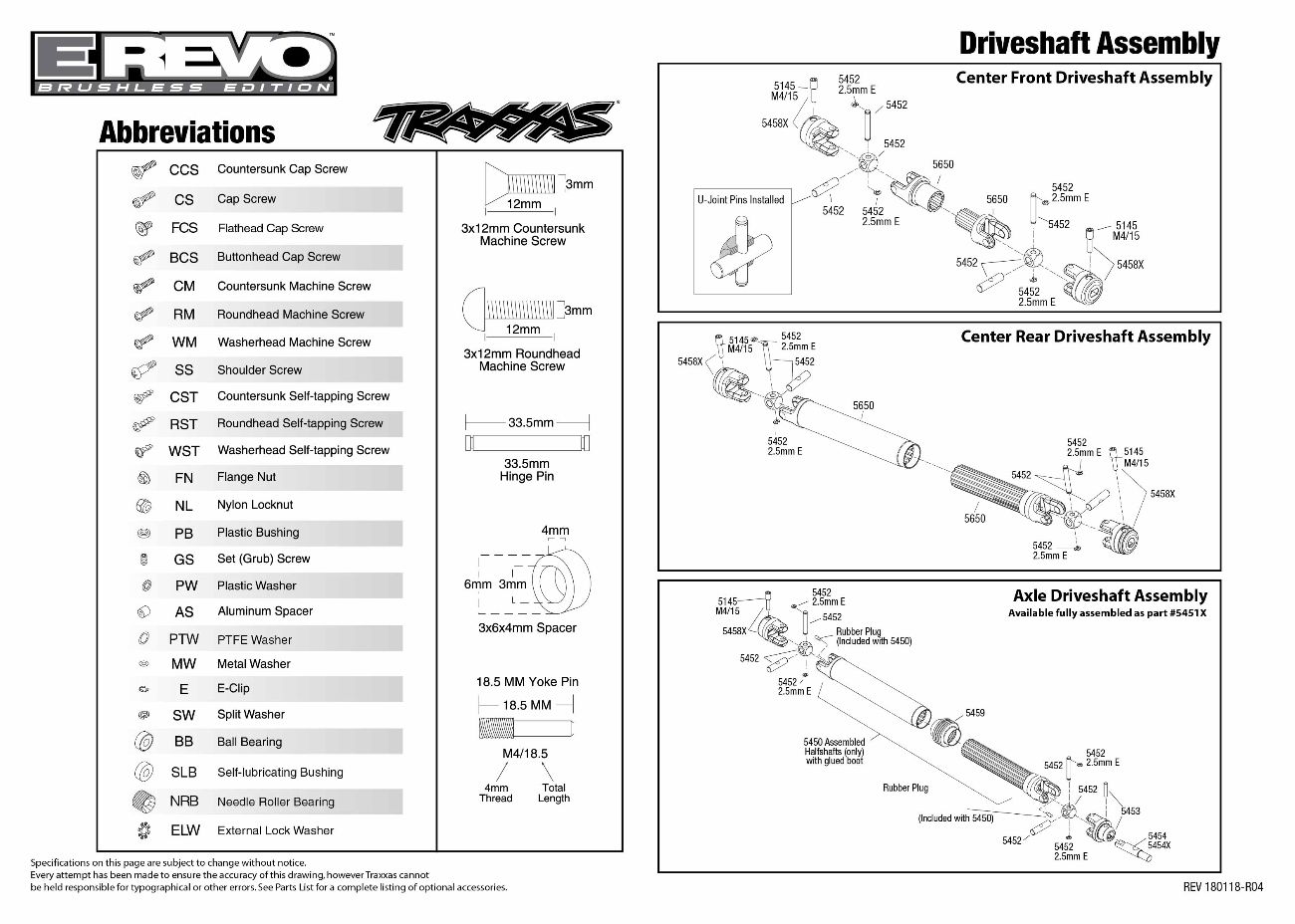

E-Revo Brushless (56086-4) Driveshafts Assembly Exploded View
e-revo-6s-brushless-56086-4-old

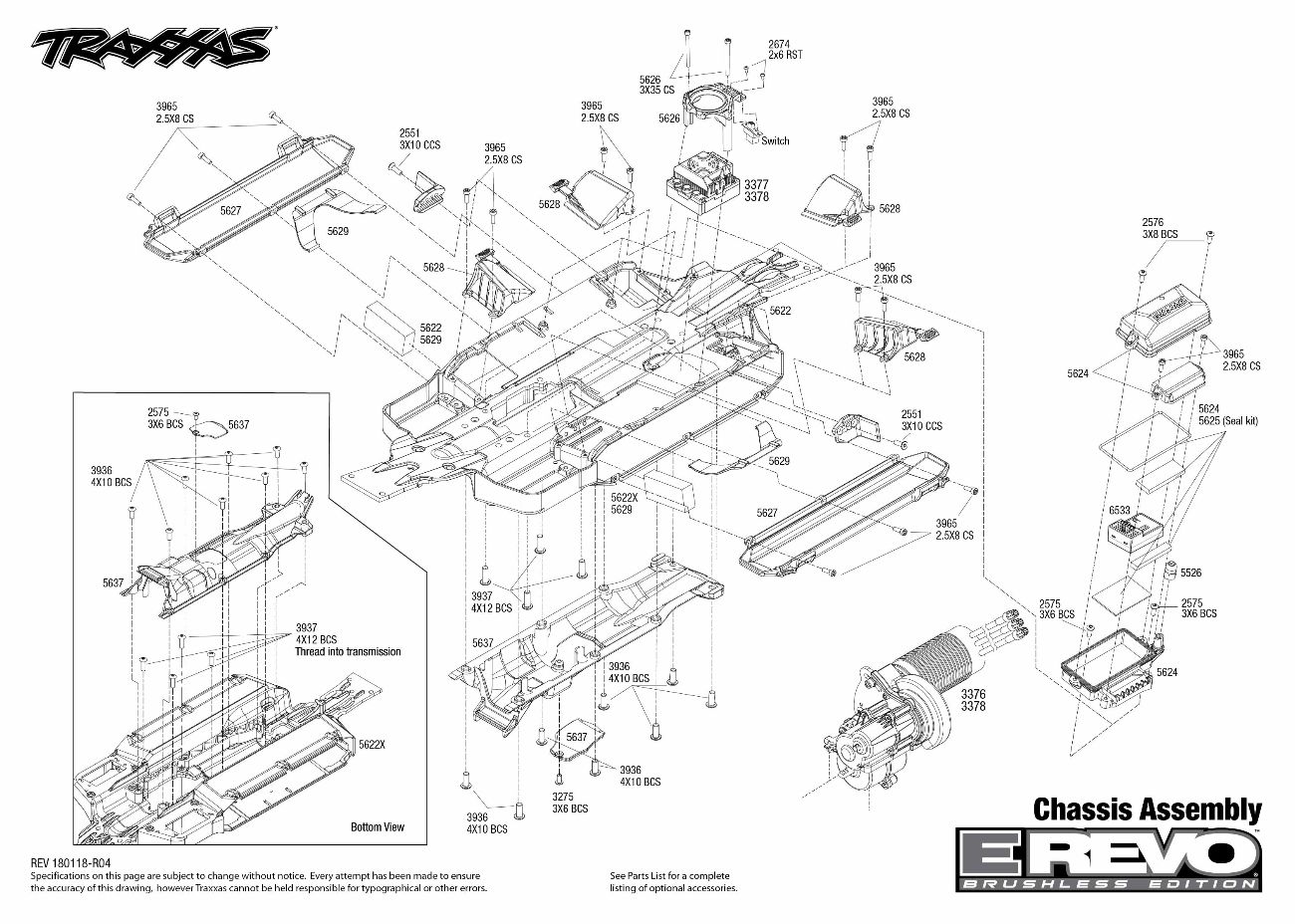

E-Revo Brushless (56086-4) Chassis Assembly Exploded View
e-revo-6s-brushless-56086-4-old
